CTCDRH74BF-101M datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CTCDRH74BF-101M

CTCDRH74BF-101M: Description1 ELEMENT, 100 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size218KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTCDRH74BF-101M Overview

1 ELEMENT, 100 uH, GENERAL PURPOSE INDUCTOR, SMD

CTCDRH74BF-101M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	0.61 Ω
Nominal inductance(L)	100 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CTCDRH74B
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	0.6 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

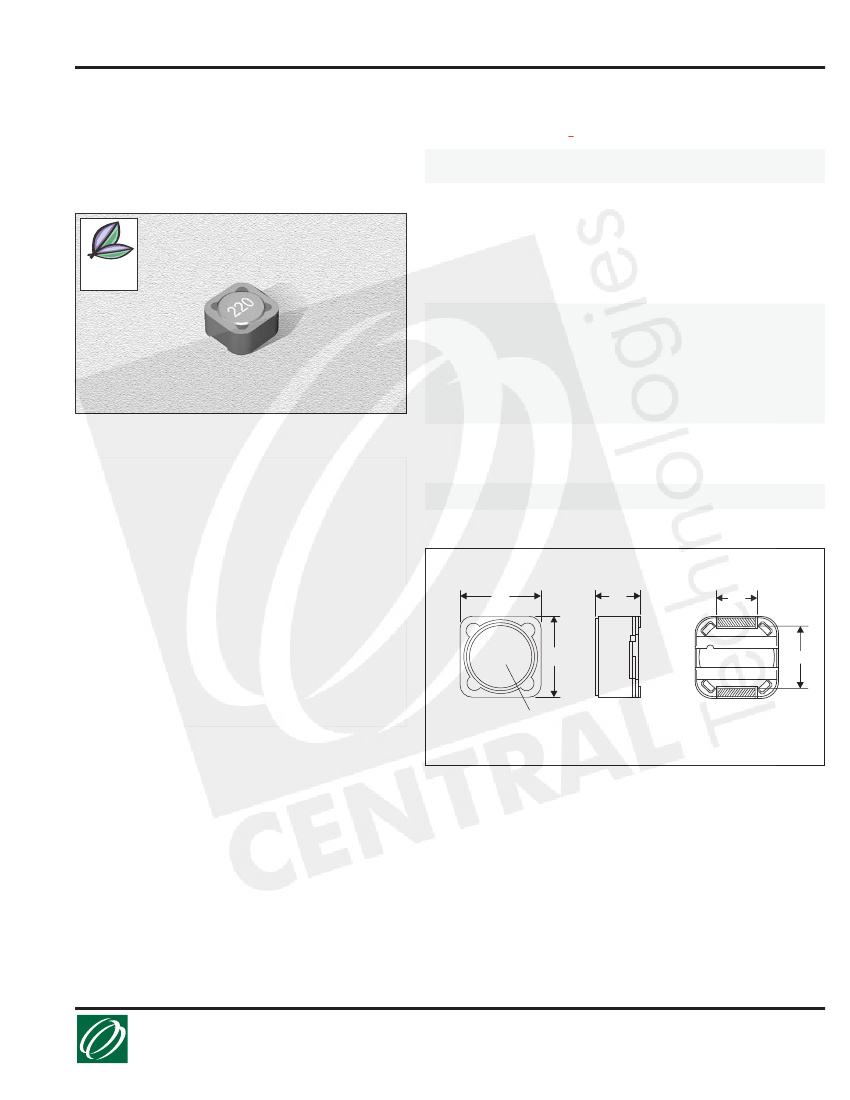

Power Inductors - Shielded

ctparts.com

CTCDRH74B Series

From 10 µH to 1,000 µH

Part

Number

CTCDRH74B_-100M

CTCDRH74B_-120M

CTCDRH74B_-150M

CTCDRH74B_-180M

CTCDRH74B_-220M

CTCDRH74B_-270M

CTCDRH74B_-330M

CTCDRH74B_-390M

CTCDRH74B_-470M

CTCDRH74B_-560M

CTCDRH74B_-680M

CTCDRH74B_-820M

CTCDRH74B_-101M

CTCDRH74B_-121M

CTCDRH74B_-151M

CTCDRH74B_-181M

CTCDRH74B_-221M

CTCDRH74B_-271M

CTCDRH74B_-331M

CTCDRH74B_-391M

CTCDRH74B_-471M

CTCDRH74B_-561M

CTCDRH74B_-681M

CTCDRH74B_-821M

CTCDRH74B_-102M

Not shown at actual size.

SPECIFICATIONS

Parts are available in ±20% tolerance only.

CTCDRH74BF

Please specify “F” for RoHS compliant

L Test

Freq.

(kHz)

1.0

DCR

Max.

Ω

(Ω)

.05

.06

.08

.09

.11

.15

.17

.23

.26

.35

.38

.43

.61

.66

.88

.98

1.2

1.6

1.9

2.9

3.0

3.6

4.6

5.2

6.0

IDC

Max.

(A)

1.9

1.7

1.5

1.3

1.2

1.1

.96

.91

.88

.75

.69

.61

.60

.52

.46

.42

.36

.34

.32

.29

.26

.23

.22

.20

.18

Inductance

(µH)

100

120

150

180

220

270

330

390

470

560

680

820

1000

Compliant

Available

RoHS

CHARACTERISTICS

Description:

SMD (shielded) power inductor

Applications:

Power supplies for VTR, OA equipment, LCD

televisions, PC notebooks, portable communication equipment,

DC/DC converters, etc.

Operating Temperature:

-40°C to +85°C

Inductance Tolerance:

±20%

Testing:

Inductance is tested on an HP4284A at 1.0 kHz

Packaging:

Tape & Reel

Marking:

Parts are marked with inductance code

Miscellaneous:

RoHS Compliant available.

Magnetically shielded

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

PHYSICAL DIMENSIONS

Size

inches

Max.

7.5

0.3

Max.

7.5

0.3

Max.

4.5

0.18

2.7±0.2

0.11±0.008

5.1±0.2

0.20±0.008

XXX

Marking

(Inductance Code)

01.14.05

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL
