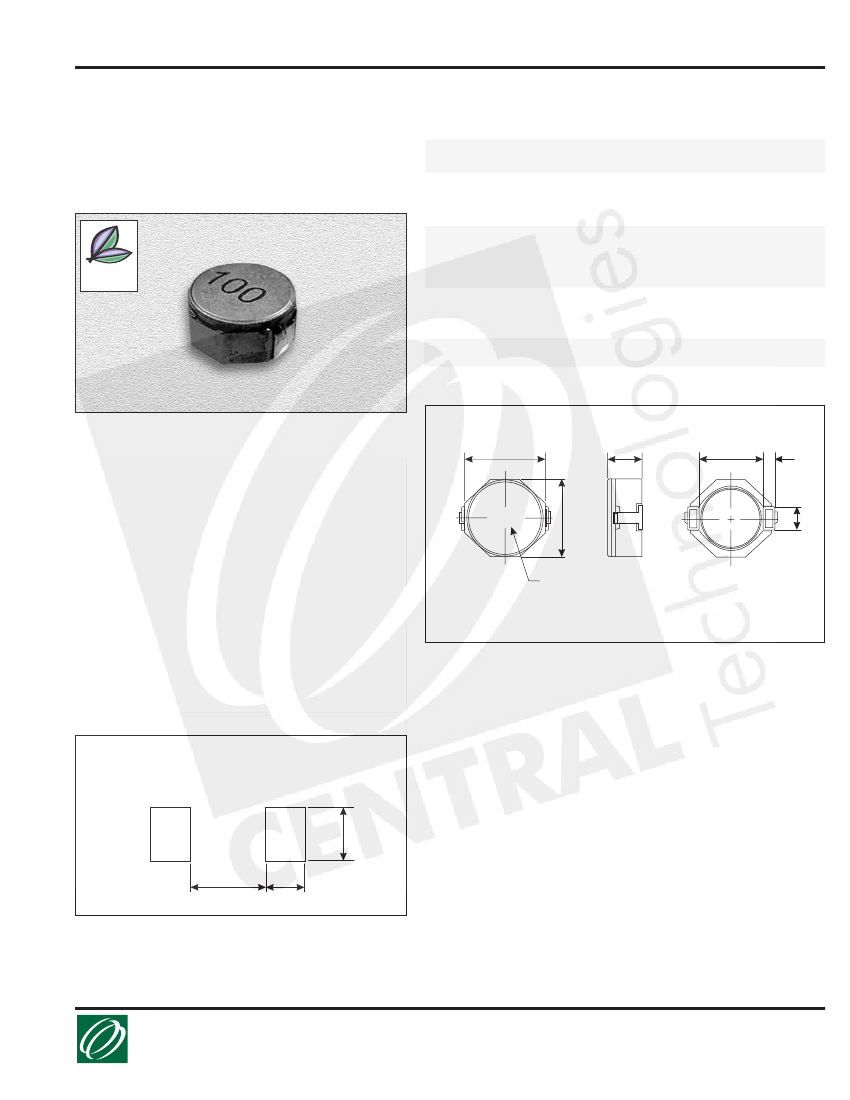

Power Inductors - Shielded
ctparts.com
CTCDRH8D38F Series
From 1.8 µH to 100 µH
Part
Number
CTCDRH8D38F-1R8N
CTCDRH8D38F-2R5N
CTCDRH8D38F-3R5N
CTCDRH8D38F-4R7N
CTCDRH8D38F-6R0N
CTCDRH8D38F-100N
CTCDRH8D38F-150N
CTCDRH8D38F-220N
CTCDRH8D38F-330N
CTCDRH8D38F-470N
CTCDRH8D38F-680N
CTCDRH8D38F-101N
SPECIFICATIONS
Part are available in ±30% inductance tolerance only
Inductance
(µH)
1.8
2.5
3.5
4.7
6.0
10
15
22
33
47
68
100
L Test
Freq.
(kHz)
100
100
100
100
100
100
100
100
100
100
100
100
DCR
Max.
Ω
(mΩ)
15.6
17.5
24.0
29.0
32.0
48.0
67.0
105
157
189
290
410
Rated DC
Current
(A)
7.00
6.50
5.00
4.60
4.20
3.00
2.75
2.30
1.75
1.52
1.30
1.05
Not shown at actual size.
Compliant
RoHS
PHYSICAL DIMENSIONS
Size
mm
inches
A
Max.
8.3
0.327
B
Max.
8.3
0.327
C
Max.
4.0
0.157
D
Ref.
5.8
0.228
E
Ref.
2.5
0.098
F
Ref.
1.2
0.047
CHARACTERISTICS
Description:
SMD (shielded) power inductor
Applications:
Power supplies for VTR, OA equipment, LCD
televisions, PC notebooks, portable communication equipment,
DC/DC converters, etc.
Operating Temperature:
-40°C to +85°C
Storage Temperature:
-40°C to +125°C
Rated DC Current:
Indicates the current when the inductance
decreases to 35% from it’s value without current
Inductance Tolerance:
±30%
Testing:
Tested on a HP4285A at 100 KHz , 0.1Vrms , 0Adc
Packaging:
Tape & Reel
Marking:
Parts are marked with inductance code
Miscellaneous:
RoHS Compliant available
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.
A
C
D
E
XXX
B
F
Marking: Inductance code
PAD LAYOUT
Unit: mm
6.1
2.0
2.8
01.16.08
Technologies
Manufacturer of Passive and Discrete Semiconductor Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2008 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
