R82DC4100CK6-J: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 63V, 1uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size375KB，5 Pages; ManufacturerNissei Electric Co.,Ltd.

Download Datasheet Parametric View All

R82DC4100CK6-J Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 63V, 1uF, THROUGH HOLE MOUNT, RADIAL LEADED

R82DC4100CK6-J Parametric

Parameter Name	Attribute value
Maker	Nissei Electric Co.,Ltd.
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	1 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 14 INCH
positive tolerance	5%
Rated (AC) voltage (URac)	40 V
Rated (DC) voltage (URdc)	63 V
surface mount	NO
Terminal surface	TIN
Terminal shape	WIRE

R82DC4100CK6-J Preview

Loose

Taped

MeTAllIZeD POlyeSTeR FIlM CAPACITOR

D.C. MulTIPuRPOSe APPlICATIONS

MKT Series

R82

Typical applications:

by-passing, blocking, coupling,

decoupling, timing, oscillator circuits.

For inverter applications please refer to RSB Series.

All dimensions are in mm.

Ød ±0.05

≤6

0.5

0.6

PRoDUCT CoDe:

R82

Pitch Box thickness (B)

(mm)

5.0

<4.5

p = 5mm

Maximum dimensions (mm)

B max

H max

L max

B +0.1

H +0.1

L +0.2

L +0.3

≥

4.5

geNeRAl TeChNICAl DATA

Dielectric:

polyester film (polyethylene terephthalate).

The part number, comprising 14 digits, is formed as follows:

Plates:

aluminium layer deposited by evaporation under

1 2 3

6 7 8 9 10 11 12 13 14

vacuum.

Winding:

non-inductive type.

R 8 2

leads:

tinned wire.

Protection:

plastic case, thermosetting resin filled.

Digit 1 to 3

Series code.

Box material is solvent resistant and flame

Digit 4

d.c. rated voltage:

retardant according to UL94.

C = 50V

D = 63V e = 100V

Marking:

Capacitance, tolerance, D.C. rated voltage.

I =250V M = 400V

Climatic category:

55/105/56 IeC 60068-1

Digit 5

Pitch: C = 5 mm

Operating temperature range:

-55 to +105°C

Digit 6 to 9

Digits 7 - 8 - 9 indicate the first three digits of

Related documents:

IeC 60384-2

Capacitance value and the 6th digit indicates

the number of zeros that must be added to

obtain the Rated Capacitance in pF.

Digit 10 to 11 Mechanical version and/or packaging (table1)

Digit 12

Identifies the dimensions and electrical

characteristics.

Digit 13

Internal use

Digit 14

Capacitance tolerance:

J=5%; K=10%; M=20%.

PRODuCT CODe SySTeM

Table 1 (for more detailed information, please refer to page

14).

Standard

packaging style

AMMo-PACK

Reel Ø 355 mm

Loose, short leads

Loose, long leads

+1.5

+1/-2

lead length

(mm)

Winding scheme

Ordering code

(Digit 10 to 11)

single sided metallized

polyester film

09/2008

a) STACKeD version

b) WOuND version

Rated

Cap.

2.2 µF

3.3 µF

4.7 µF

6.0

50Vdc/30Vac

Std dimensions

11.0

7.2

5.0

Max

dv/dt

(V/µs)

100

Max K

/µs)

10.0 e3

2.5 e3

R82CC 4220

R82CC 4330

R82CC 4470

Part Number

MeTAllIZeD POlyeSTeR FIlM CAPACITOR

D.C. MulTIPuRPOSe APPlICATIONS

p = 5 mm

PRoDUCT CoDe:

R82

MKT Series

R82

7.2 13.0 7.2

Mechanical version and packaging (Table1)

Internal use

Tolerance: J (±5%); K (±10%); M (±20%)

STACKeD version

Rated

Cap.

0.10 µF

0.15 µF

0.22 µF

0.33 µF

0.47 µF

0.68 µF

1.0 µF

1.5 µF

Rated

Cap.

1000 pF

1500 pF

2200 pF

3300 pF

4700 pF

6800 pF

0.010 µF

0.015 µF

0.022 µF

0.033 µF

0.047 µF

0.068 µF

0.10 µF

0.15 µF

0.22 µF

0.33 µF

0.47 µF

0.68 µF

1.0

µF

2.5

3.5

4.5

5.0

6.0

2.5

3.5

4.5

63Vdc/40Vac

Std dimensions

6.5

7.5

9.5

7.2

5.0

Max

dv/dt

(V/µs)

160

Max

dv/dt

5.0

(V/µs)

200

Max K

µs)

20 e3

Max K

/µs)

40 e3

R82eC 1100

R82eC 1150

R82eC 1220

R82eC 1330

R82eC 1470

R82eC 1680

R82eC 2100

R82eC 2150

R82eC 2220

R82eC 2330

R82eC 2470

R82eC 2680

R82eC 3100

R82eC 3150

R82eC 3220

R82eC 3330

R82eC 3470

R82eC 3680

R82eC 4100

Part Number

Rated

Cap.

250Vdc/140Vac

ReDuCeD SIZeS

Std dimensions

0.022 µF 2.5 6.5 7.2 5.0

0.047 µF 3.5 7.5 7.2 5.0

0.068 µF 3.5

0.10 µF 4.5

7.5

9.5

7.2

5.0

Max

dv/dt

(V/µs)

130

Max

dv/dt

(V/µs)

250

Max

dv/dt

(V/µs)

200

Max

dv/dt

(V/µs)

400

Max K

Part Number

R82DC 3100

R82DC 3150

R82DC 3220

R82DC 3330

R82DC 3470

R82DC 3680

R82DC 4100

R82DC 4150

Part Number

/µs)

65 e3 R82IC 2220--6--

65 e3

Max K

/µs)

125 e3

Max K

µs)

160 e3

Max K

µs)

320 e3

R82MC1100

R82MC1150

R82MC1220

R82MC1680

R82MC2150

R82MC2330

R82IC 2470--6--

R82IC 2680--6--

R82IC 3100--6--

R82IC 3150--6--

R82IC 3220--6--

Part Number

5.0 10.0

6.0 11.0

0.15 µF 5.0 10.0

0.22 µF 6.0 11.0

Rated

Cap.

6800 pF

0.010 µF

0.015 µF

0.022 µF

0.033 µF

0.047 µF

0.068 µF

0.10 µF

0.15 µF

Rated

Cap.

100Vdc/63Vac

Std dimensions

6.5

7.5

9.5

10.0

11.0

7.2

250Vdc/160Vac

Std dimensions

2.5 6.5 7.2 5.0

2.5

3.5

4.5

6.5

7.5

9.5

7.2

5.0

R82IC 1680

R82IC 2100

R82IC 2150

R82IC 2220

R82IC 2330

R82IC 2470

R82IC 2680

R82IC 3100

R82IC 3150

Part Number

5.0 10.0

6.0 11.0

400Vdc/160Vac

ReDuCeD SIZeS

Std dimensions

2.5

3.5

4.5

6.5

7.5

9.5

7.2

5.0

6800 pF

0.015 µF

0.033 µF

0.047 µF

0.068 µF

Rated

Cap.

1000 pF

1500 pF

2200 pF

3300 pF

4700 pF

6800 pF

5.0 10.0

6.0 11.0

R82MC2470

R82MC2680

Part Number

400Vdc/200Vac

Std dimensions

2.5

3.5

6.5

7.5

7.2

5.0

Mechanical version and packaging (Table1)

Internal use

Tolerance: J (±5%); K (±10%); M (±20%)

All dimensions are in mm.

R82MC1330

R82MC1470

R82MC1680

Note: If the working voltage (V) is lower than the rated

0.010 µF 3.5 7.5 7.2 5.0

400

320 e3

voltage (V

), the capacitor may work at higher dv/dt.

0.015 µF 4.5 9.5 7.2 5.0

400

320 e3

In this case the maximum value allowed is obtained

0.022 µF 4.5 9.5 7.2 5.0

400

320 e3

multiplying the above value (see table dv/dt) with the

0.033 µF 5.0 10.0 7.2 5.0

400

320 e3

ratio V

/V.

0.047 µF 6.0 11.0 7.2 5.0

400

320 e3

The pulse characteristic K

depends on the voltage

wave-form and in any case it cannot overcome the

Mechanical version and packaging (Table1)

Internal use

value given in the above table.

Tolerance: J (±5%); K (±10%); M (±20%)

R82MC2100

R82MC2150

R82MC2220

R82MC2330

R82MC2470

09/2008

MeTAllIZeD POlyeSTeR FIlM CAPACITOR

D.C. MulTIPuRPOSe APPlICATIONS

p = 5 mm

PRoDUCT CoDe:

R82

MKT Series

R82

eleCTRICAl ChARACTeRISTICS

Rated voltage (V

Rated temperature (T

50 Vdc

250 Vdc

+85 °C

63 Vdc

400 Vdc

100 Vdc

TeST MeThOD AND PeRFORMANCe

Damp heat, steady state:

Test conditions

Temperature:

Relative humidity (RH):

Test duration:

Performance

Capacitance change |∆C/C|:

DF change (∆tgδ):

Insulation resistance:

Temperature derated voltage:

for temperatures between +85°C and +105°C a decreasing

factor of 1.25% per degree °C on the rated voltage V

(d.c.

and a.c.) has to be applied.

1000pF to 4.7µF

Capacitance range:

Capacitance values:

e6 series (IeC 60063 Norm).

Capacitance tolerances (measured at 1 khz):

±5% (J); ±10% (K); ±20% (M).

Total self-inductance (l):

≈7nH

max 1 nH per 1 mm lead and capacitor length.

Dissipation factor (DF):

tgδ 10

-4

at +25°C ±5°C

kHz

100

≤

0.1µF

C > 0.1µF

+40°C±2°C

93% ±2%

56 days

≤ 5%

≤ 50x10

-4

at 1kHz

≥ 50% of initial limit.

≤

120

≤

250

≤

120

endurance:

Test conditions

Temperature:

+105°C ±2°C

Test duration:

2000 h

Voltage applied:

1.25xV

Performance

Capacitance change |∆C/C|: ≤ 5%

DF change (∆tgδ): ≤ 30x10

-4

at 10kHz for C≤1µF

for C>1µF

≤ 20x10

-4

at 1kHz

Insulation resistance:

≥50% of initial limit.

Resistance to soldering heat:

Test conditions

Solder bath temperature:

+260°C±5°C

Dipping time (with heat screen):10 s ±1 s

Performance

Capacitance change |∆C/C|: ≤2%

DF change (∆tgδ): ≤ 30x10

-4

at 10kHz for C≤ 1µF

≤ 20x10

-4

at 1kHz for C> 1µF

Insulation resistance:

≥ initial limit.

long term stability

(after two years):

Storage:

standard environmental conditions (see page

12).

Performance

Capacitance change |∆C/C|: ≤ 3% for C≤ 0.1µF

≤ 2% for C> 0.1µF

RelIABIlITy:

Reference MIL HDB 217

Application conditions:

Temperature:

+40°C±2°C

Voltage:

0.5xV

Failure rate:

≤ 1 FIT

(1 FIT = 1x10

-9

failures/components x h)

Failure criteria:

(according to DIN 44122)

Short or open circuit

Capacitance change |∆C/C|: > 10%

DF change (∆tgδ):

> 2 x initial limit.

Insulation resistance:

< 0.005 x initial limit.

Insulation resistance:

Test conditions

Temperature:

Voltage charge time:

Voltage charge:

+25°C±5°C

1 min

50 Vdc for V

<100 Vdc

100 Vdc for V

≥100 Vdc

Performance

For V

≤100 Vdc

≥ 15000 MΩ for C ≤ 0.33µF

≥ 5000 s

for C > 0.33µF

and

≤1µF

≥ 1000 s

for C > 1µF

For V

>100 Vdc

≥ 30000 MΩ

*Typical

value

Test voltage between terminations:

1.4xV

applied for 2 s at +25°C±5°C.

09/2008

MeTAllIZeD POlyeSTeR FIlM CAPACITOR

D.C. MulTIPuRPOSe APPlICATIONS

p = 5 mm

PRoDUCT CoDe:

R82

MKT Series

R82

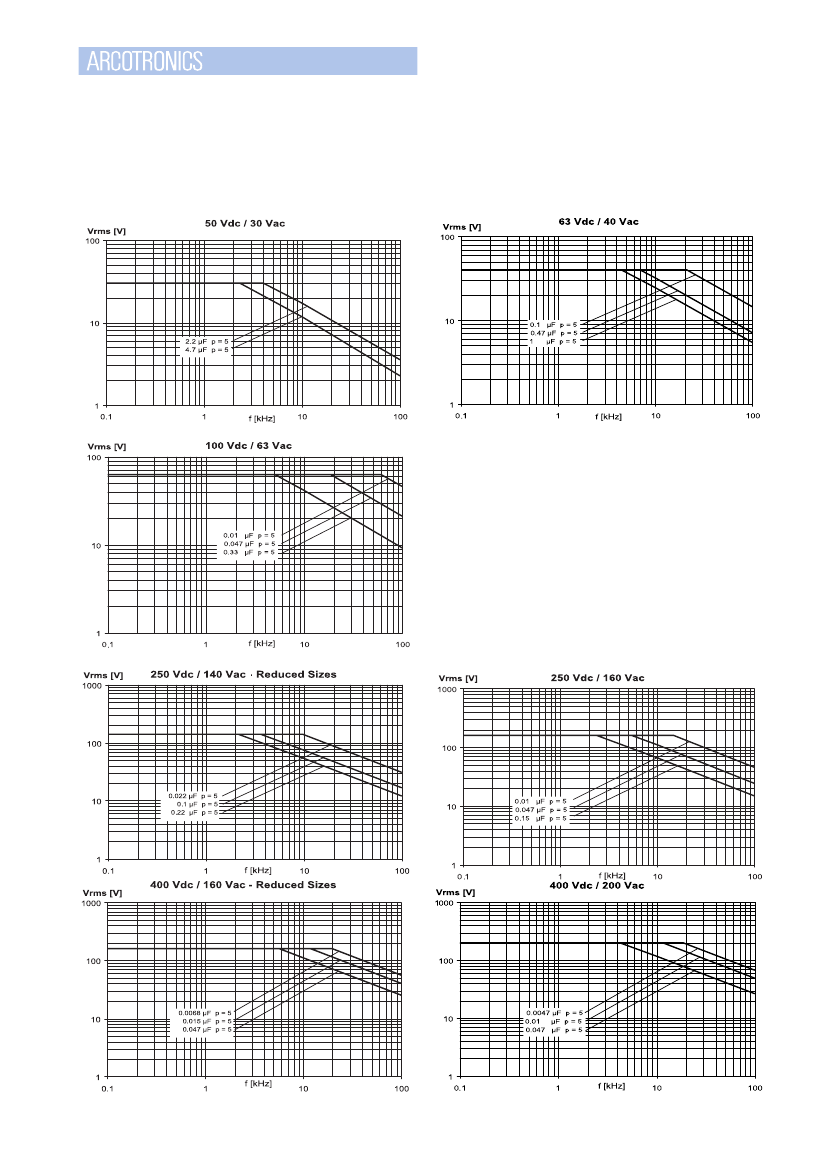

MAX. VoLTAGe (Vr.m.s.) VeRSUS FReQUeNCY (sinusoidal wave-form / Th

≤

40°C)

09/2008

MeTAllIZeD POlyeSTeR FIlM CAPACITOR

D.C. MulTIPuRPOSe APPlICATIONS

p = 5 mm

PRoDUCT CoDe:

R82

MKT Series

R82

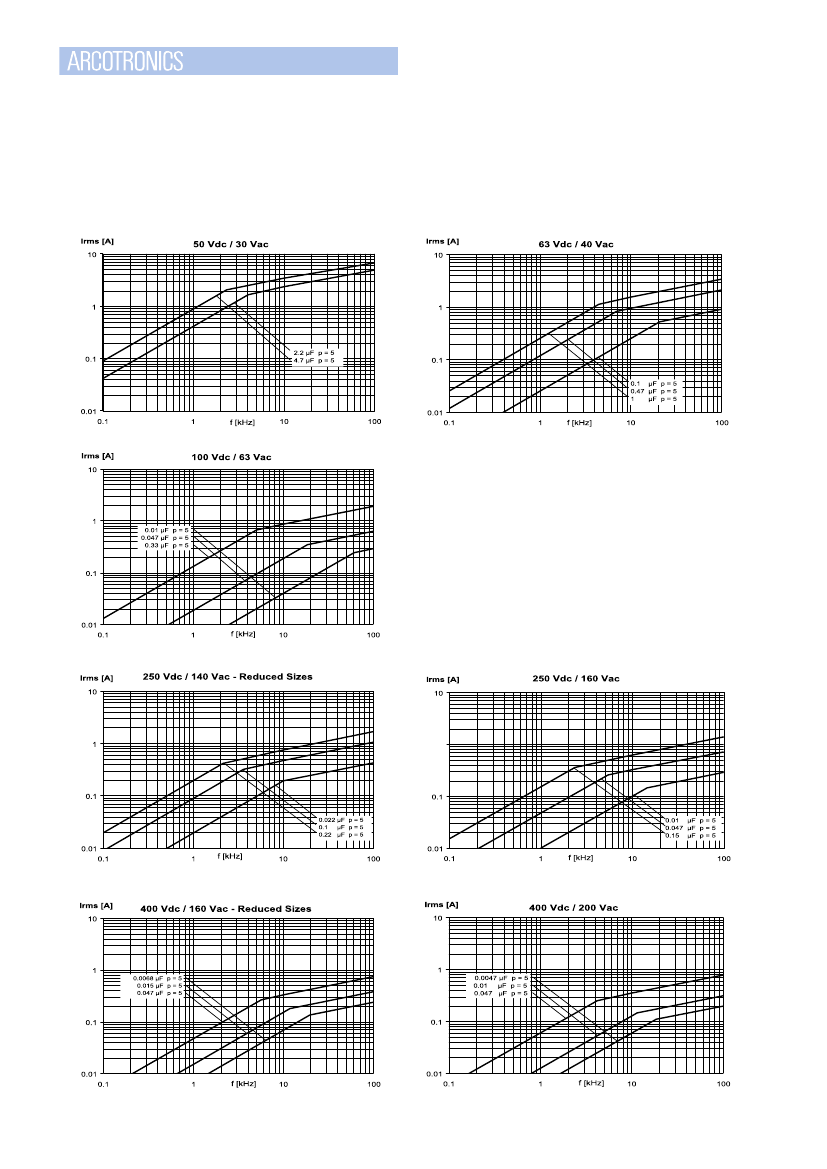

MAX. CURReNT (Ir.m.s.) VeRSUS FReQUeNCY (sinusoidal wave-form / Th

≤

40°C)

09/2008

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Simple and practical elevator power outage alarm circuit diagram

Portable device charging power circuit design

Xidao brand LBL-238, LBL-330, (UKS26), (UKS36) refrigerator circuit

M708 (TV) infrared remote control transmitter circuit

High current three-phase asynchronous motor Y conversion energy-saving control circuit_3

NEMOTO NAP-55A gas sensor application circuit

Is the current from the inverter to the motor self-generated?: Because the inverter drives the motor, the motor output shaft heats up, and the temperature of the output shaft is much higher than the temperature of the shell. I asked the seniors on the forum, and ...; eeleader Industrial Control Electronics

Excellent courseware for "51 MCU Easy to Get Started - Based on STC15W4K Series": [i=s]This post was last edited by Wuliangshoujing on 2016-2-20 16:12[/i] [size=3]"Easy to get started with 51 MCU - based on STC15W4K series" textbook supporting courseware. [/size][size=3][color=#ff0...; 无量寿经 51mcu

I lit a fire, let the forum friends discard the out method, and started to use the firmware library function to develop MSP430: [i=s]This post was last edited by Pinghu Qiuyue on 2014-1-22 21:32[/i] I am looking for someone to translate the 400+ firmware library functions of MSPF5XXX/F6XXX. When I have some idea about it, I wi...; 平湖秋月 Microcontroller MCU

Fellow countrymen and overseas Chinese, please help us!!!: [align=center][align=center][b][font=宋体][size=16pt]Wireless Transmission System (Question A)[/size][/font][/b][/align][/align][align=center][align=center][font=Times New Roman][b][font=华文中宋][size=14pt...; wzz0917 RF/Wirelessly

Several commonly used components for protecting mobile phone battery circuits: [i=s]This post was last edited by qwqwqw2088 on 2018-6-20 08:28[/i] [size=4] The batteries used in mobile phones are all lithium batteries, which may explode at high temperatures. In fact, it has happ...; qwqwqw2088 Analogue and Mixed Signal

Purchase interface conversion: I am looking to buy a board with two TCP/IP (10MPS) interfaces and one CAN (1MPS) interface (preferably one RS232). The chip on the board (preferably a more popular chip such as ARM, DSP, etc.) has th...; zzfff Embedded System

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
