OM5221SA/RA/DA OM5223SA/RA/DA OM5225SA/RA/DA
OM5222SA/RA/DA OM5224SA/RA/DA OM5226SA/RA/DA
HERMETIC JEDEC TO-254AA HIGH EFFICIENCY,
CENTER-TAP RECTIFIER
24 Amp, 50 To 600 Volts, 35 To 50 nsec
FEATURES
•
•
•
•
•
•
•
•
Very Low Forward Voltage
Very Fast Switching Speed
Hermetic Metal Package, JEDEC TO-254AA
High Surge
Small Size
Isolated Package
Ceramic Feedthroughs Available
Available Screened To MIL-S-19500, TX, TXV And S Levels
DESCRIPTION
This series of products in a hermetic package is specifically designed for use at
power switching frequencies in excess of 100 kHz. The series combines two high
efficiency devices into one package, simplifying installation, reducing heat sink
hardware, and the need to obtain matched components. These devices are ideally
suited for Hi-Rel applications where small size and a hermetically sealed package
is required.
ABSOLUTE MAXIMUM RATINGS
(Per Diode) @ 25°C
Peak Inverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 to 600 V
Maximum Average D.C. Output Current @ T
C
= 100° C . . . . . . . . . . . . . . . . . . . 12 A
Non-Repetitive Sinusoidal Surge Current 8.3 ms . . . . . . . . . . . . . . . . . . . . . . . . 100 A
Operating and Storage Temperature Range . . . . . . . . . . . . . . . . . - 55° C to + 150° C
Z
3.2
SCHEMATIC
2
COMMON
ANODE
1
MECHANICAL OUTLINE
.545
.535
1
2
COMMON
CATHODE
OMXXXXSA
.144 DIA.
.050
.040
3
OMXXXXRA
3
3
DOUBLER
1
2
OMXXXXDA
.685
.665
.800
.790
.550
.530
1 2
3
.550
.510
Common cathode is standard. Contact the factory for performance
characteristics for common anode and doubler.
Standard Products are supplied with glass feedthroughs.
For ceramic feedthroughs, add the letter “C” to the part number.
Example - OMXXXXCSA.
Z-Tab package also available.
.005
.045
.035
.150 TYP.
.260
.249
.150 TYP.
4 11 R2
Supersedes 1 07 R1
3.2 - 51
OM5221SA/RA/DA - OM5226SA/RA/DA
ELECTRICAL CHARACTERISTICS
(Per Diode)
Type
PIV
Maximum
Forward Voltage
(Volts) @
(1)
T
j
= 25° C
T
j
= 100° C
Maximum
Reverse Current
@ PIV
T
j
= 25° C T
j
= 100° C
20 µA
1.0 mA
Maximum
Reverse
Recovery
Time
(2)
Maximum
Thermal
Resist.
q
Rq
JC
OM5221XX
OM5222XX
OM5223XX
OM5224XX
OM5225XX
OM5226XX
50
100
1.05V @ 12A 0.98V @ 12A
150
200
400 1.35V @ 12A 1.15V @ 12A
600 1.6V @ 12A 1.4V @ 12A
35 nsec
2.0
20 µA
20 µA
1.0 mA
2.0 mA
50 nsec
50 nsec
1.8
(1) Pulse Test:
Pulse Width = 300µs, Duty Cycle 2.0%.
(2) Measured in Circuit:
I
F
= 0.5 A, I
R
= 1.0 A, I
REC
= 0.25 A

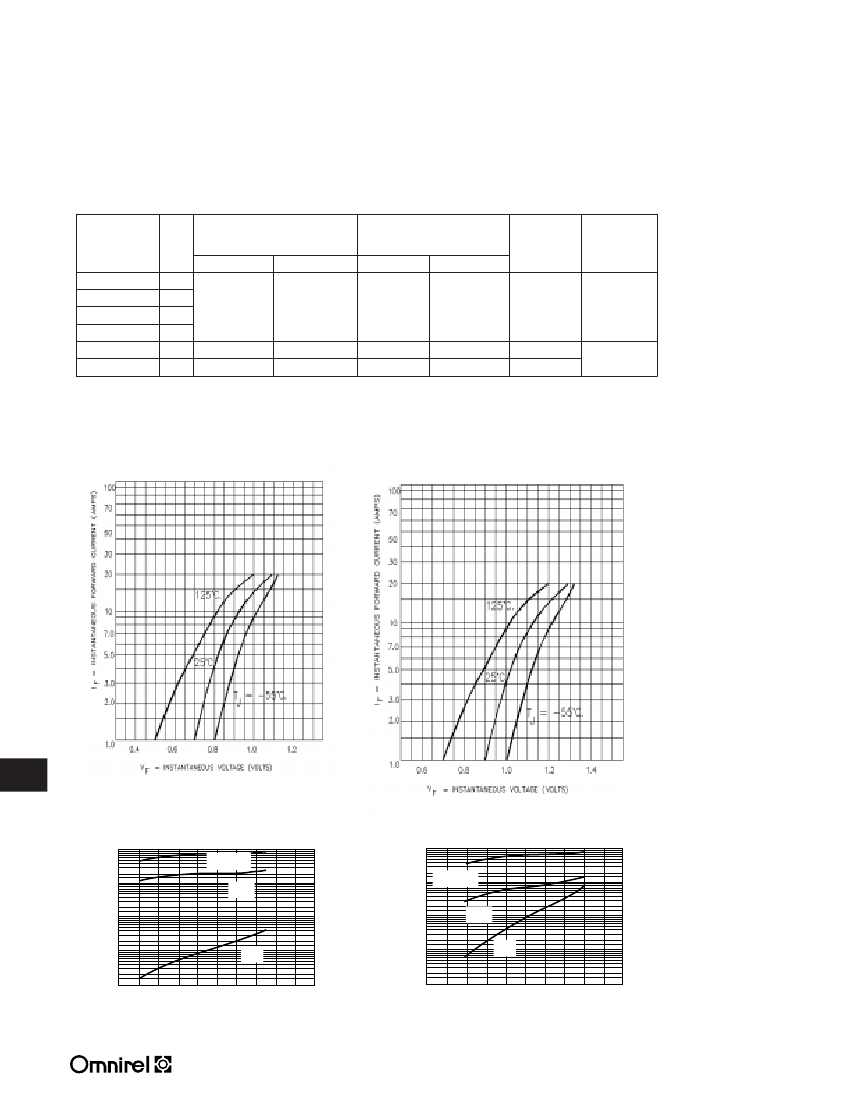

50 V TO 200 V
TYPICAL FORWARD VOLTAGE
OM5221, 5222, 5223, 5224
400 V
TYPICAL FORWARD VOLTAGE
OM5225
3.2
TYPICAL REVERSE CURRENT
OM5221, 5222, 5223, 5224
I
R
= REVERSE CURRENT (µA)
I
R
= REVERSE CURRENT (µA)
100
50
20
10
5.0
2.0
1.0
0.5
0.2
0.1
0.05
0.02
0.01
0
20
40
60
80
100 120 140 160 180 200
TYPICAL REVERSE CURRENT
OM5225
100
50
20
10
5.0
2.0
1.0
0.5
0.2
0.1
0.05
0.02
0.01
0
50
100
150 200 250 300 350 400 450 500
T
J
= 150°C
100°C
T
J
= 150°C
100°C
25°C
25°C
V
R
= REVERSE VOLTAGE (VOLTS)
V
R
= REVERSE VOLTAGE (VOLTS)
205 Crawford Street, Leominster, MA 01453 USA (508) 534-5776 FAX (508) 537-4246
