CTDD2007S-1212D-2 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> CTDD2007S-1212D-2

CTDD2007S-1212D-2: Description2-OUTPUT 2 W DC-DC UNREG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size74KB，2 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CTDD2007S-1212D-2 Overview

2-OUTPUT 2 W DC-DC UNREG PWR SUPPLY MODULE

CTDD2007S-1212D-2 Parametric

Parameter Name	Attribute value
Maker	CT [ Central Technologies ]
Parts packaging code	MODULE
package instruction	,
Contacts	6/5
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	R-PSMA-T5
Maximum load regulation	15%
Number of functions	1
Output times	2
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum total power output	2 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

DC/DC Converters

ctparts.com

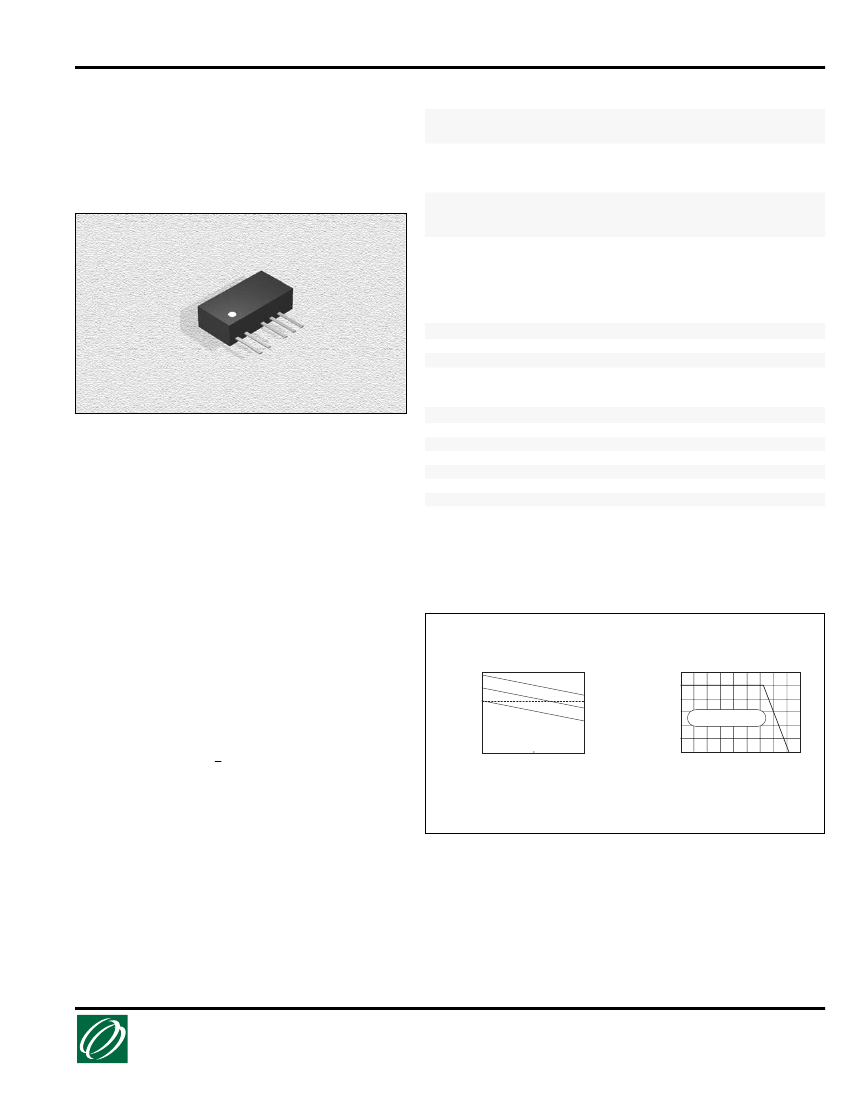

SPECIFICATIONS

CTDD2007S-D Series

Fixed Input Isolated & Unregulated

2W Output, Dual Output

Part

Number

CTDD2007S-0505D-2

CTDD2007S-0509D-2

CTDD2007S-0512D-2

CTDD2007S-0515D-2

CTDD2007S-1205D-2

CTDD2007S-1209D-2

CTDD2007S-1212D-2

CTDD2007S-1215D-2

CTDD2007S-2405D-2

CTDD2007S-2409D-2

CTDD2007S-2412D-2

CTDD2007S-2415D-2

Vin Nom.

5VDC

12VDC

24VDC

Input Range

4.5-5.5VDC

10.8-13.2VDC

21.6-26.4VDC

Vout

5VDC

9VDC

12VDC

15VDC

5VDC

9VDC

12VDC

15VDC

5VDC

9VDC

12VDC

15VDC

Iout

Max.

(mA)

±200

±111

±83

±67

±200

±111

±83

±67

±200

±111

±83

±67

Iout

Min.

(mA)

±20

±12

±9

±7

±20

±12

±9

±7

±20

±12

±9

±7

Effi(Typ.)

78%

79%

80%

79%

80%

82%

80%

81%

82%

Not shown at actual size.

ISOLATION SPECIFICATIONS

Item

Isolation Voltage

Isolation Resistance

Test Condition

Tested for 1 minute

Test at 500VDC

MIN

1000

TYP

MAX

Units

VDC

MΩ

OUTPUT SPECIFICATIONS

Item

2W Output Power

Test Condition

For Vin change of 1%

10% to 100% full load

See tolerance envelope graph

100% full load

20MHz Bandwidth

Full load, nominal input

100

0.03

150

100

%/°C

mVp-p

KHz

MIN

0.2

TYP

MAX

1.2

Units

FEATURES

Efficiency:

To 82%

Temperature Range:

-40°C to 85°C

Isolation:

1KVDC

Power Density:

1.42W/cm

Package:

UL94-V0

Miscellaneous:

No heatsink required. No external component

required. Industry standard pinout. Positive & Negative Voltage

Output. Full 2W output power. Custom service available.

Samples available.

Line regulation

Load regulation

Output voltage accuracy

Temperature drift

2W Output ripple

Switching frequency

Note:

1. All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output load

unless otherwise specified.

TYPICAL CHARACTERISTICS

CHARACTERISTICS

Short Circuit Protection:

1 second

Temperature Rise at Full Load:

25°C Max. 15°C Typ.

Cooling:

Free air convection

Operating Temperature Range:

-40°C to +85°C

Storage Temperature Range:

-55°C to +125°C

Lead Temperature:

300°C (1.5mm from case for 10 seconds)

Storage Humidity Range:

< 95%

Case Material:

Plastic (UL94-V0)

MTBF:

>1,000,000 hours

Tolerance Envelope Graph

Temperature Derating Graph

Typic

l Load

Line

+2.5%

-2.5%

-7.5%

Output Power(%)

Output Voltage(%)

+10%

+5%

Nominal

Voltage

120

100

10%

50%

100%

-40

Safe Operating Area

120

Output Current(%)

Ambient Temperature(°C)

02.10.05

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL
