DC/DC Converters
ctparts.com

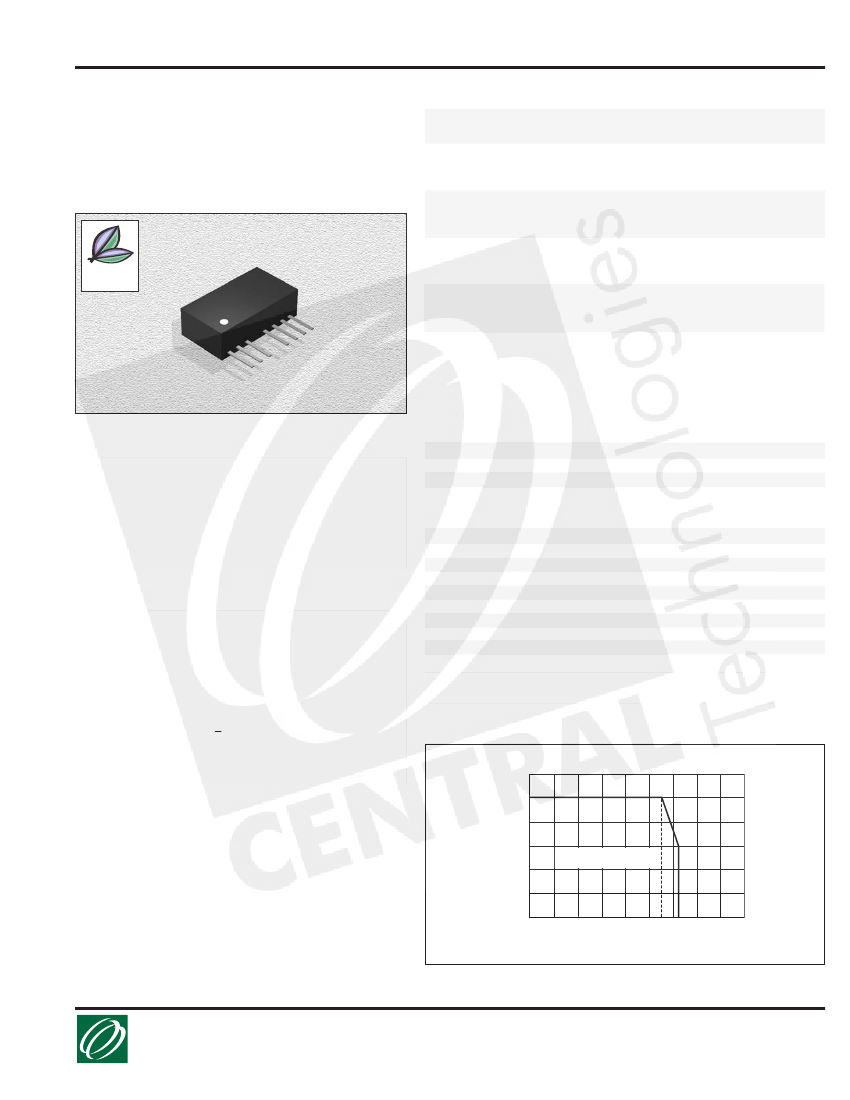

SPECIFICATIONS
CTDD2210SF-S1.5K-1 Series
Wide Input Isolated & Regulated
1W Output, Single Output
Part
Number
CTDD2210SF-0505-S1.5K-1
CTDD2210SF-0509-S1.5K-1
CTDD2210SF-0512-S1.5K-1
CTDD2210SF-0515-S1.5K-1
CTDD2210SF-1205-S1.5K-1
CTDD2210SF-1209-S1.5K-1
CTDD2210SF-1212-S1.5K-1
CTDD2210SF-1215-S1.5K-1
CTDD2210SF-1505-S1.5K-1
CTDD2210SF-1509-S1.5K-1
CTDD2210SF-1512-S1.5K-1
CTDD2210SF-1515-S1.5K-1
CTDD2210SF-2405-S1.5K-1
CTDD2210SF-2409-S1.5K-1
CTDD2210SF-2412-S1.5K-1
CTDD2210SF-2415-S1.5K-1
CTDD2210SF-4805-S1.5K-1
CTDD2210SF-4809-S1.5K-1
CTDD2210SF-4812-S1.5K-1
CTDD2210SF-4815-S1.5K-1
Vin
Nom.
(VDC)
5
5
5
5
12
12
12
12
15
15
15
15
24
24
24
24
48
48
48
48
Input Range
(VDC)
4.5-9
4.5-9
4.5-9
4.5-9
9-18
9-18
9-18
9-18
12-24
12-24
12-24
12-24
18-36
18-36
18-36
18-36
36-72
36-72
36-72
36-72
Vin
Max.*
(VDC)
11
11
11
11
22
22
22
22
30
30
30
30
40
40
40
40
80
80
80
80
Vout
(VDC)
5
9
12
15
5
9
12
15
5
9
12
15
5
9
12
15
5
9
12
15
Iout
Max.
(mA)
200
110
84
66
200
110
84
66
200
110
84
66
200
110
84
66
200
110
84
66
Iout
Min.
(mA)
20
11
8
6
20
11
8
6
20
11
8
6
20
11
8
6
20
11
8
6
Effi.
Typ.
(%)
71
73
77
78
75
78
77
80
75
79
80
81
75
80
81
81
76
81
82
83
Not shown at actual size.
Compliant
RoHS
*If Input voltage above specified may cause permanent damage to the device.
FEATURES
Efficiency:
To 83%
Temperature Range:
-40°C to +85°C
Package:
UL94-V0
Isolation:
1.5KVDC
Miscellaneous:
Wide (2:1) Input Range. No heat sink required.
Industry standard pinout. Single Output. Remote ON/OFF.
Samples available.
ISOLATION SPECIFICATIONS
Item
Isolation Voltage
Isolation Resistance
Test Condition
Tested for 1 minute
Test at 500VDC
MIN
1500
1000
TYP
MAX
Units
VDC
MΩ
OUTPUT SPECIFICATIONS
Item
1W Output Power
Output voltage accuracy
Load regulation
Line regulation
Temperature drift (Vout)
Ripple
Noise
Switching frequency
Switching frequency
Refer to Recommended Circuit
From 10% to 100% load
Input Voltage from low to high
See tolerance envelope graph
20Hz to 300kHzBandwidth
DC-20MHz Bandwidth
100% load, nominal input voltage
10% load, nominal input voltage
200
700
40
80
Test Condition
MIN
0.1
±1
±0.5
±0.2
TYP
MAX
1
±3
±0.75
±0.5
0.03
60
150
400
1000
Units
W
%
%
%
%/°C
mVp-p
mVp-p
KHz
KHz
CHARACTERISTICS
Output Short Circuit Protection:
Continuous
Temperature Rise at Full Load:
30°C (Typ.)
Cooling:
Free air convection
No Load, Power Consumption:
150mW (typical)
Operating Temperature Range:
-40°C to +85°C
Storage Temperature Range:
-55°C to +125°C
Lead Temperature:
300°C (1.5mm from case for 10 seconds)
Storage Humidity Range:
< 95%
Case Material:
Plastic (UL94-V0)
MTBF:
>1,000,000 hours
Miscellaneous:
RoHS Compliant.
Note:
1. All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output unless
otherwise specified.
TYPICAL CHARACTERISTICS
Temperature Derating Graph
120
Output Power (%)
100
80
60
40
20
0
-40
0
120
40
71 85
Operating Temperature
(°C)
Safe Operating Area
01.05.07
Technologies
Manufacturer of Passive and Discrete Semiconductor Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2006 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
CENTRAL
DC/DC Converters
ctparts.com
CTDD2210SF-S1.5K-1 Series
Wide Input Isolated & Regulated
1W Output, Single Output

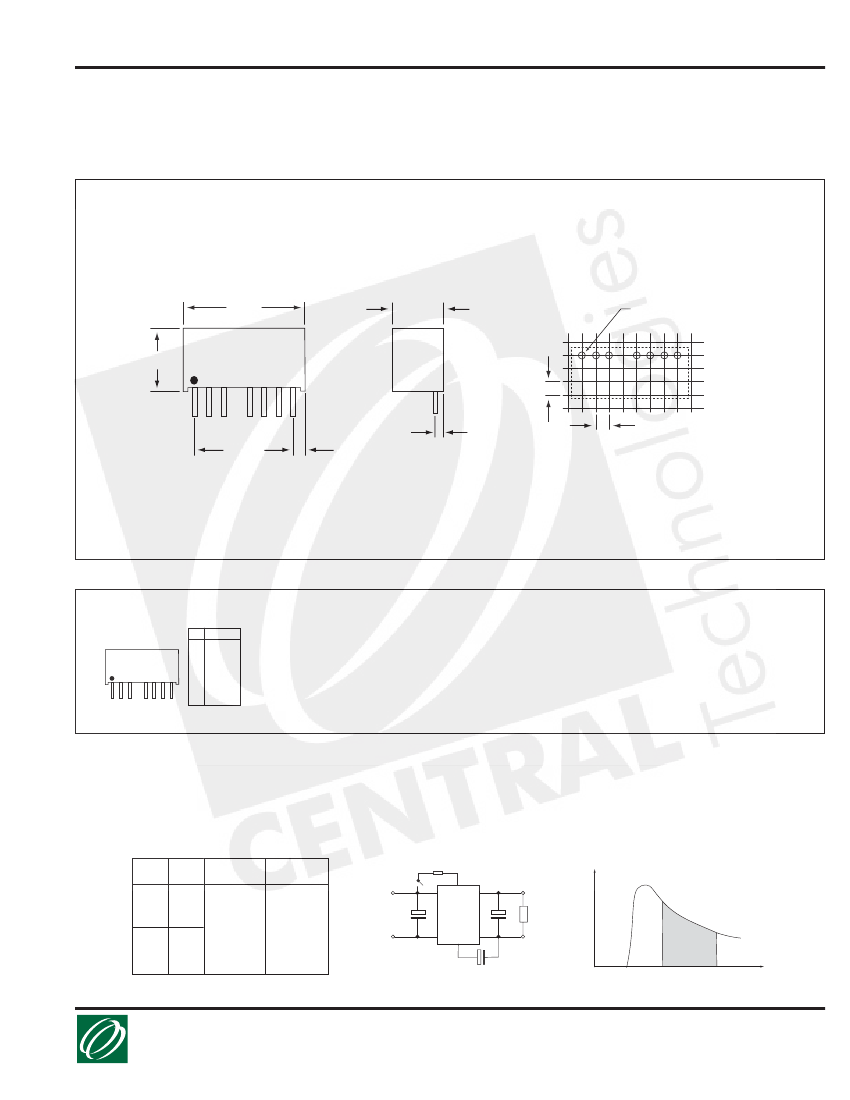

OUTLINE DIMENSIONS & RECOMMENDED FOOTPRINT DETAILS
CTDD2210SF-S1.5K-1 Package
22.00
9.50
2.54
ø1.00+0.15/-0
12.00
1 2
3
5 6 7
8
1.50
2.54
17.78
2.10
Note: All Pins on
a
2.54mm pitch; All Pin diameters
are
0.50mm (Tolerance: ±0.10);
all
dimensions in mm..
PIN CONNECTIONS
CS Pin
By connecting a low ESR capacitor between this terminal and the pin-7 (connection to the anode of the capacitor),
the output ripple and noise may be further improved. Generally, the capacitance is no greater than 100µF.
CTRL
When open or high impedance, converter work well. When control pin positive referenced to the negative input (equal
to import to earth), converter shutdown. Please note that the input current should be between 5-10mA, exeeding the
maximum 20mA will cause permanent damage to converter.
12
3
567
8
Pin Function
1
GND
2
Vin
3
CTRL
5
NC
6
+Vo
7
OV
8
CS
RECOMMENDED CIRCUIT
All the CTDD2210SF-S1.5K-1
Series
have
been
tested
according
to the following recommended testing circuit
before
leaving factory. This
series should be
tested
under
load. Never
be
tested
under
no load (See figure 1). If you want to further
decrease the input/output ripple, you can increase capacitance properly or choose capacitors with low ESR. However, the
capacitance
should
not
be
too high (See table 1). If you want to
use
the products in high EMI, please choose our metal
packaged products.
External Capacitor Table (table 1)
Vin
5V
&
12V
24V
&
48V
C
in
C
out
(0+70°C)
C
out
(-40+85°C)
+Vin
Figure 1
(5-10mA)
3
2
6
DC-DC
CONVERTER
Cout
GND
1
8
7
0V
Figure 2
lp
100µF
100µF
(electrolytic
capacitor)
47µF
(tantalum
capacitor)
Cin
+
+
Input Current (A)
+Vo
Load
10µF
+
Cs
Input Voltage
Range
Input Voltage (V)
01.05.07
Technologies
Manufacturer of Passive and Discrete Semiconductor Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2006 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
CENTRAL
Power technology
