CTDD3214DF-0512-S6K-2: Description1-OUTPUT 2 W DC-DC UNREG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size243KB，2 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric Compare View All

CTDD3214DF-0512-S6K-2 Overview

1-OUTPUT 2 W DC-DC UNREG PWR SUPPLY MODULE

CTDD3214DF-0512-S6K-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	MODULE
package instruction	,
Contacts	17
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-PDMA-P14
Maximum load regulation	15%
Number of functions	1
Output times	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	2 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

DC/DC Converters

ctparts.com

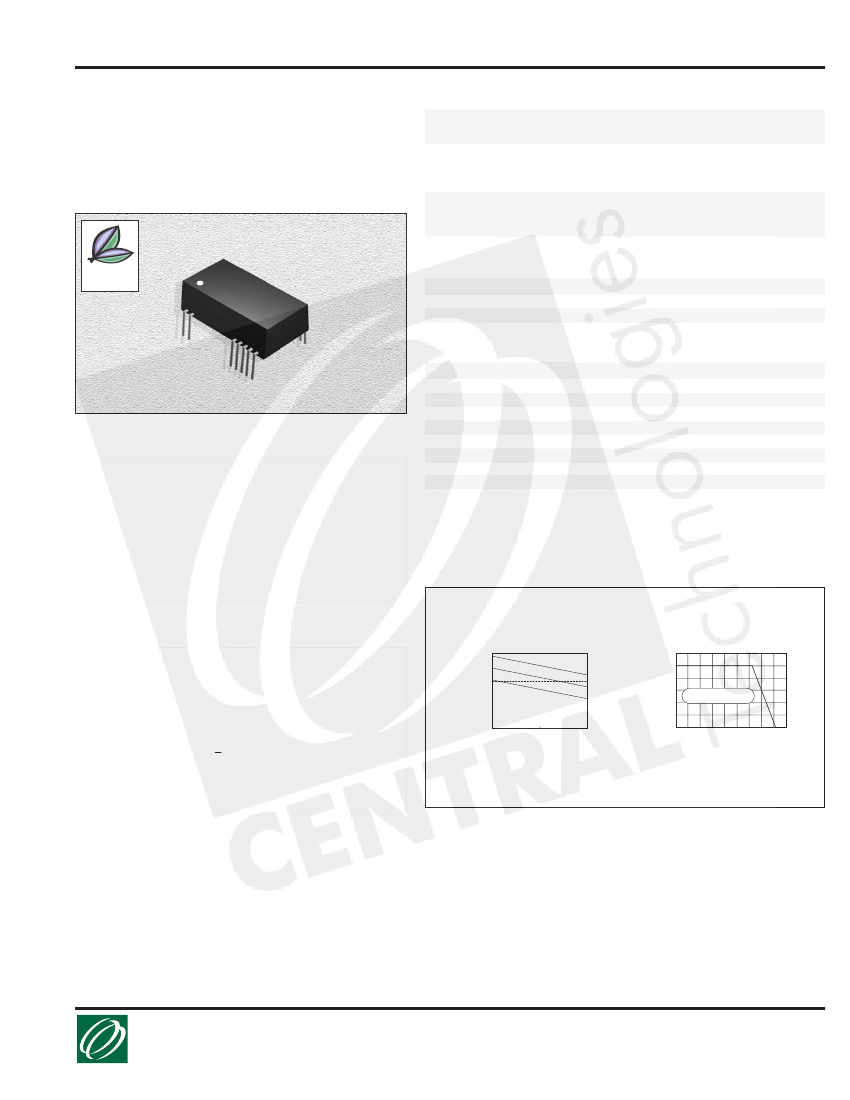

SPECIFICATIONS

CTDD3214DF-S6K-2 Series

Fixed Input Isolated & Unregulated

2W Output, Single Output

Part

Number

CTDD3214DF-0505-S6K-2

CTDD3214DF-0509-S6K-2

CTDD3214DF-0512-S6K-2

CTDD3214DF-0515-S6K-2

CTDD3214DF-1205-S6K-2

CTDD3214DF-1209-S6K-2

CTDD3214DF-1212-S6K-2

CTDD3214DF-1215-S6K-2

Vin

Nom.

(VDC)

5

12

Input Range

(VDC)

4.5-5.5

10.8-13.2

Vout

(VDC)

5

9

12

15

5

9

12

15

Iout

Max.

(mA)

400

222

167

133

400

222

167

133

Iout

Min.

(mA)

40

23

17

14

40

23

17

14

Effi.

Typ.

(%)

78

79

80

79

80

82

Not shown at actual size.

Compliant

RoHS

ISOLATION SPECIFICATIONS

Item

Isolation Voltage

Isolation Resistance

Test Condition

Flash tested for 1 minute

Test at 500VDC

MIN

6000

1000

TYP

MAX

Units

VDC

MΩ

OUTPUT SPECIFICATIONS

Item

2W Output Power

Line regulation

Load regulation

Output voltage accuracy

Efficiency at full load

Temperature drift

2W Output ripple

Switching frequency

Nominal voltage ±1%

10% to 100% (5V output)

10% to 100% (12V output)

100% full load

Nominal input voltage

100% full load

20MHz Bandwidth

Full load, nominal input

100

35

80

0.03

200

Test Condition

MIN

0.2

TYP

MAX

2

±1.2

15

10

See tolerance envelope graph

%

%/°C

mVp-p

KHz

Units

W

%

FEATURES

Efficiency:

To 85%

Temperature Range:

-40°C to 85°C

Isolation:

6KVDC

Package:

UL94-V0

Miscellaneous:

Positive Voltage Output. Small Footprint. No

heat sink required. Fixed Input Voltage. No external component

required. Industry standard pinout. Unregulated output voltage.

Custom service available.

Samples available.

Note:

1. All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output load

unless otherwise specified.

TYPICAL CHARACTERISTICS

CHARACTERISTICS

Short Circuit Protection:

1 second

Temperature Rise at Full Load:

25°C Max. 15°C Typ.

Cooling:

Free air convection

Operating Temperature Range:

-40°C to +85°C

Storage Temperature Range:

-55°C to +125°C

Lead Temperature:

300°C (1.5mm from case for 10 seconds)

Storage Humidity Range:

< 95%

Case Material:

Plastic (UL94-V0)

MTBF:

>3,500,000 hours

Miscellaneous:

RoHS Compliant.

Tolerance Envelope Graph

Temperature Derating Graph

Typic

a

l Load

Line

+2.5%

-2.5%

-7.5%

Output Power(%)

Output Voltage(%)

+10%

+5%

Nominal

Voltage

120

100

80

60

10%

50%

100%

40

20

0

-40

Safe Operating Area

0

40

80

120

Output Current(%)

Ambient Temperature(°C)

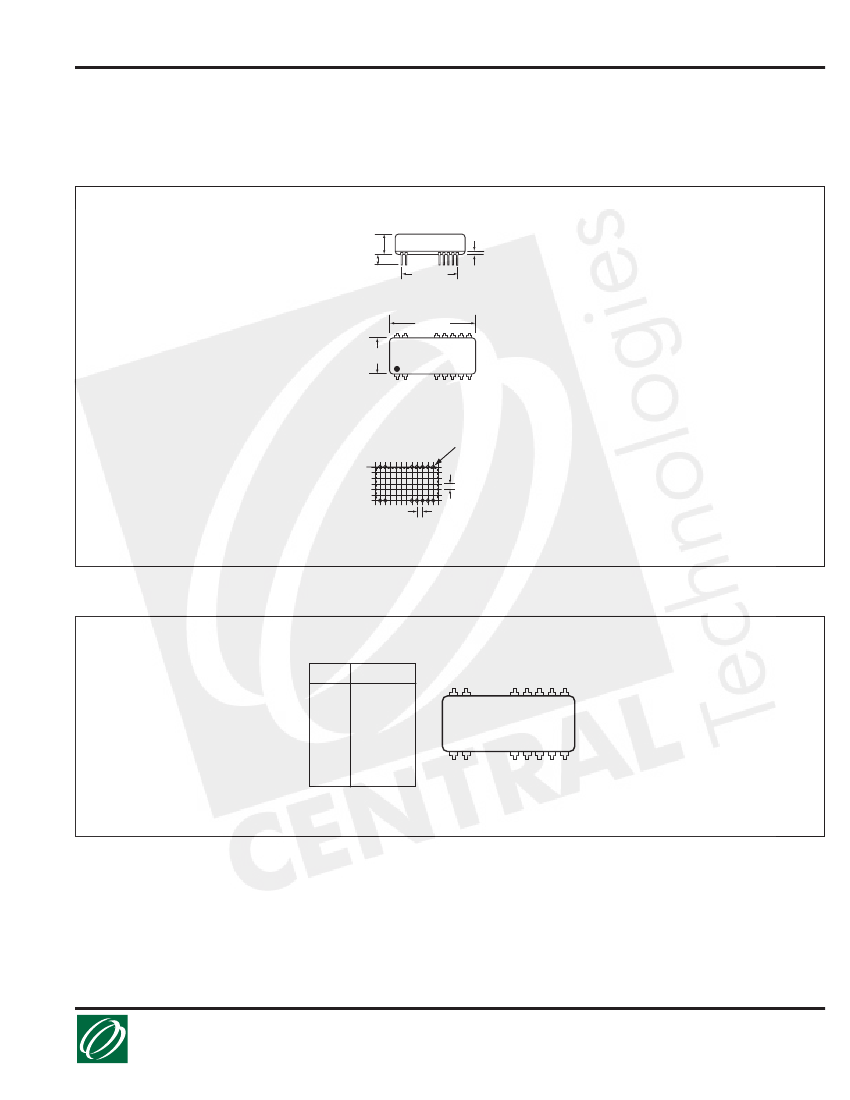

11.27.06

Technologies

Manufacturer of Passive and Discrete Semiconductor Componenets

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL
