CTDD3214DF-1212-D6K-1 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> CTDD3214DF-1212-D6K-1

CTDD3214DF-1212-D6K-1: DescriptionDC/DC Converters; CategoryPower/power management The power supply circuit; File Size217KB，2 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTDD3214DF-1212-D6K-1 Overview

DC/DC Converters

CTDD3214DF-1212-D6K-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
Parts packaging code	MODULE
package instruction	,
Contacts	17/14
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ADDITIONAL -12V OUPTUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	R-PDMA-P14
Maximum load regulation	15%
Number of functions	1
Output times	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

DC/DC Converters

ctparts.com

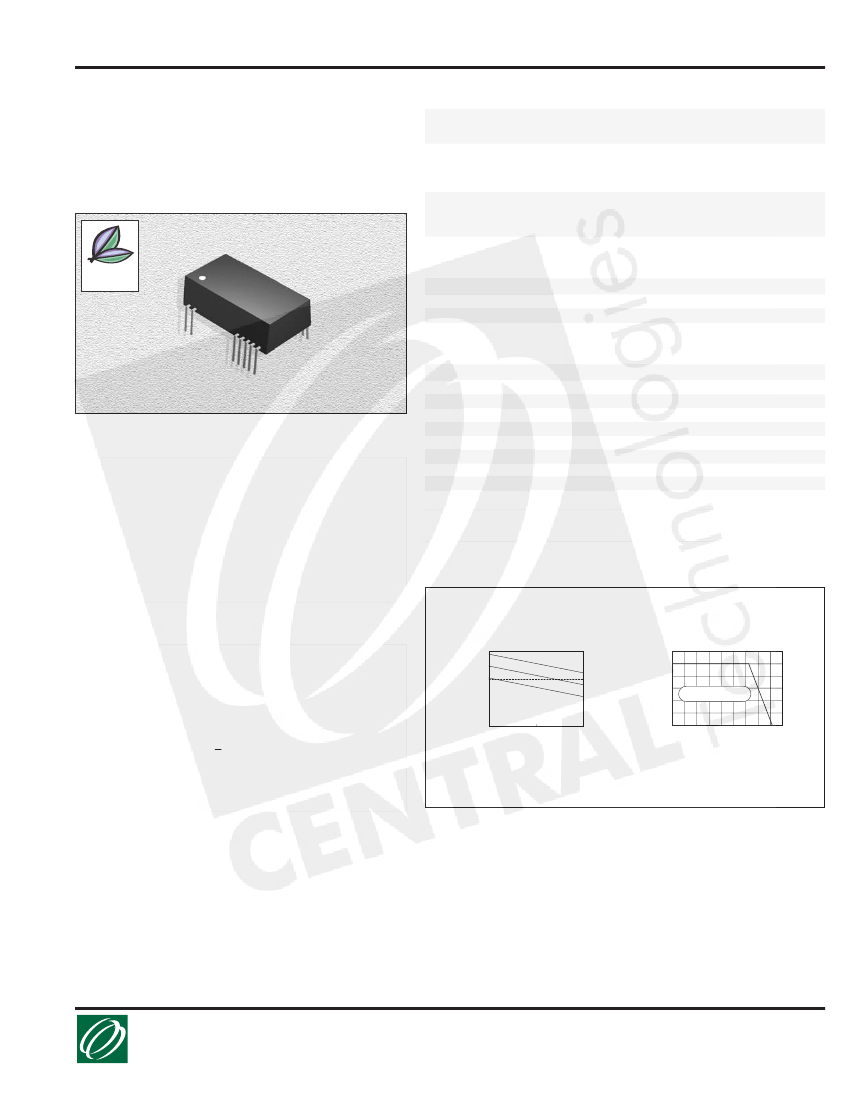

SPECIFICATIONS

CTDD3214DF-D6K-1 Series

Fixed Input Isolated & Unregulated

1W Output, Dual Output

Part

Number

CTDD3214DF-0505-D6K-1

CTDD3214DF-0509-D6K-1

CTDD3214DF-0512-D6K-1

CTDD3214DF-0515-D6K-1

CTDD3214DF-1205-D6K-1

CTDD3214DF-1209-D6K-1

CTDD3214DF-1212-D6K-1

CTDD3214DF-1215-D6K-1

Vin

Nom.

(VDC)

Input Range

(VDC)

4.5-5.5

10.8-13.2

Vout

(VDC)

±5

±9

±12

±15

±5

±9

±12

±15

Iout

Max.

(mA)

±100

±56

±42

±33

±100

±56

±42

±33

Iout

Min.

(mA)

±10

±6

±5

±4

±10

±6

±5

±4

Effi.

Typ.

(%)

Not shown at actual size.

Compliant

RoHS

ISOLATION SPECIFICATIONS

Item

Isolation Voltage

Isolation Resistance

Test Condition

Flash tested for 1 minute

Test at 500VDC

MIN

6000

1000

TYP

MAX

Units

VDC

MΩ

OUTPUT SPECIFICATIONS

Item

1W Output Power

Line regulation

Load regulation

Nominal voltage ±1%

10% to 100% (5V output)

10% to 100% (12V output)

100% full load

Nominal input voltage

100% full load

20MHz Bandwidth

Full load, nominal input

250

0.03

150

Test Condition

MIN

0.1

TYP

MAX

±1.2

See tolerance envelope graph

%/°C

mVp-p

KHz

Units

FEATURES

Efficiency:

To 75%

Temperature Range:

-40°C to 85°C

Isolation:

6KVDC

Package:

UL94-V0

Miscellaneous:

Positive and Negative Voltage Output. Small

Footprint. No heat sink required. Fixed Input Voltage. No external

component required. Industry standard pinout. Unregulated output

voltage. Custom service available.

Samples available.

Output voltage accuracy

Efficiency at full load

Temperature drift

1W Output ripple

Switching frequency

Note:

1. All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output load

unless otherwise specified.

TYPICAL CHARACTERISTICS

CHARACTERISTICS

Short Circuit Protection:

1 second

Temperature Rise at Full Load:

25°C Max. 15°C Typ.

Cooling:

Free air convection

Operating Temperature Range:

-40°C to +85°C

Storage Temperature Range:

-55°C to +125°C

Lead Temperature:

300°C (1.5mm from case for 10 seconds)

Storage Humidity Range:

< 95%

Case Material:

Plastic (UL94-V0)

MTBF:

>3,500,000 hours

Miscellaneous:

RoHS Compliant.

Tolerance Envelope Graph

Temperature Derating Graph

Typic

l Load

Line

+2.5%

-2.5%

-7.5%

Output Power(%)

Output Voltage(%)

+10%

+5%

Nominal

Voltage

120

100

10%

50%

100%

-40

Safe Operating Area

120

Output Current(%)

Ambient Temperature(°C)

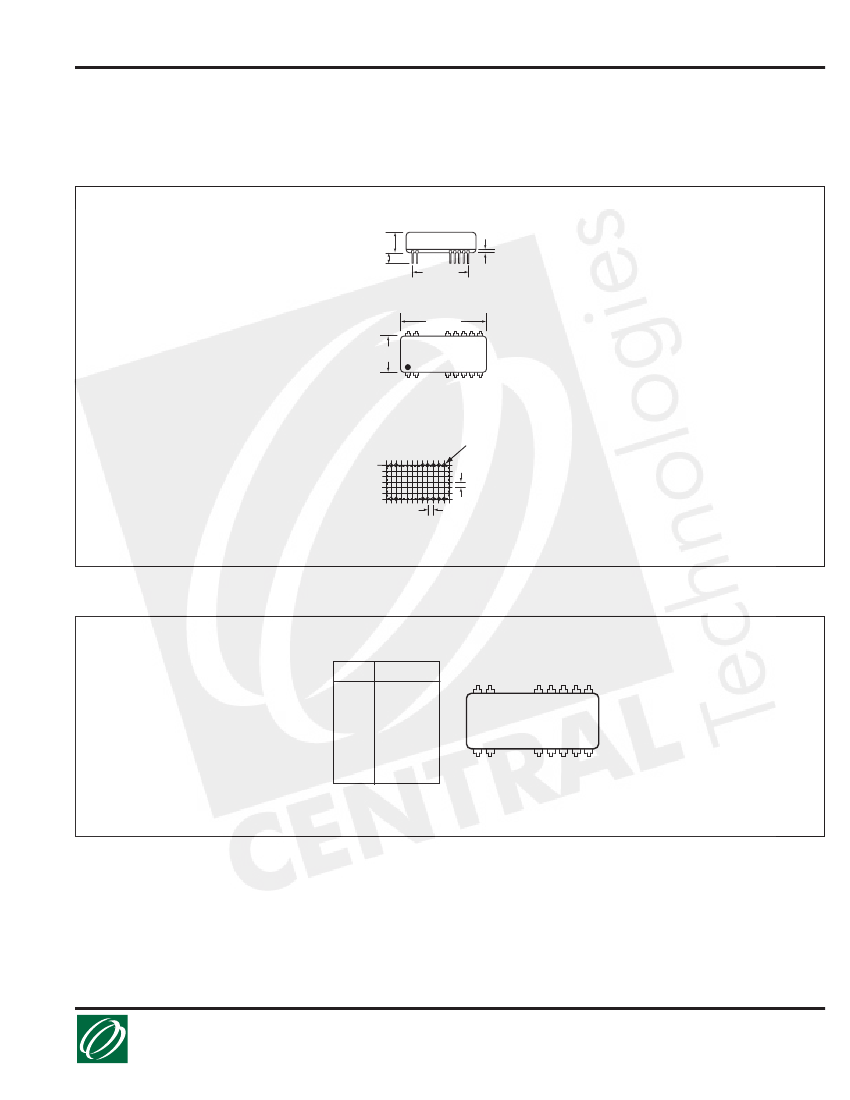

11.22.06

Technologies

Manufacturer of Passive and Discrete Semiconductor Componenets

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
