CTDD3220DF-0515-S1.5K-3 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> CTDD3220DF-0515-S1.5K-3

CTDD3220DF-0515-S1.5K-3: Description1-OUTPUT 3 W DC-DC REG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size269KB，2 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTDD3220DF-0515-S1.5K-3 Overview

1-OUTPUT 3 W DC-DC REG PWR SUPPLY MODULE

CTDD3220DF-0515-S1.5K-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	MODULE
package instruction	,
Contacts	24/8
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	9 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-PDMA-P8
Maximum load regulation	0.75%
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output voltage	15.3 V
Minimum output voltage	14.7 V
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	3 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

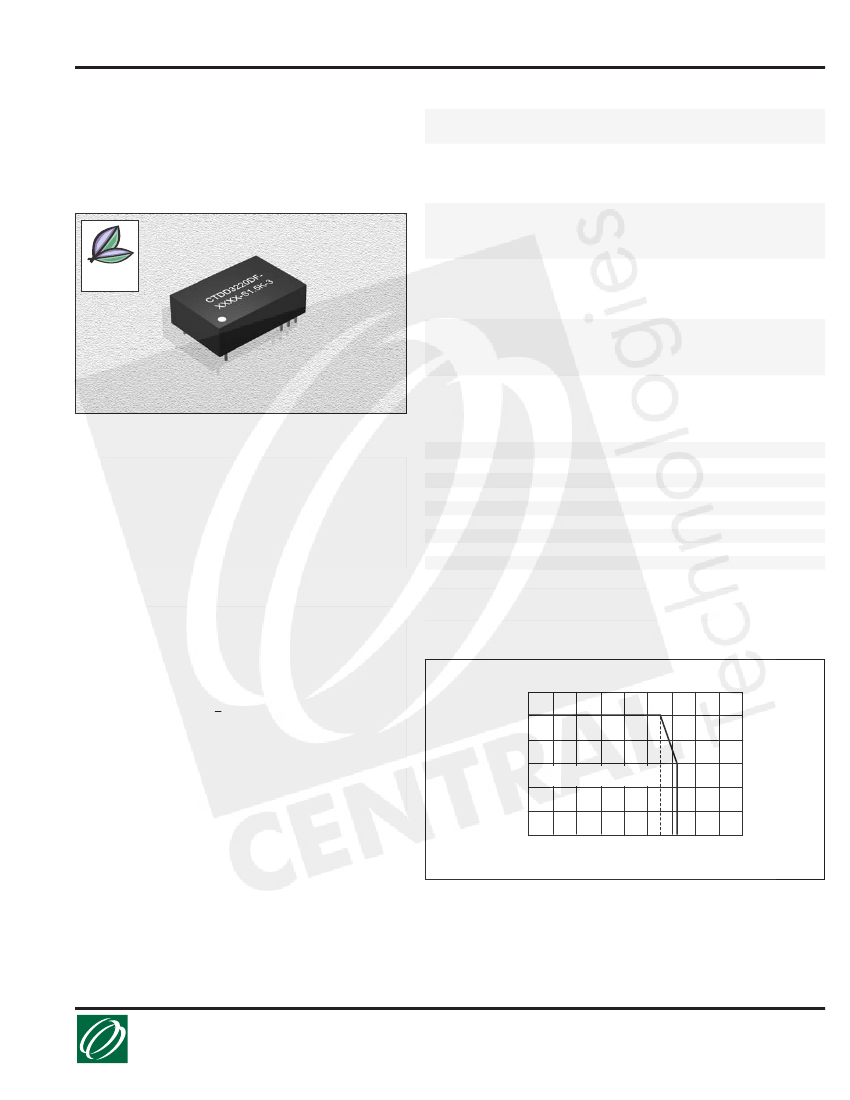

DC/DC Converters

ctparts.com

SPECIFICATIONS

CTDD3220DF-S1.5K-3 Series

Wide Input Isolated & Regulated

3W Output, Single Output

Part

Number

CTDD3220DF-0505-S1.5K-3

CTDD3220DF-0509-S1.5K-3

CTDD3220DF-0512-S1.5K-3

CTDD3220DF-0515-S1.5K-3

CTDD3220DF-0524-S1.5K-3

CTDD3220DF-1205-S1.5K-3

CTDD3220DF-1209-S1.5K-3

CTDD3220DF-1212-S1.5K-3

CTDD3220DF-1215-S1.5K-3

CTDD3220DF-1224-S1.5K-3

CTDD3220DF-2405-S1.5K-3

CTDD3220DF-2409-S1.5K-3

CTDD3220DF-2412-S1.5K-3

CTDD3220DF-2415-S1.5K-3

CTDD3220DF-2424-S1.5K-3

CTDD3220DF-4805-S1.5K-3

CTDD3220DF-4809-S1.5K-3

CTDD3220DF-4812-S1.5K-3

CTDD3220DF-4815-S1.5K-3

CTDD3220DF-4824-S1.5K-3

Vin

Nom.

(VDC)

Input Range

(VDC)

4.5-9

9-18

18-36

36-72

Vin

Max.*

(VDC)

Vout

(VDC)

Iout

Max.

(mA)

600

333

250

200

125

600

333

250

200

125

600

333

250

200

125

600

333

250

200

125

Iout

Min.

(mA)

Effi.

Typ.

(%)

Not shown at actual size.

Compliant

RoHS

*If Input voltage above specified may cause permanent damage to the device

OUTPUT SPECIFICATIONS

FEATURES

Efficiency:

To 83%

Temperature Range:

-40°C to +85°C

Isolation:

1.5KVDC

Package:

UL94-V0

Miscellaneous:

Wide (2:1) Input Range. Single Output. No heat

sink required. Industry standard pinout.

Samples available.

Item

3W Output Power

Positive Voltage accuracy

Load regulation

Line regulation

Temperature drift (Vout)

Ripple

Noise

Switching frequency

Isolation Capacitance

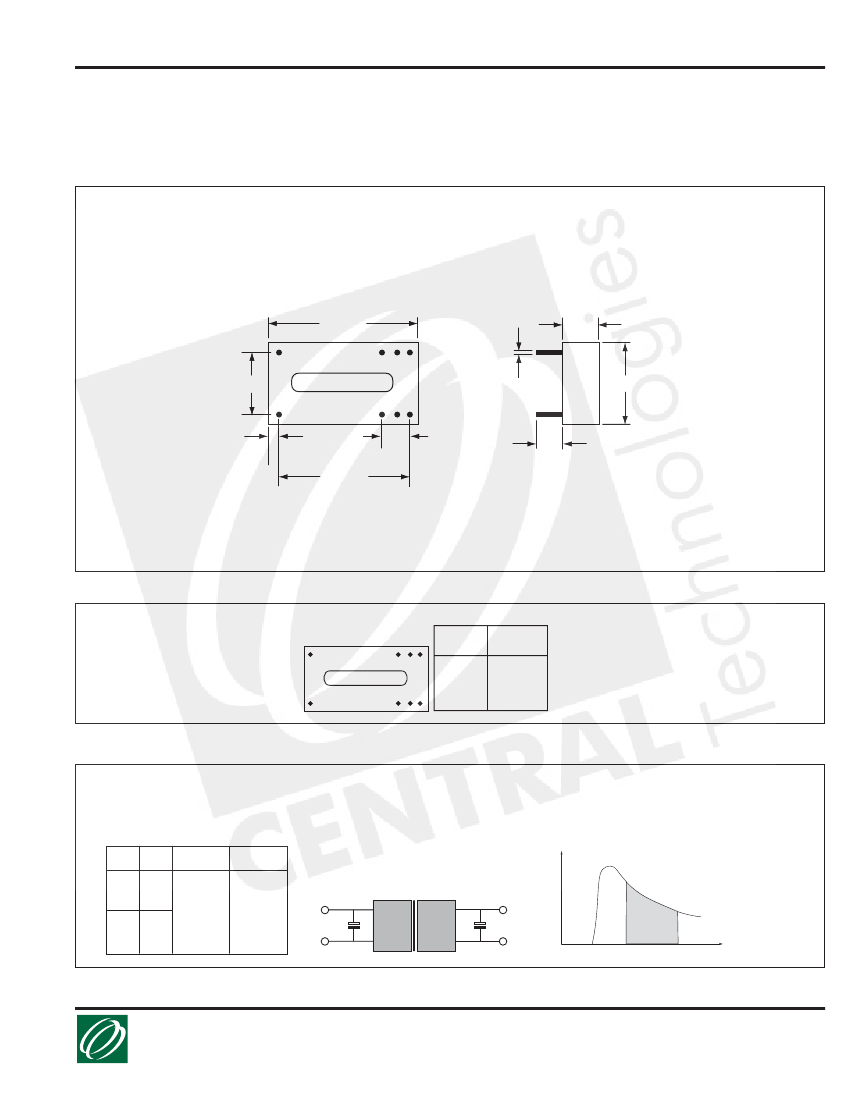

Refer to Recommended Circuit

From 10% to 100% load

Input Voltage from low to high

Refer to Temp. Derating Graph

20Hz to 300KHz Bandwidth

DC-20MHz Bandwidth

100% load, nominal input voltage

100

100-650PFM

100

Test Condition

MIN

0.3

±1

±0.5

±0.2

TYP

MAX

±2

±0.75

±0.5

0.03

200

Units

%/°C

mVp-p

KHz

CHARACTERISTICS

Output Short Circuit Protection:

Continuous, Auto Recovery

Temperature Rise at Full Load:

15°C (Typ.)

Cooling:

Free air convection

Operating Temperature Range:

-40°C to +85°C

Storage Temperature Range:

-55°C to +125°C

Lead Temperature:

300°C (1.5mm from case for 10 seconds)

Storage Humidity Range:

< 95%

Case Material:

Pastic (UL94-V0)

MTBF:

>1,000,000 hours

Isolation Voltage:

1,500VDC

Isolation Resistance:

>1,000M

Weight:

15G

Miscellaneous:

RoHS Compliant.

Note:

1. All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output unless

otherwise specified.

TYPICAL CHARACTERISTICS

Temperature Derating Graph

120

Output Power (%)

100

-40

120

71 85

Operating Temperature (°C)

Safe Operating Area

01.08.07

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL
