CTDLW31SF-601T03 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> CTDLW31SF-601T03

CTDLW31SF-601T03: DescriptionCommon Mode Chokes; CategoryAnalog mixed-signal IC filter; File Size437KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric Compare View All

CTDLW31SF-601T03 Overview

Common Mode Chokes

CTDLW31SF-601T03 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Maximum DC resistance	0.8 Ω
filter type	DATA LINE FILTER
high	2 mm
Minimum insulation resistance	10 MΩ
JESD-609 code	e3
length	3.2 mm
Installation type	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	600 OHM Ω
method of packing	TAPE AND REEL
physical size	L3.2XB1.6XH2.0 (mm)/L0.126XB0.063XH0.079 (inch)
Rated current	0.26 A
Rated voltage	50 V
Terminal surface	Matte Tin (Sn)
width	1.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Common Mode Chokes

ctparts.com

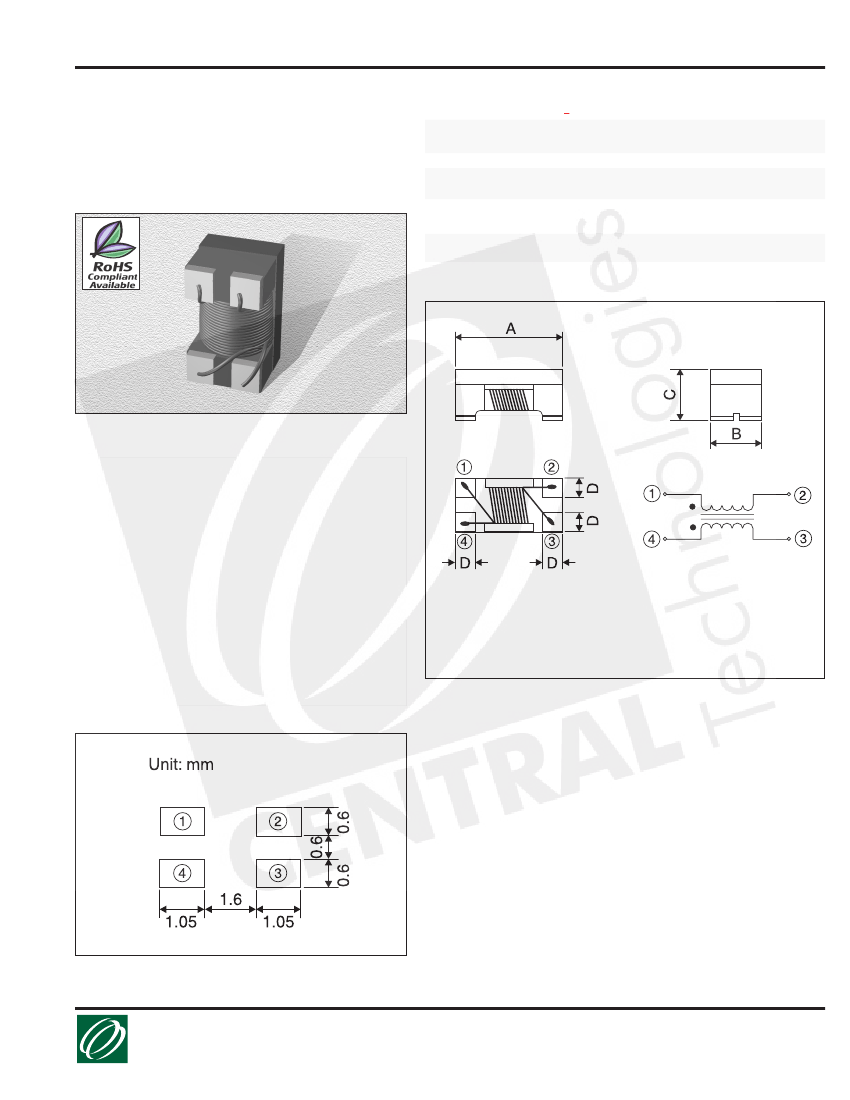

SPECIFICATIONS

CTDLW31S Series

From 90

to 600

Part

Number

Not shown at actual size.

CTDLW31SF

Please specify “F” for RoHS compliant.

Common Mode

Imp. @100MHz

(Ω)

90±25%

DCR

Max.

(Ω)

0.30

0.40

0.50

0.80

Rated

Current

(mA)

400

350

260

Rated

Volatge

(Vdc)

Withstand

Voltage

(Vdc)

125

Insulation

Resis. Min.

(Ω)

10M

CTDLW31S_-900T04

CTDLW31S_-161T03 160±25%

CTDLW31S_-221T03 220±25%

CTDLW31S_-601T03 600±25%

PHYSICAL DIMENSIONS

Size

inches

3.2±0.2

0.125±0.008

1.6±0.2

0.063±0.008

2.0±0.2

0.079±0.008

Typ.

0.6

0.024

CHARACTERISTICS

Description:

SMD Wire Wound Common Mode Choke Coils for

Signal Lines

Applications:

Suitable for radiation noise suppression for any

electronic devices. Used to counter common mode noise

interferance within high speed signal lines. Applications like: USB

2.0 Line for personal computers and peripheral devices, IEEE1394

line for personal computers, DVC etc and LVDS, panel link line for

crystal display panels.

Operating Temperature:

-55°C to +125°C

Testing:

Impedance is tested on an HP4287A at 100 MHz

Packaging:

Tape & Reel

Marking:

Reels marked with part number.

Additional Information:

Additional electrical & physical

information available upon request

Miscellaneous:

RoHS Compliant available.

Samples available. See website for ordering information.

PAD LAYOUT

04.30.07

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL

CTDLW31SF-601T03 Related Products

	CTDLW31SF-601T03	CTDLW31S	CTDLW31S-161T03	CTDLW31S-221T03	CTDLW31S-601T03	CTDLW31S-900T04	CTDLW31SF-161T03	CTDLW31SF-221T03	CTDLW31SF-900T04
Description	Common Mode Chokes	Common Mode Chokes	Common Mode Chokes	Common Mode Chokes	Common Mode Chokes	Common Mode Chokes	Common Mode Chokes	Common Mode Chokes	Common Mode Chokes
Is it lead-free?	Lead free	-	Contains lead	Contains lead	Contains lead	Contains lead	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	incompatible	incompatible	incompatible	incompatible	conform to	conform to	conform to
Reach Compliance Code	compli	-	compli	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC resistance	0.8 Ω	-	0.4 Ω	0.5 Ω	0.8 Ω	0.3 Ω	0.4 Ω	0.5 Ω	0.3 Ω
filter type	DATA LINE FILTER	-	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	2 mm	-	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Minimum insulation resistance	10 MΩ	-	10 MΩ	10 MΩ	10 MΩ	10 MΩ	10 MΩ	10 MΩ	10 MΩ
length	3.2 mm	-	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm
Installation type	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	-	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output impedance	600 OHM Ω	-	160 OHM Ω	220 OHM Ω	600 OHM Ω	90 OHM Ω	160 OHM Ω	220 OHM Ω	90 OHM Ω
method of packing	TAPE AND REEL	-	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	L3.2XB1.6XH2.0 (mm)/L0.126XB0.063XH0.079 (inch)	-	L3.2XB1.6XH2.0 (mm)/L0.126XB0.063XH0.079 (inch)	L3.2XB1.6XH2.0 (mm)/L0.126XB0.063XH0.079 (inch)	L3.2XB1.6XH2.0 (mm)/L0.126XB0.063XH0.079 (inch)	L3.2XB1.6XH2.0 (mm)/L0.126XB0.063XH0.079 (inch)	L3.2XB1.6XH2.0 (mm)/L0.126XB0.063XH0.079 (inch)	L3.2XB1.6XH2.0 (mm)/L0.126XB0.063XH0.079 (inch)	L3.2XB1.6XH2.0 (mm)/L0.126XB0.063XH0.079 (inch)
Rated current	0.26 A	-	0.35 A	0.35 A	0.26 A	0.4 A	0.35 A	0.35 A	0.4 A
Rated voltage	50 V	-	50 V	50 V	50 V	50 V	50 V	50 V	50 V
Base Number Matches	1	-	1	1	1	1	1	1	1
