54210110523D Overview

Barrier Strip Terminal Block,

54210110523D Parametric

Parameter NameAttribute value
MakerPTR Messtechnik GmbH & Co. KG
Reach Compliance Codecompli
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK

54210110523D Preview

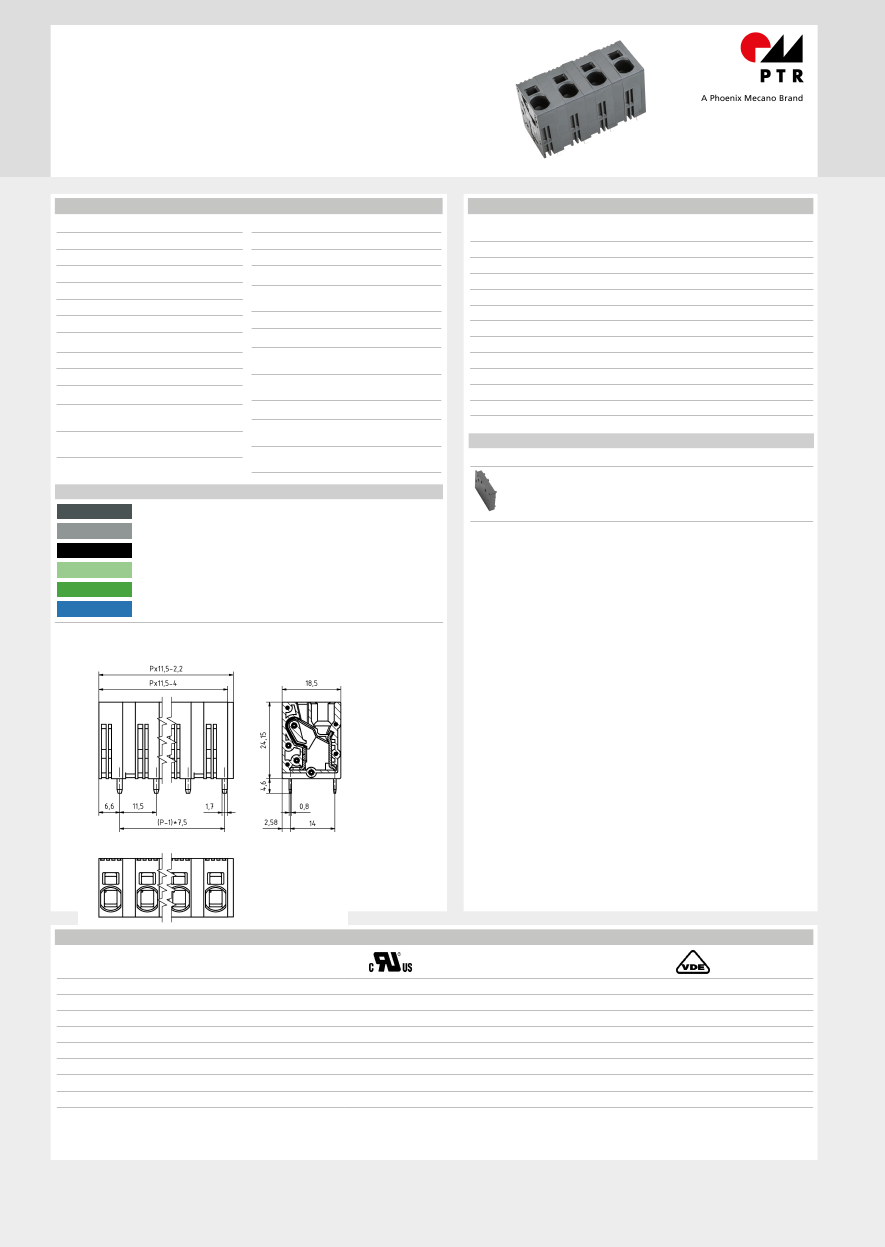

Push-In |
Spacing 11.5 mm
AK4210/..-11.5-V-BAGY
- 2- to n-poles
Technical Data
Wire sizes
Solid min
Solid max
Stranded (flexible) min
Stranded (flexible) max
Stranded with Ferrule min
Stranded with Ferrule max
0.2 mm²
10.0 mm²
0.2mm²
6.0 mm²
0.25 mm²
6.0 mm²
Order Data (Spacing 11.5 mm)
Insulating Material
Material
Flammability Class
PA 6.6
2
20.75
32.25
43.75
55.25
66.75
78.25
89.75
101.25
112.75
124.25
135.75
AK4210/2-11.5-V-baGY
AK4210/3-11.5-V-baGY
AK4210/4-11.5-V-baGY
AK4210/5-11.5-V-baGY
AK4210/6-11.5-V-baGY
AK4210/7-11.5-V-baGY
AK4210/8-11.5-V-baGY
AK4210/9-11.5-V-baGY
AK4210/10-11.5-V-baGY
AK4210/11-11.5-V-baGY
AK4210/12-11.5-V-baGY
Poles
Width (mm)
Article Designation
Article
Number
54210020523 D
54210030523 D
54210040523 D
54210050523 D
54210060523 D
54210070523 D
54210080523 D
54210090523 D
54210100523 D
54210110523 D
54210120523 D
PU
50
50
50
50
50
50
50
50
50
50
50
UL 94 V-0
3
4
Temperatures
Operating Temperature
(without mech. load)
Store Temperature
-40 °C - 105 °C
-40 °C - 105 °C
5
6
7
Dimensions
Stripped Length
PCB Hole Diameter
15.0 mm
2.1 mm
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
260 °C
3-4 s
8
9
10
11
12
Materials
Solder Tab
Clamp Spring
Copper
Alloy
Stainless
Steel
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
-
Accessoires
-
Figure
Designation
Spacer SPC-AK4210-V-baGY
Article Number
Order Data:
54210000001
Colours
BASALT GREY, RAL 7012
TRAFFIC GREY, RAL 7042
BLACK, RAL 9011
LIGHT GREEN, similar RAL 6018
GREEN, RAL 6018
BLUE, RAL 5015
Colours according to RAL, there may be variations on colour due to production conditions. Special
colours on request.
Ratings
UseGroup
Rated Voltage
Rated Current
Overvoltage Category
Rated Wire Size
- solid
- stranded
Test Voltage
B
600 V
35 A
C
600 V
35 A
D
600 V
35 A
450 V
41 A
III
min
max
10.0 mm²
6.0 mm²
3.5 kV
AWG 24-8
AWG 24-8
2.20 kV
AWG 24-8
AWG 24-8
2.20 kV
AWG 24-8
AWG 24-8
2.20 kV
0.2 mm²
0.2 mm²
PTR HARTMANN GmbH
• Gewerbehof 38 • 59368 Werne / Germany
Telefon: +49 (0)2389/7988-0 •
E-Mail: info@ptr-hartmann.com
www.ptr.eu
