EC3500TSY-10.000M: DescriptionCRYSTAL OSCILLATOR, CLOCK, 10 MHz, CMOS/TTL OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size122KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EC3500TSY-10.000M Overview

CRYSTAL OSCILLATOR, CLOCK, 10 MHz, CMOS/TTL OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

EC3500TSY-10.000M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	unknow
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Manufacturer's serial number	EC35
Installation features	SURFACE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS/TTL
Output load	10 TTL, 50 pF
physical size	5.0mm x 3.2mm x 1.3mm
longest rise time	6 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrie

Preview

Download Datasheet

View All

EC35

Series

• Crystal Clock Oscillators

• CMOS/TTL Output

• +5.0V Supply Voltage

• Tri-State Output Function

• 4 Pad Ceramic SMD Package

• Low Stand-by Current

• RoHS Compliant (Pb-Free)

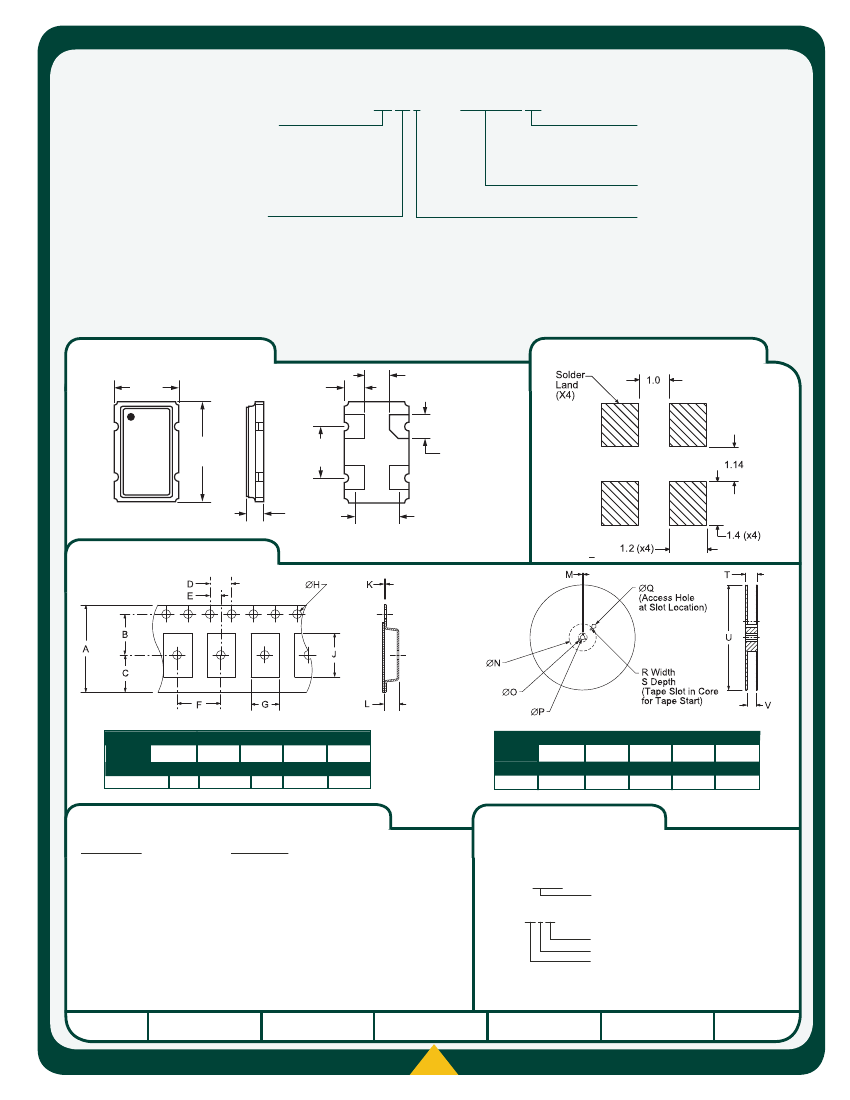

NOTES

EC35

H 1.3

L 5.0

W 3.2

OSCILLATOR

__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range (F

)

Operating Temperature Range (OTR)

Storage Temperature Range (STR)

Supply Voltage (V

)

1.544MHz to 35.000MHz

Input Current (I

)(No Load)

35.001MHz to 70.000MHz

70.001MHz to 100.000MHz

Inclusive of all conditions: Calibration Tolerance at 25°C,

Frequency Tolerance/Stability

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, First Year Aging

at 25°C, Shock, and Vibration

w/ TTL Load

Output Voltage Logic High (V

)

w/ CMOS Load

w/ TTL Load

Output Voltage Logic Low (V

)

w/ CMOS Load

< 35.000MHz 20% to 80% of Waveform

Rise Time / Fall Time (T

)

> 35.000MHz 20% to 80% of Waveform

at 50% of Waveform

Duty Cycle (SYM)

Load Drive Capability (C

LOAD

)

1.544MHz to 35.000MHz

35.001MHz to 70.000MHz

70.001MHz to 100.000MHz

No Connection

: >90% of V

: <10% of V

Disabled Output: High Impedance

12kHz to 20MHz offset frequency
