BA9707 Overview

4-channel switching regulator

Regulator ICs

4-channel switching regulator

BA9707KV

The BA9707KV, a 4-channel switching regulator that uses a pulse width modulation (PWM) system, can drive all channel

PNP transistors directly.

FApplications

VCRs and other portable equipment

FFeatures

1) Reference voltage precision is

1%.

2) Output stages are based on the push-pull method

(resembling the totem-pole method), and ON / OFF

currents can be set independently.

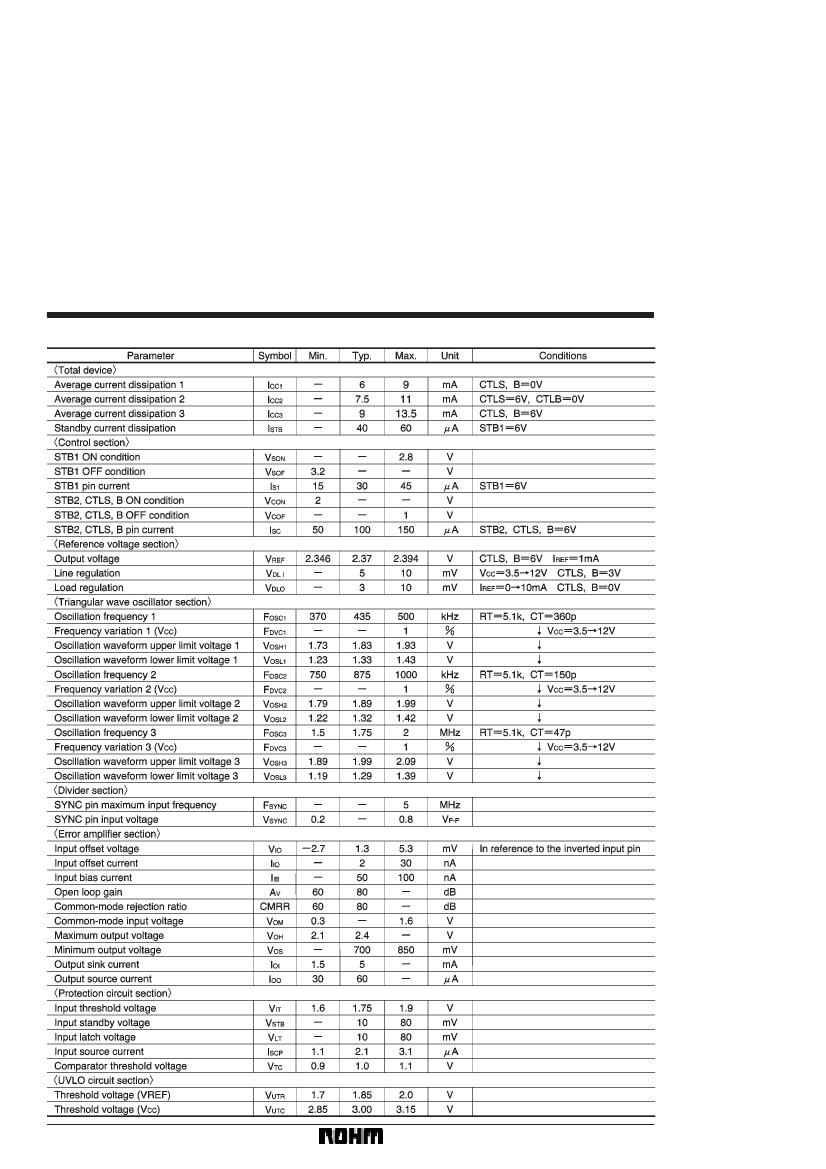

FAbsolute

maximum ratings (Ta = 25_C)

3) Triangular waves can be externally synchronized.

4) Pins allow ON / OFF control of channel 4 only, or all

channels at once.

FRecommended

operating conditions (Ta = 25_C)

289

	BA9707	BA9707KV
Description	4-channel switching regulator	4-channel switching regulator
