BA9708K datasheet, PDF - EEWORLD Datasheet

BA9708K: Description3-channel switching regulator; CategoryPower/power management The power supply circuit; File Size150KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA9708K Overview

3-channel switching regulator

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	QFP
package instruction	QFP-32
Contacts	32
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Maximum input voltage	12 V
Minimum input voltage	3.5 V
JESD-30 code	S-PQFP-G32
JESD-609 code	e3/e2
length	7 mm
Number of functions	1
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Encapsulate equivalent code	QFP32,.35SQ,32
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.55 mm
surface mount	YES
Maximum switching frequency	590 kHz
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	10
width	7 mm
Base Number Matches	1

Regulator ICs

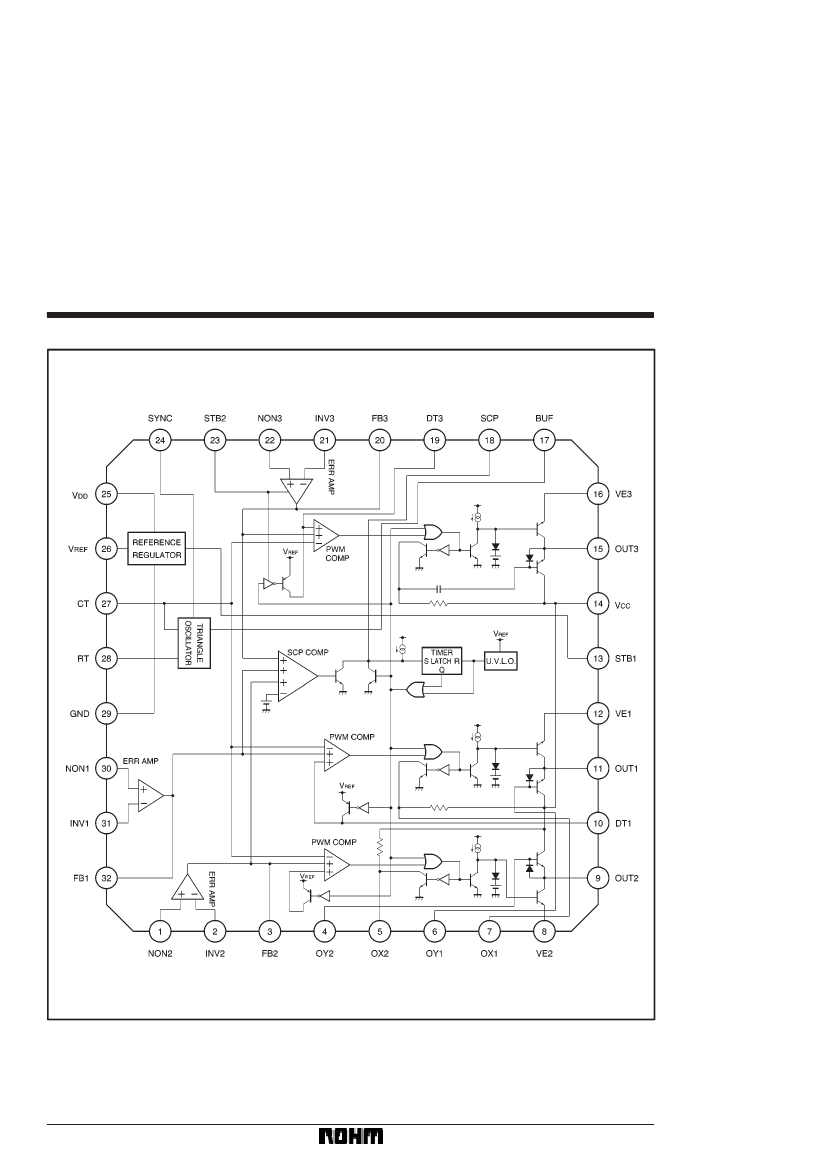

3-channel switching regulator

BA9708K

The BA9708K, a 3-channel switching regulator that uses a pulse width modulation (PWM) system, can drive all channel

PNP transistors directly.

FApplications

VCRs and other portable equipment

FFeatures

1) Reference voltage precision is

±

1%.

2) Output stages are based on the push-pull method

(resembling the totem-pole method), and ON / OFF

currents can be set independently.

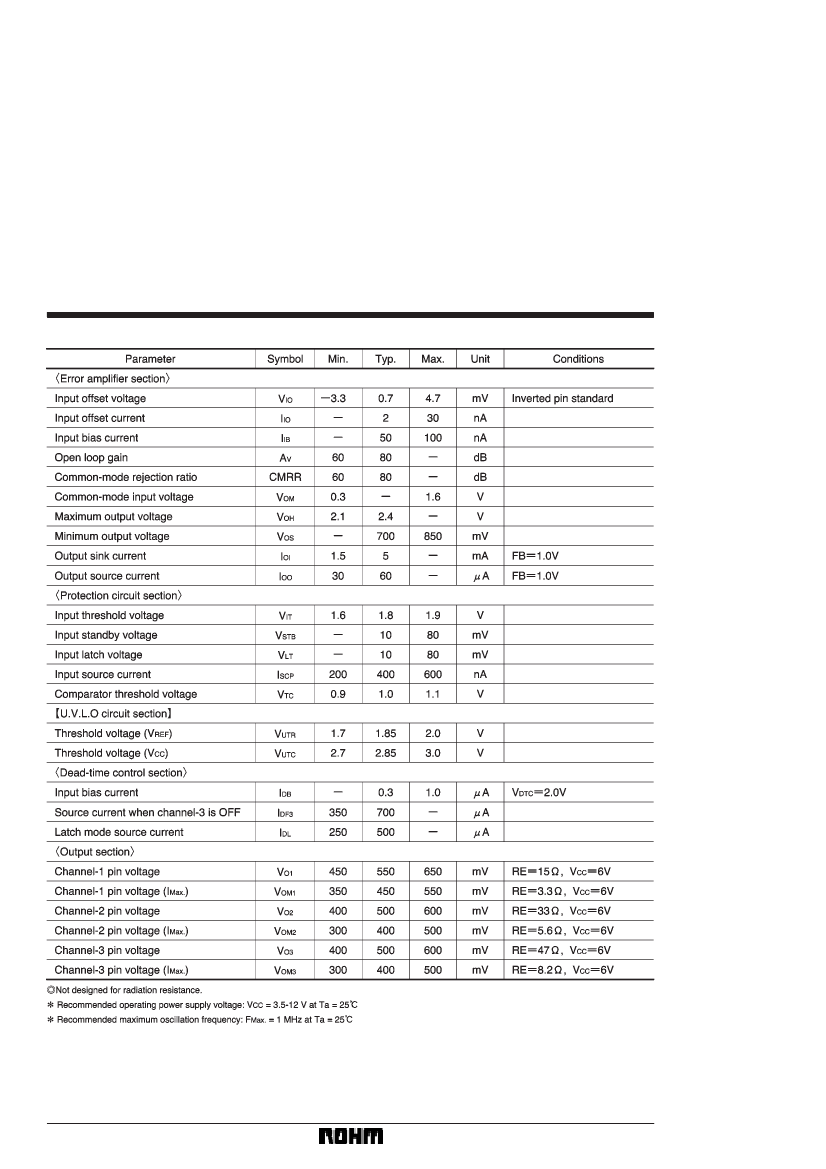

FAbsolute

maximum ratings (Ta = 25_C)

3) Triangular waves can be externally synchronized.

4) Pins allow ON / OFF control of channel 3 only, or all

channels at once.

FRecommended

operating conditions (Ta = 25_C)

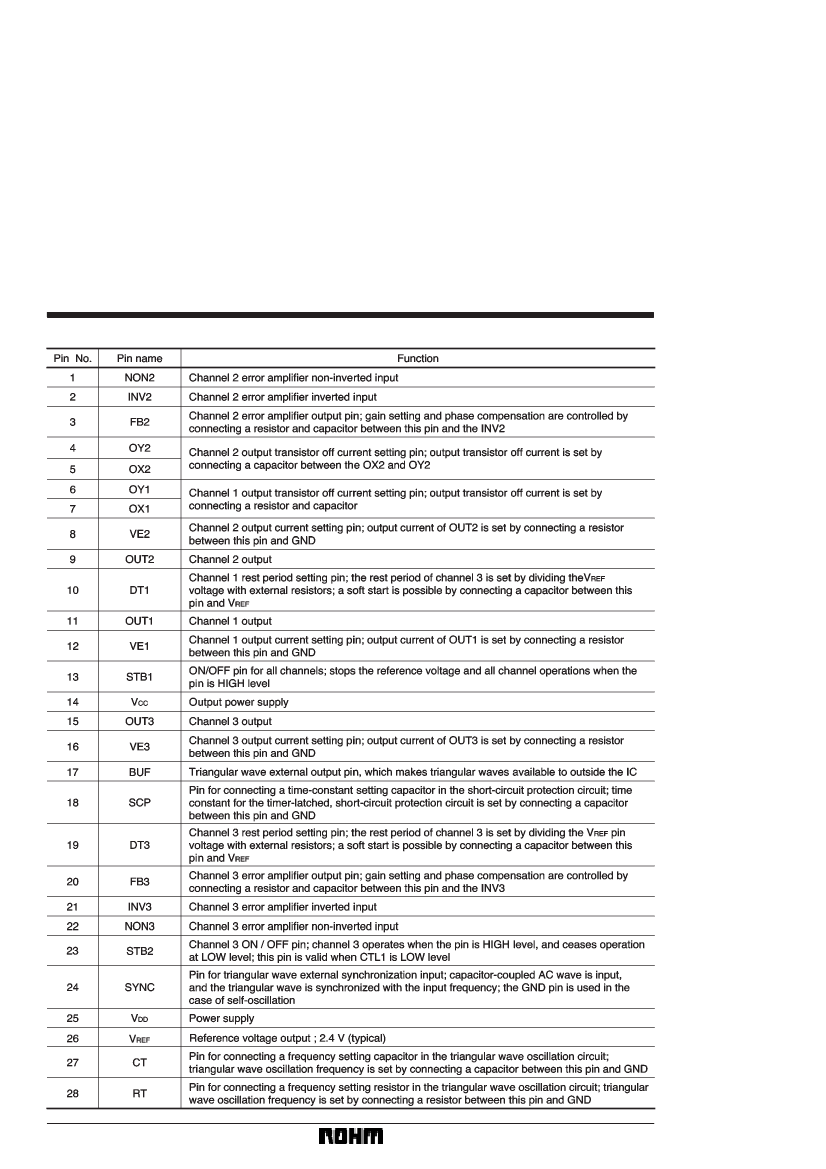

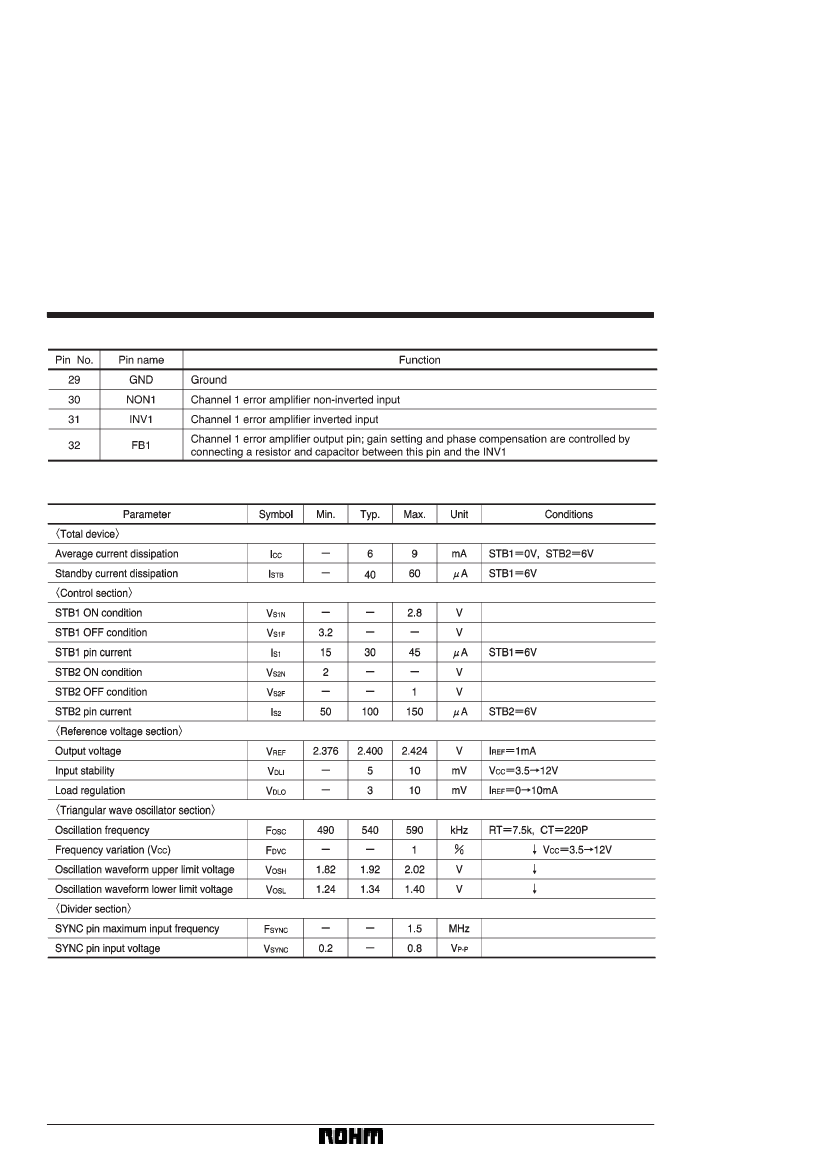

295

	BA9708K	BA9708
Description	3-channel switching regulator	3-channel switching regulator
