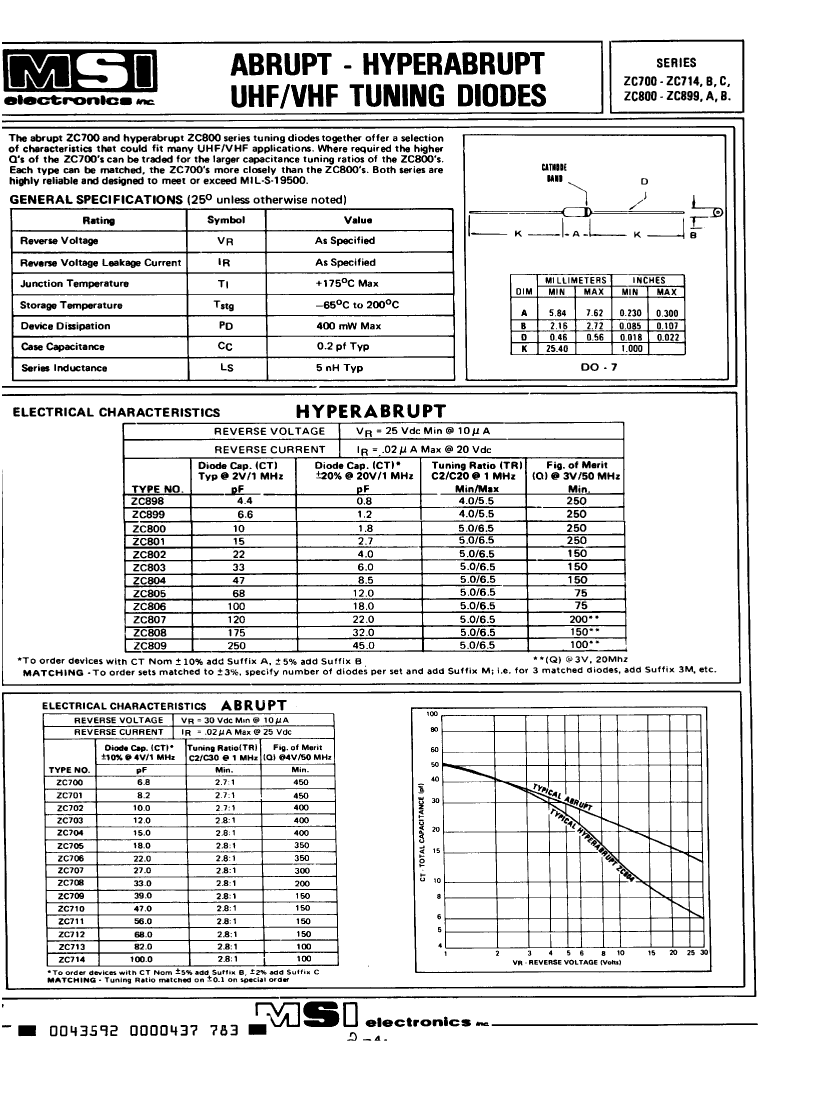

Preview

ZC701C: DescriptionVariable Capacitance Diode, Very High Frequency to Ultra High Frequency, 8.2pF C(T), 30V, Silicon, Abrupt; CategoryDiscrete semiconductor diode; File Size60KB，1 Pages; ManufacturerMsi Electronics Inc

Download Datasheet Parametric Compare View All

ZC701C Overview

Variable Capacitance Diode, Very High Frequency to Ultra High Frequency, 8.2pF C(T), 30V, Silicon, Abrupt

ZC701C Parametric

Parameter Name	Attribute value
Maker	Msi Electronics Inc
package instruction	O-LALF-W2
Reach Compliance Code	unknow
ECCN code	EAR99
Minimum breakdown voltage	30 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode Capacitance Tolerance	2%
Minimum diode capacitance ratio	2.7
Nominal diode capacitance	8.2 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
frequency band	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.4 W
Certification status	Not Qualified
minimum quality factor	450
Maximum repetitive peak reverse voltage	30 V
Maximum reverse current	2e-8 µA
Reverse test voltage	25 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Varactor Diode Classification	ABRUPT

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

ZC701C Related Products

	ZC701C	ZC701B	ZC711C	ZC899A	ZC899B	ZC703C
Description	Variable Capacitance Diode, Very High Frequency to Ultra High Frequency, 8.2pF C(T), 30V, Silicon, Abrupt	Variable Capacitance Diode, Very High Frequency to Ultra High Frequency, 8.2pF C(T), 30V, Silicon, Abrupt	Variable Capacitance Diode, Very High Frequency to Ultra High Frequency, 56pF C(T), 30V, Silicon, Abrupt	Variable Capacitance Diode, Very High Frequency to Ultra High Frequency, 6.6pF C(T), 25V, Silicon, Hyperabrupt	Variable Capacitance Diode, Very High Frequency to Ultra High Frequency, 6.6pF C(T), 25V, Silicon, Hyperabrupt	Variable Capacitance Diode, Very High Frequency to Ultra High Frequency, 12pF C(T), 30V, Silicon, Abrupt
Maker	Msi Electronics Inc	Msi Electronics Inc	Msi Electronics Inc	Msi Electronics Inc	Msi Electronics Inc	Msi Electronics Inc
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Minimum breakdown voltage	30 V	30 V	30 V	25 V	25 V	30 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode Capacitance Tolerance	2%	5%	2%	10%	5%	2%
Minimum diode capacitance ratio	2.7	2.7	2.8	4	4	2.8
Nominal diode capacitance	8.2 pF	8.2 pF	56 pF	6.6 pF	6.6 pF	12 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
frequency band	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum power dissipation	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum quality factor	450	450	150	250	250	400
Maximum repetitive peak reverse voltage	30 V	30 V	30 V	25 V	25 V	30 V
Maximum reverse current	2e-8 µA	2e-8 µA	2e-8 µA	2e-8 µA	0.02 µA	2e-8 µA
Reverse test voltage	25 V	25 V	25 V	20 V	20 V	25 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Varactor Diode Classification	ABRUPT	ABRUPT	ABRUPT	HYPERABRUPT	HYPERABRUPT	ABRUPT
