84149SSG-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 84149SSG-1

84149SSG-1: DescriptionRF SMA Connector, Male, Cable Mount, Plug; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerMidwest Microwave

Download Datasheet Parametric View All

84149SSG-1 Overview

RF SMA Connector, Male, Cable Mount, Plug

84149SSG-1 Parametric

Parameter Name	Attribute value
Maker	Midwest Microwave
Reach Compliance Code	unknow
ECCN code	EAR99
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	SMA
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	NO

Preview

Download Datasheet

View All

DESC*

SMA Connectors for Semi-Rigid Cable

CAPTURED CENTER CONTACT

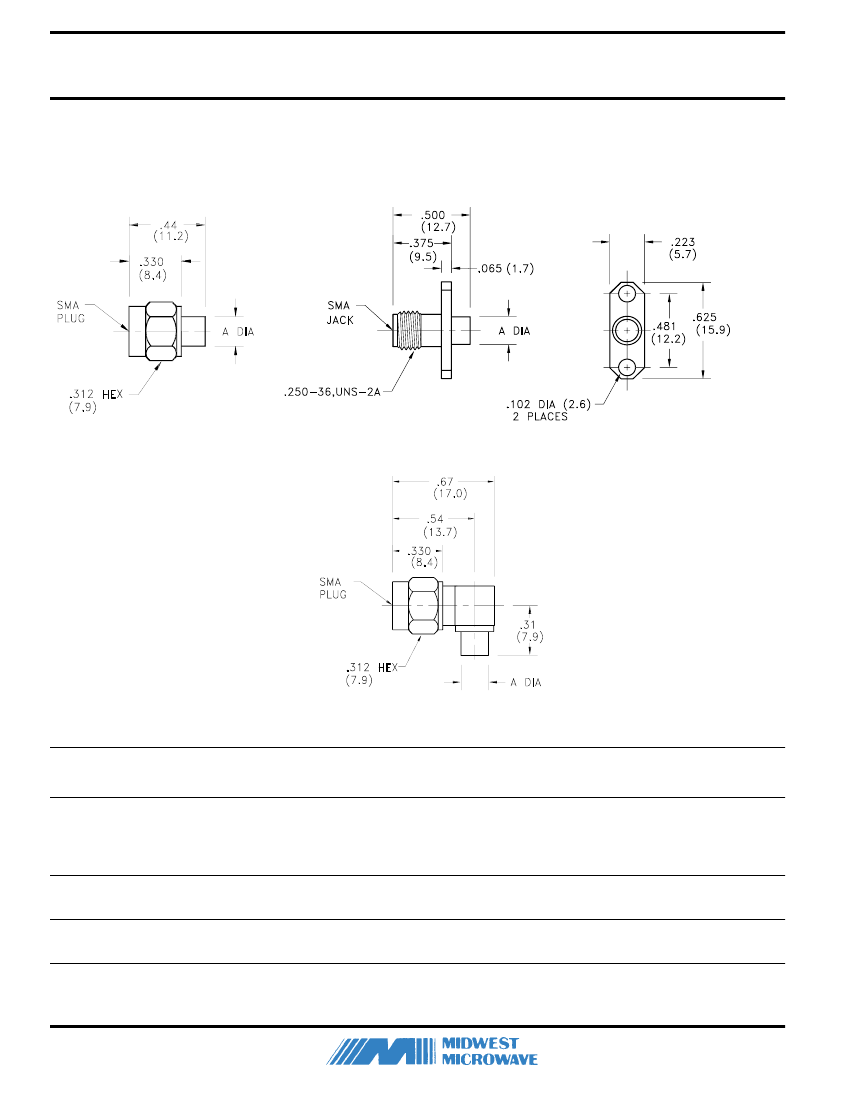

FIGURE 1

FIGURE 2

FIGURE 3

DESC

PART NO.

84149SSG

84149SSG-1

84149SSGA

84149SSGA-1

85022SSG

85022SSGA

85037SSG

85037SSGA

MIDWEST

PART NO

SMA-4141-79-002-02

SMA-0141-79-010-02

SMA-4085-79-005-02

SMA-4085-79-002-02

SMA-4141-82-003-00

SMA-4085-82-004-00

SMA-0141-80-005-02

SMA-0085-80-004-02

DIMENSION A

Inches (mm)

.180

.120

(4.6)

(3.0)

ASSEMBLY

PROCEDURE

SMA-071

SMA-076

SMA-075

CABLE

TYPE

XIII

XII

XIII

XII

XIII

XII

COMMERCIAL

ALTERNATE

SMA-4141-89-000-02

SMA-4085-89-000-02

SMA-4141-82-000-00

SMA-4085-82-000-00

SMA-0141-80-000-02

SMA-0085-80-000-02

FIGURE

.180 (4.6)

.120 (3.0)

.180 (4.6)

.120 (3.0)

Notes:

1. * Defense Electronic Supply Center, Dayton, Ohio

2. See Appendix for description of connector interfaces .

268
