8503812FP-3

Description
RF Connector Adapter, N-SMA, Panel Mount, Female, Jack
CategoryThe connector    The connector
File Size163KB,1 Pages
ManufacturerMidwest Microwave
Download Datasheet Parametric View All

8503812FP-3 Overview

RF Connector Adapter, N-SMA, Panel Mount, Female, Jack

8503812FP-3 Parametric

Parameter NameAttribute value
MakerMidwest Microwave
Reach Compliance Codeunknow
Adapter typeN-SMA
Body/casing typeJACK
Connector typeRF CONNECTOR ADAPTER
Contact point genderFEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberBETWEEN
OptionsGENERAL PURPOSE
Panel mountingYES
DESC*
Between - Series Adapters
Type N to SMA ADAPTERS
LOCKWASHER

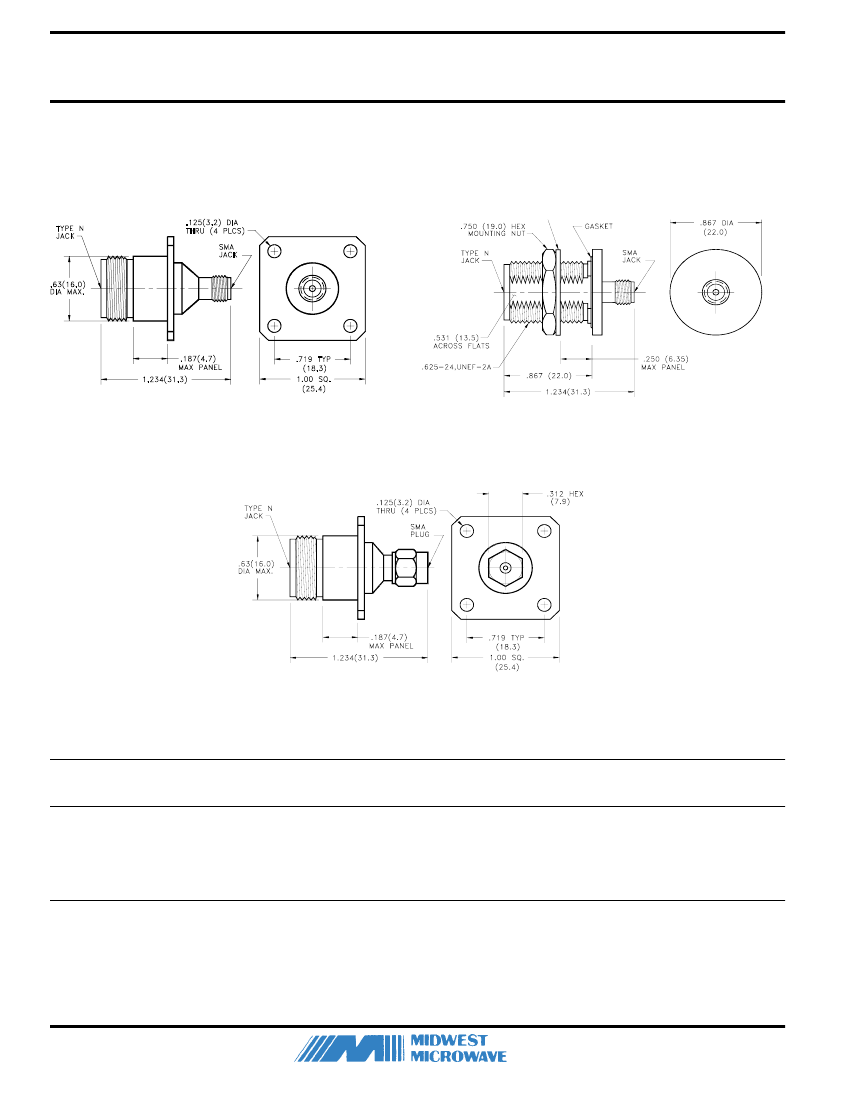

FIGURE 1
FIGURE 2
FIGURE 3
DESC
PART NO.
8503812FP-3
8503812FP-4**
8503812FP-5***
8503812SP-6**
8503812SP-7***
MIDWEST
PART NO
ADT-2599-FF-005-02
ADT-2578-MF-007-02
ADT-2578-MF-008-02
ADT-2579-FF-010-02
ADT-2579-FF-011-02
FIGURE
2
3
3
1
1
DESCRIPTION
COMMERCIAL
ALTERNATE
ADT-2840-NF-SMF-02
ADT-2578-NF-SMM-02
ADT-2578-MF-009-02
ADT-2579-NF-SMF-02
ADT-2682-NF-SMM-02
N Blkhd Female to SMA Female
N Panel Female to SMA Male
N Panel Female to SMA Male
N Panel Female to SMA Female
N Panel Female to SMA Female
Notes:
1. Finish: Housing outer conductor is passivated stainless steel and center conductors are gold plated.
If gold plating is desired on entire adapter, change part number suffix from -02 to -00.
2. ** .125 (3.2) Dia Thru Holes (4 Places) - *** #3-56 UNF Tapped Holes.
3. * Defense Electronic Supply Center, Dayton, Ohio
4. See Appendix for description of connector interfaces .
