M39030/8-01N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> M39030/8-01N

M39030/8-01N: DescriptionRF/Microwave Termination; CategoryWireless rf/communication Radio frequency and microwave; File Size199KB，2 Pages; ManufacturerMidwest Microwave

Download Datasheet Parametric View All

M39030/8-01N Overview

RF/Microwave Termination

M39030/8-01N Parametric

Parameter Name	Attribute value
Maker	Midwest Microwave
Reach Compliance Code	unknow
Other features	TNC-M
structure	COAXIAL
Maximum input power (CW)	40 dBm
RF/Microwave Device Types	RF/MICROWAVE TERMINATION

Preview

Download Datasheet

View All

QPL

Terminations

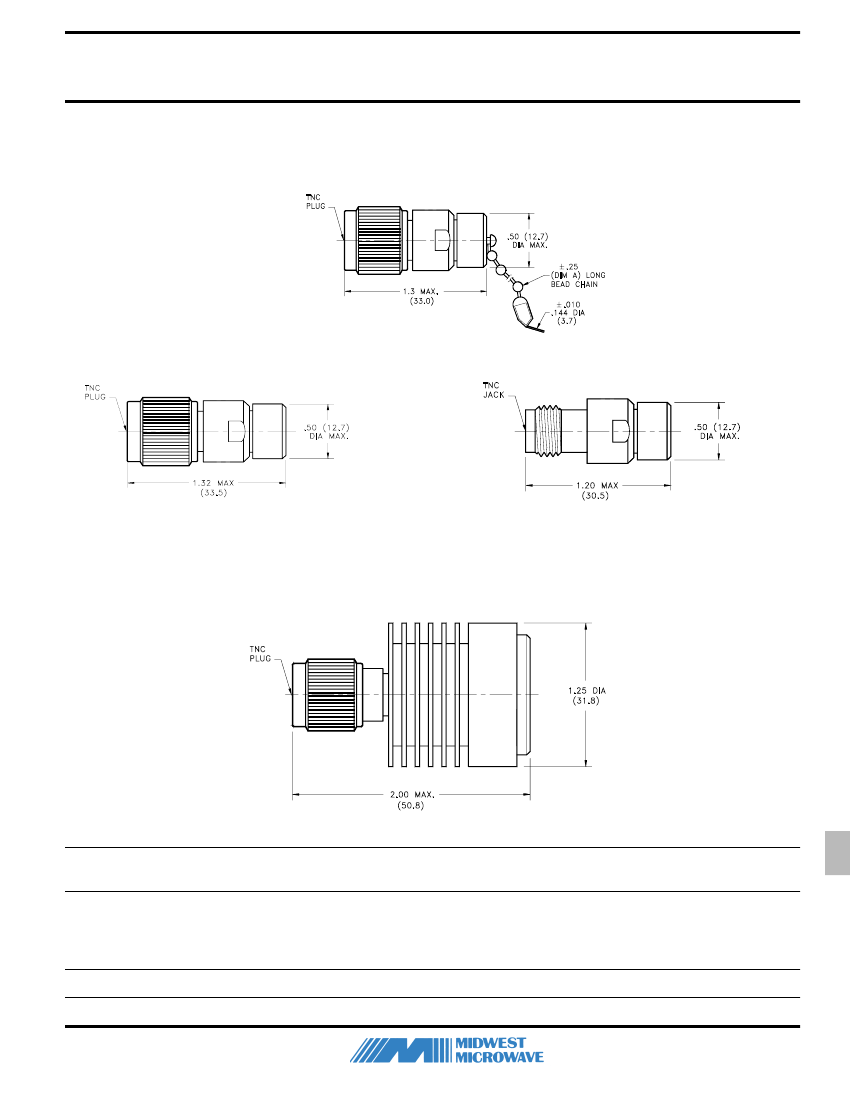

TNC TYPE TERMINATIONS

MIL-D-39030/5*

(Dummy Loads)

FIGURE 1

FIGURE 2

FIGURE 3

TNC TYPE 10 WATT TERMINATION

MIL-D-39030/8*

FIGURE 4

MILITARY

PART NO.

- 03

- 05

- 06

- 07

- 01

MIDWEST

PART NO.

M39030/5-03N

M39030/5-05N

M39030/5-06N

M39030/5-07N

M39030/8-01N

FIGURE

COMMERCIAL

ALTERNATE

TRM-2164-MC-TNC-00

TRM-2164-MC-TNC-02

TRM-2164-MO-TNC-10

TRM-2164-FO-TNC-10

TRM-2171-MO-TNC-07

Note:

1. * Qualification of MIL-D-39030/5 and /8 is in-process at time of printing. Please contact Midwest Microwave for current status.

259
