Two Way Broadband Power Division
•
•
•
•
DC-12.4 and DC-18.0 GHz bandwidth units
Symmetrical Loss and Phase Balance
Rugged Construction
Meets Mil-E-5400 and Mil-E16400 Environment
Power Dividers

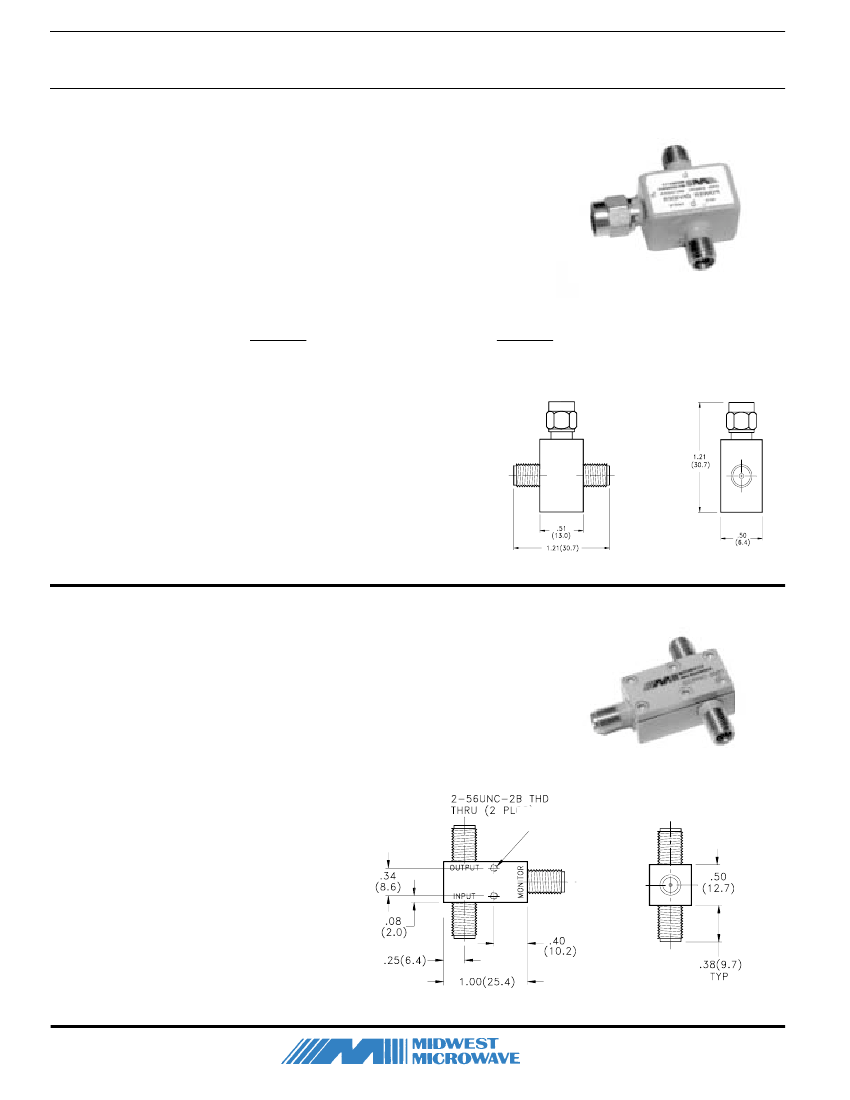

Midwest Microwave's series of Resistive Two Way Power Dividers are very
broadband devices that are small, lightweight, ruggedly constructed units that
posses consistent VSWR and insertion loss. They also exhibit excellent phase
and amplitude tracking. Units are available in wideband frequency bandwidths
covering the range of DC-12.4 GHz and DC-18.0 GHz. The units meet the
environmental specifications of MIL-E-5400 and MIL-E-16400.
DC-12.4 GHz
DC-18.0 GHz
Model Number:
PWD-2532-02-SMA-79
PWD-2533-02-SMA-79
SPECIFICATIONS
Frequency:
DC-12.4 GHz and DC - 18.0 GHz
Impedance:
50 Ohms
VSWR:
1.25 @ DC-10 GHz and 1.35 @ 10.0-18.0 GHz
Amplitude Balance:
0.2 dB @ DC-4.0 GHz
0.4 dB @ 4.0-10.0 GHz
0.5 dB @ 10.0-18.0 GHz
Phase Balance:
10 degrees max
Insertion Loss:
6 dB nom +1.2/-0.2 dB @ DC-10 GHz
6 dB nom +1.5/-0.2 dB @ 10-18 GHz
Power (In)
:
1 Watt avg
Operating Temperature:
-55
o
C - +125
o
C
Connectors:
Passivated Stainless Steel SMA*
R.F. Signal Monitor
•
•
•
•
Bite System Application
Model Number:
RFM-7020-26-SMA-79
Small Size, Light Weight
Rugged Construction
Meets Mil-E-5400 and Mil-E16400 Environment
Midwest Microwave offers a wide variety of Signal Monitor components. The unit
described here is a passive device that monitors the signal that is flowing in a
transmission line. It is a linear device that extracts a very small portion of the energy
in the primary line in order to monitor the presence of a signal on that line. The units
meet the environmental specifications of MIL-E-5400 and MIL-E-16400.
SPECIFICATIONS
Frequency:
DC-2.5 GHz
Impedance:
50 Ohms
VSWR:
1.20:1 max
±
Main RF Path Attenuation:
0.5 0.15 dB
Sampled Port Coupling:
26
±
1.2 dB
Power (In):
1 Watt avg
Operating Temperature:
-55
o
C - +125
o
C
Connectors:
Passivated Stainless Steel SMA*
Note: TNC, BNC, or Type N output connectors are available by substituting "TNC", "BNC", or "NNN" for "SMA" in the Model Number. Overall dimensions
will increase when these larger size connector interfaces are selected. Dimensional drawings available on request.
