Terminations
SMA Medium Power Types
DC - 18 GHz High Performance
2, 5, and 10 Watt Model selection
Broad Frequency Band Coverage
Low VSWR - 50 Ohm - High Performance.
Rugged Stainless Steel Interface Construction

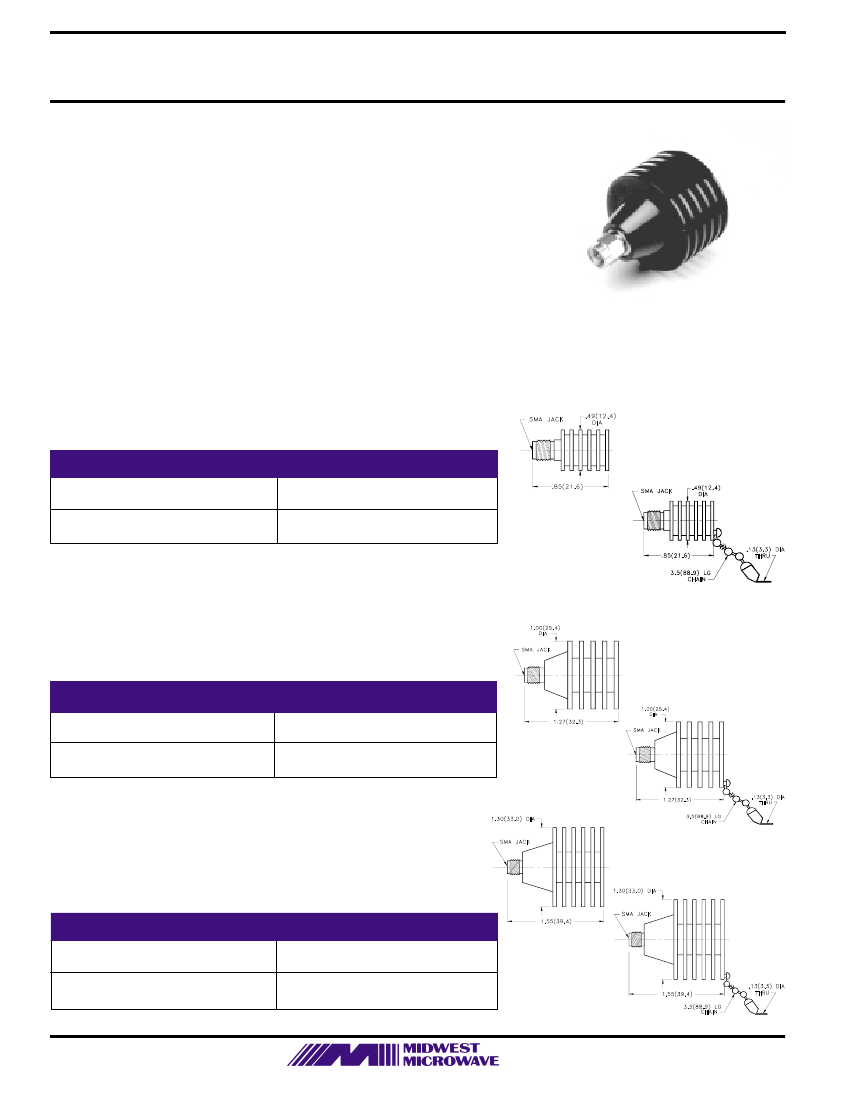

Midwest Microwave's SMA series of medium power coaxial Terminations
provide temperature stable, ruggedly built, precision performance in light
weight reasonably sized packages using stainless steel connectors and black
anodized finned aluminum housings. Input Power levels of 2, 5, and 10 Watts
are offered with low VSWR performance and units meet all of the stringent
environmental test requirements of MIL-E-5400 and MIL-E-16400.
2 Watts - DC - 18 GHz
Impedance:
50 Ohms
Frequency:
DC - 18.0 GHz
VSWR:
1.05 + 0.008 f (GHz)
Power:
2 Watts average @ +25
o
C derated linearly to 0.5 Watts @ +125
Peak Power:
500 Watts
Operating Temperature Range:
-54
o
C to +125
o
C
DC - 18.0 GHz
Female Jack
TRM-2057-F0-SMA-07
o
C
2057 Series
Model Numbers
Female Jack with Chain
TRM-2057-FC-SMA-07
5 Watts - DC - 18 GHz
Impedance:
50 Ohms
Frequency:
DC - 18.0 GHz
VSWR:
1.05 + 0.01 f (GHz)
Power:
5 Watts average @ +25
o
C derated linearly to 0.5 Watts @ +125
Peak Power:
1 Kilowatt
Operating Temperature Range:
-54
o
C to +125
o
C
DC - 18.0 GHz
Female Jack
TRM-2010-F0-SMA-07
o
C
2010 Series
Model Numbers
Female Jack with Chain
TRM-2010-FC-SMA-07
10 Watts - DC - 18 GHz
Impedance:
50 Ohms
Frequency:
DC - 18.0 GHz
VSWR:
1.05 + 0.01 f (GHz)
Power:
10 Watts average @ +25
o
C derated linearly to 1.0 Watts @ +125
Peak Power:
1 Kilowatt
Operating Temperature Range:
-54
o
C to +125
o
C
DC - 18.0 GHz
Female Jack
TRM-2013-F0-SMA-07
o
C
2013 Series
Model Numbers
Female Jack with Chain
TRM-2013-FC-SMA-07
