TC558128BFT-12: Description131,072-WORD BY 8-BIT CMOS STATIC RAM; Categorystorage storage; File Size354KB，10 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC558128BFT-12 Overview

131,072-WORD BY 8-BIT CMOS STATIC RAM

TC558128BFT-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TSOP2
package instruction	TSOP2, TSOP32,.46,32
Contacts	32
Reach Compliance Code	unknow
ECCN code	3A991.B.2.B
Maximum access time	12 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	13.34 mm
memory density	1048576 bi
Memory IC Type	CACHE SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSOP32,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum standby current	0.001 A
Minimum standby current	4.5 V
Maximum slew rate	0.19 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	10.16 mm
Base Number Matches	1

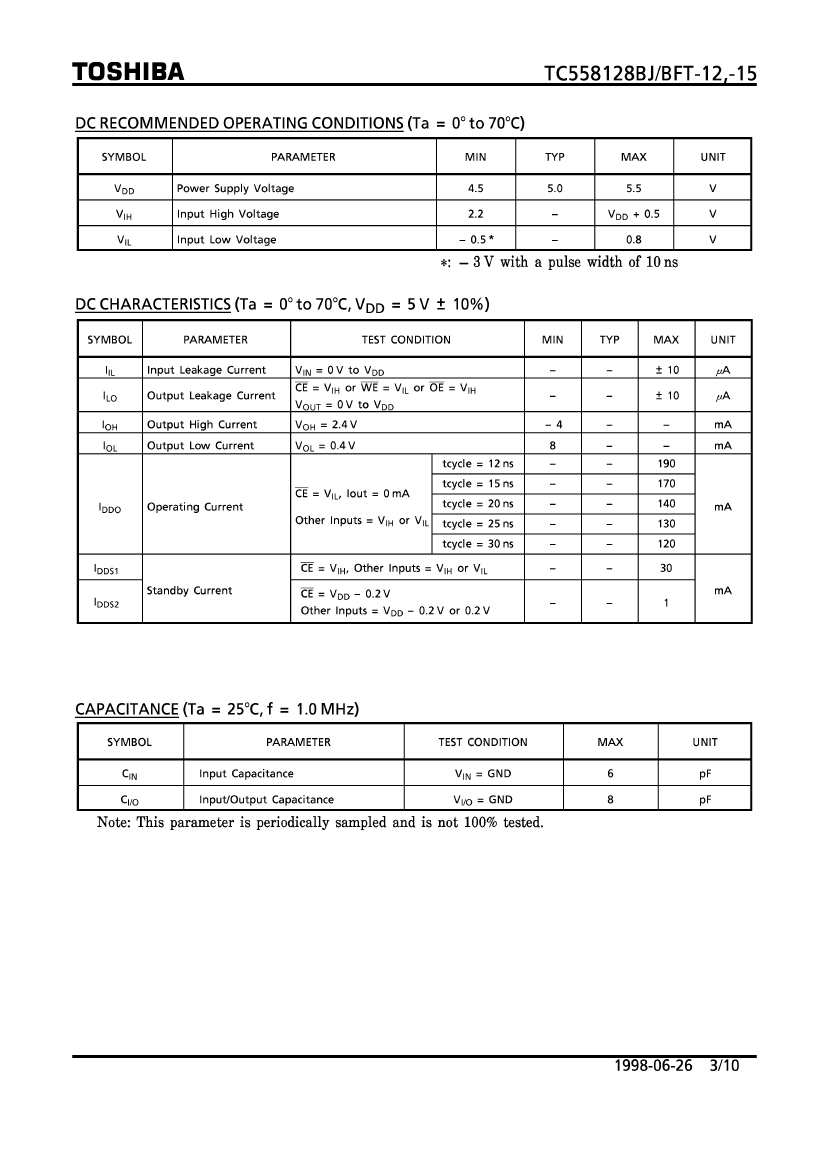

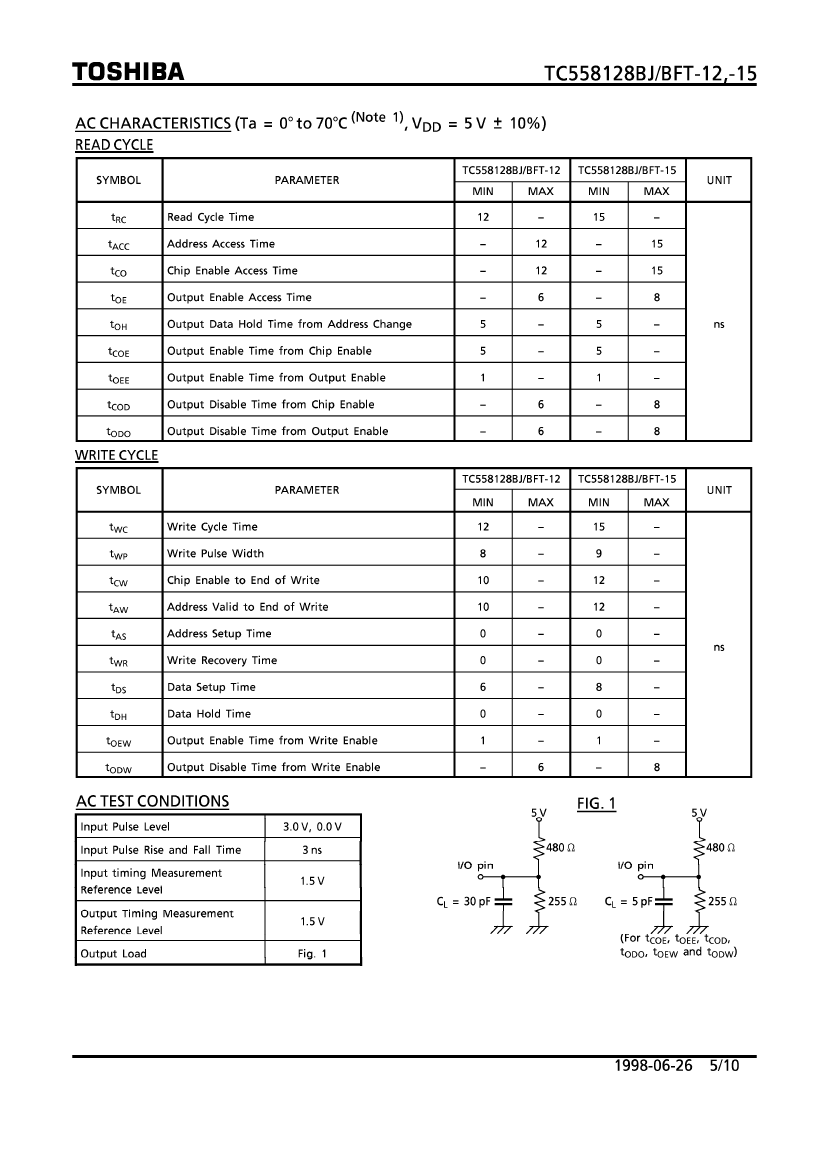

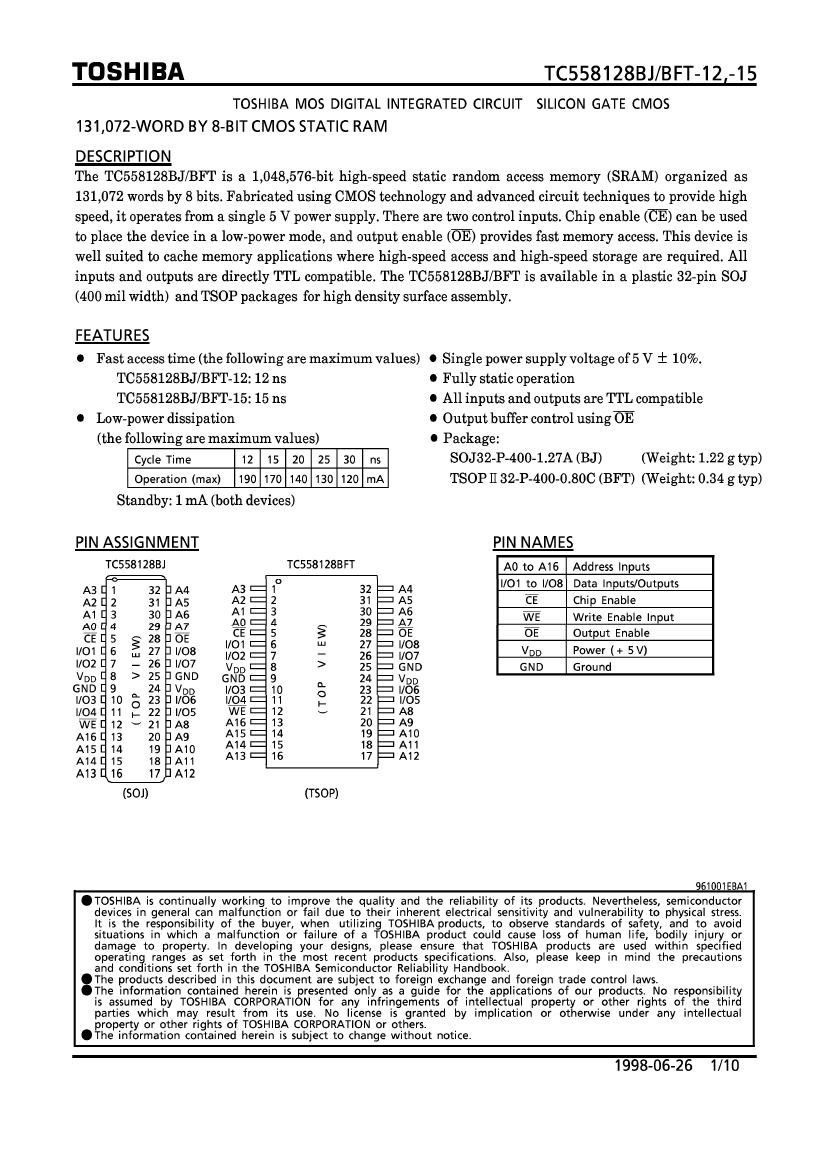

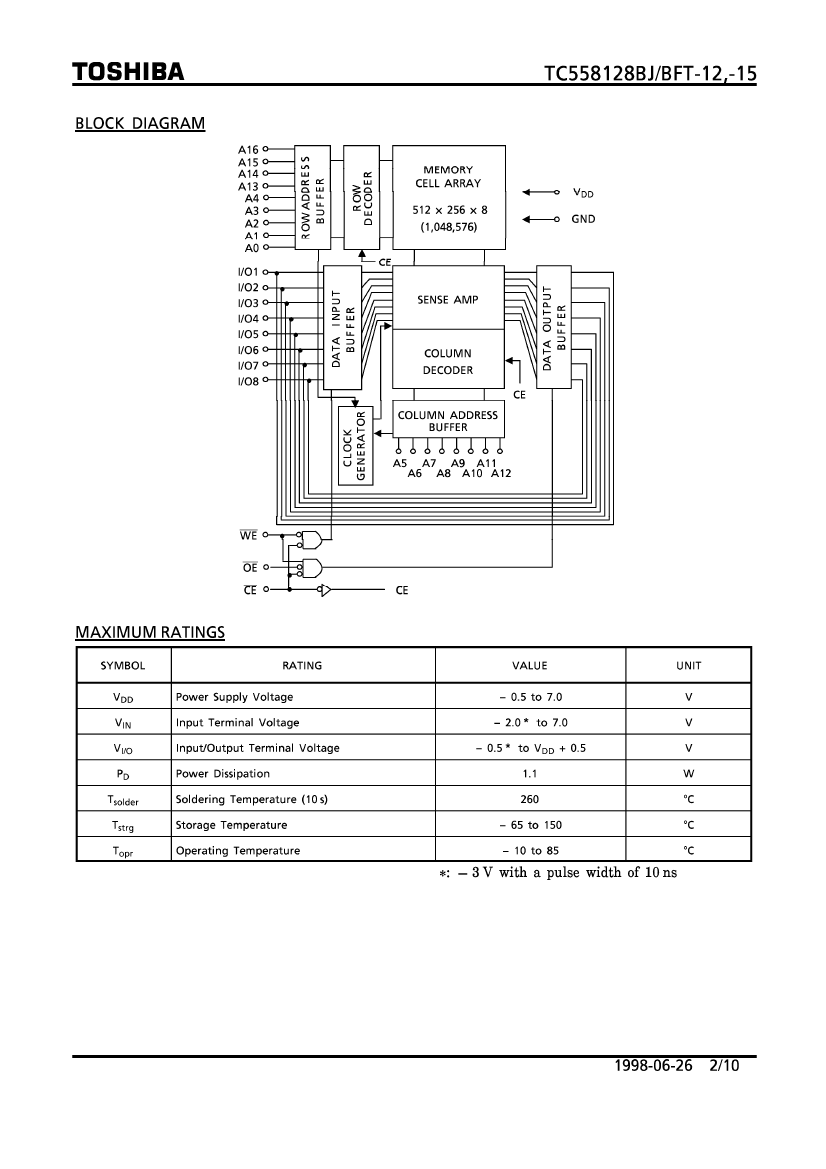

Preview

Download Datasheet

View All

TC558128BFT-12 Related Products

	TC558128BFT-12	TC558128BJ-12	TC558128BFT-15	TC558128BJ-15	TC558128BJ
Description	131,072-WORD BY 8-BIT CMOS STATIC RAM	131,072-WORD BY 8-BIT CMOS STATIC RAM	131,072-WORD BY 8-BIT CMOS STATIC RAM	131,072-WORD BY 8-BIT CMOS STATIC RAM	131,072-WORD BY 8-BIT CMOS STATIC RAM
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-
Parts packaging code	TSOP2	SOJ	TSOP2	SOJ	-
package instruction	TSOP2, TSOP32,.46,32	SOJ, SOJ32,.44	TSOP2, TSOP32,.46,32	SOJ, SOJ32,.44	-
Contacts	32	32	32	32	-
Reach Compliance Code	unknow	unknow	unknow	unknow	-
ECCN code	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	-
Maximum access time	12 ns	12 ns	15 ns	15 ns	-
I/O type	COMMON	COMMON	COMMON	COMMON	-
JESD-30 code	R-PDSO-G32	R-PDSO-J32	R-PDSO-G32	R-PDSO-J32	-
JESD-609 code	e0	e0	e0	e0	-
length	13.34 mm	20.96 mm	13.34 mm	20.96 mm	-
memory density	1048576 bi	1048576 bi	1048576 bi	1048576 bi	-
Memory IC Type	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	-
memory width	8	8	8	8	-
Number of functions	1	1	1	1	-
Number of terminals	32	32	32	32	-
word count	131072 words	131072 words	131072 words	131072 words	-
character code	128000	128000	128000	128000	-
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	-
organize	128KX8	128KX8	128KX8	128KX8	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	TSOP2	SOJ	TSOP2	SOJ	-
Encapsulate equivalent code	TSOP32,.46,32	SOJ32,.44	TSOP32,.46,32	SOJ32,.44	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	-
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	-
power supply	5 V	5 V	5 V	5 V	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	1.2 mm	3.7 mm	1.2 mm	3.7 mm	-
Maximum standby current	0.001 A	0.001 A	0.001 A	0.001 A	-
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V	-
Maximum slew rate	0.19 mA	0.19 mA	0.17 mA	0.17 mA	-
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	-
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	-
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	-
surface mount	YES	YES	YES	YES	-
technology	CMOS	CMOS	CMOS	CMOS	-
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	GULL WING	J BEND	GULL WING	J BEND	-
Terminal pitch	0.8 mm	1.27 mm	0.8 mm	1.27 mm	-
Terminal location	DUAL	DUAL	DUAL	DUAL	-
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	-
Base Number Matches	1	1	1	1	-
