Common Mode Chokes - Raidal
ctparts.com
CTHF2430 Series
From 2.4 mH to 68 mH
Not shown at actual size.
SPECIFICATIONS
* Indicates the inductance difference between the coil L1 and L2.
Part
Number
CTHF2430-683M0R4
CTHF2430-453M0R5
CTHF2430-333M0R6
CTHF2430-253M0R8
CTHF2430-203M1R0
CTHF2430-103M1R2
CTHF2430-452M1R5
CTHF2430-392M1R8
CTHF2430-332M2R0
CTHF2430-242M2R5
Inductance
(Min.)
(mH)
68
45
33
25
20
10
4.5
3.9
3.3
2.4
Inductance
Difference*
(µH Max.)
700
600
500
400
350
250
150
150
100
90
DCR
Max.
(W)
W
2.30
1.65
1.20
0.88
0.64
0.38
0.19
0.15
0.11
0.09
Rated Iac
Current (Max.)
(A)
0.4
0.5
0.6
0.8
1.0
1.2
1.5
1.8
2.0
2.5

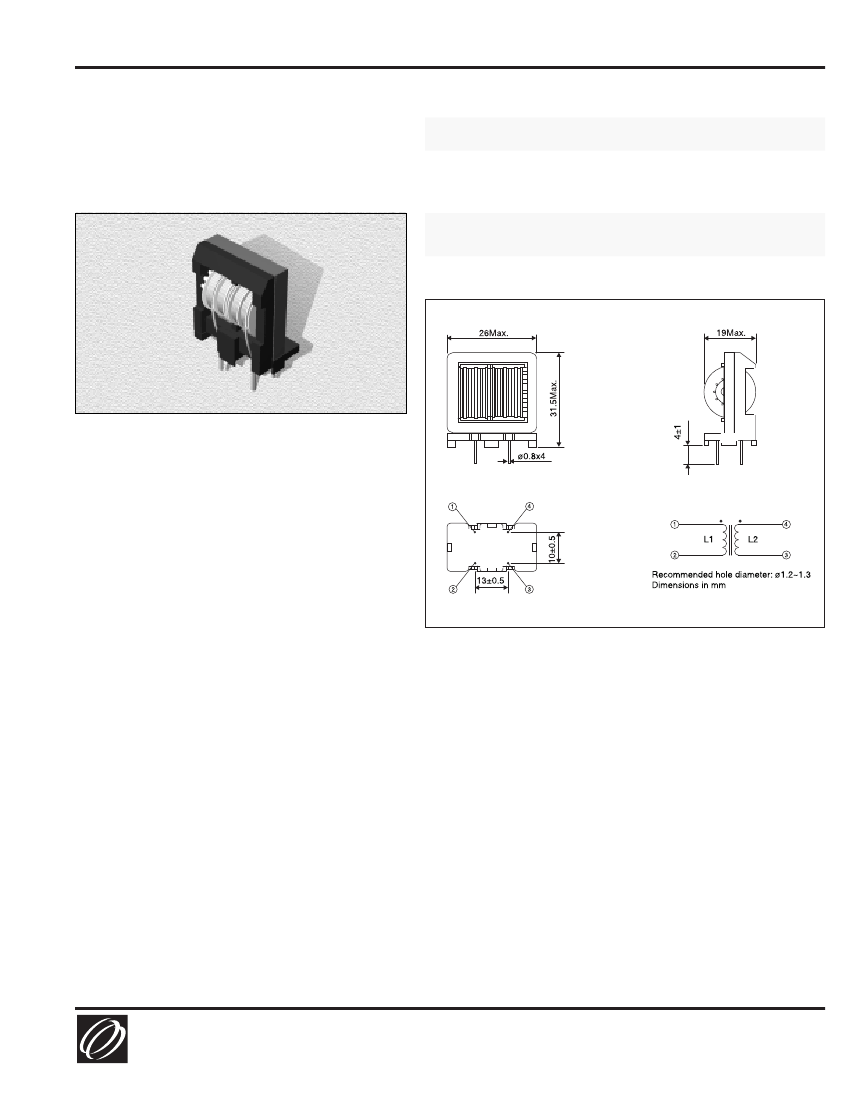

PHYSICAL DIMENSIONS
CHARACTERISTICS
Description:
Common mode choke coils.
Applications:
For AC power supply/compact, separable bobbin.
Rated Voltage:
250Vac
Operating Temperature Range:
-20°C to +105°C including self
temperature rise.
Temperature Rise:
45°C maximum each line.
Dielectric Withstanding Voltage:
2000Vac between each
winding for 1 minute.
Insulation Resistance:
100Mohm minimum between each
winding for 1 minute.
Additional Information:
Additional electrical & physical
information available upon request. Different inductance and
current products are available as well.
Samples available. See website for ordering information.
05.09.02
Technologies
Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2003 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
