CTHP1210F-R30M: Description1 ELEMENT, 0.3 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size462KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTHP1210F-R30M Overview

1 ELEMENT, 0.3 uH, GENERAL PURPOSE INDUCTOR, SMD

CTHP1210F-R30M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	5551
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	5551
structure	Shielded
DC Resistance	0.000442 Ω
Nominal inductance(L)	0.3 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CTHP1210F
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	11.5 mm
Package length	14 mm
Package form	SMT
Package width	13 mm
method of packing	TR
Maximum rated current	31.8 A
series	CTHP1210F
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.3 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

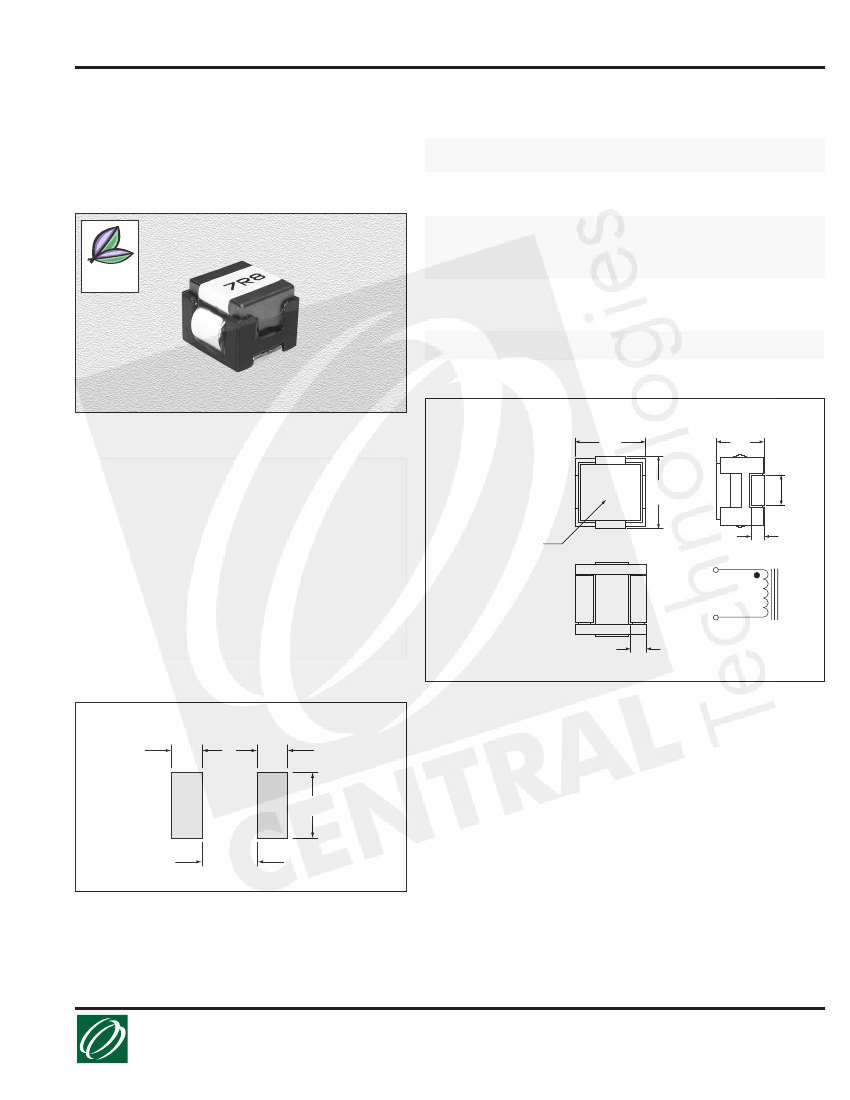

Power Inductors - Unshielded

ctparts.com

CTHP1210F Series

From .22 µH to 10 µH

Part

Number

CTHP1210F-R22M

CTHP1210F-R30M

CTHP1210F-R57M

CTHP1210F-R87M

Not shown at actual size.

CTHP1210F-1R0M

CTHP1210F-1R7M

CTHP1210F-2R3M

CTHP1210F-3R6M

CTHP1210F-5R1M

CTHP1210F-7R8M

CTHP1210F-100M

SPECIFICATIONS

Parts are available in ±20% tolerance only.

* Inductance drop by approximate 30% at Rated DC Current.

L Test

Freq.

(kHz)

300

DCR

Max.

Ω

(mΩ)

0.442

0.819

1.794

2.34

4.16

7.02

7.20

7.56

Inductance

(µH ±20%)

0.22

0.30

0.57

0.87

1.0

1.7

2.3

3.6

5.1

7.8

10

IDC

(A)

40.5

31.8

33.4

31.0

25.4

22.2

16.7

13.4

11.2

6.70

5.30

Compliant

RoHS

PHYSICAL DIMENSIONS

Size

mm

inches

A

Max.

13.0

0.51

B

Ref.

14.0

0.55

C

Max.

11.5

0.45

D

Typ.

6.0

0.23

E

Typ.

2.2

0.08

F

Typ.

3.0

0.11

CHARACTERISTICS

Description:

SMD unshielded power inductor

Applications:

Designed for high current, low voltage applications.

Low DCR, high efficiency. Next generation microprocessors, High

current DC-DC converters, Computers, etc.

Operating Temperature:

-40°C to +85°C

Inductance Tolerance:

±20%

Testing:

Tested on a HP4285A at 300 KHz , 0.25V

Packaging:

Tape & Reel

Marking:

Parts are marked with inductance code

Miscellaneous:

RoHS Compliant

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

A

C

XXX

Marking:

Inductance Code

B

D

E

1

2

F

PAD LAYOUT

Unit: mm

4.0

7.2

6.0

06.06.07

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
