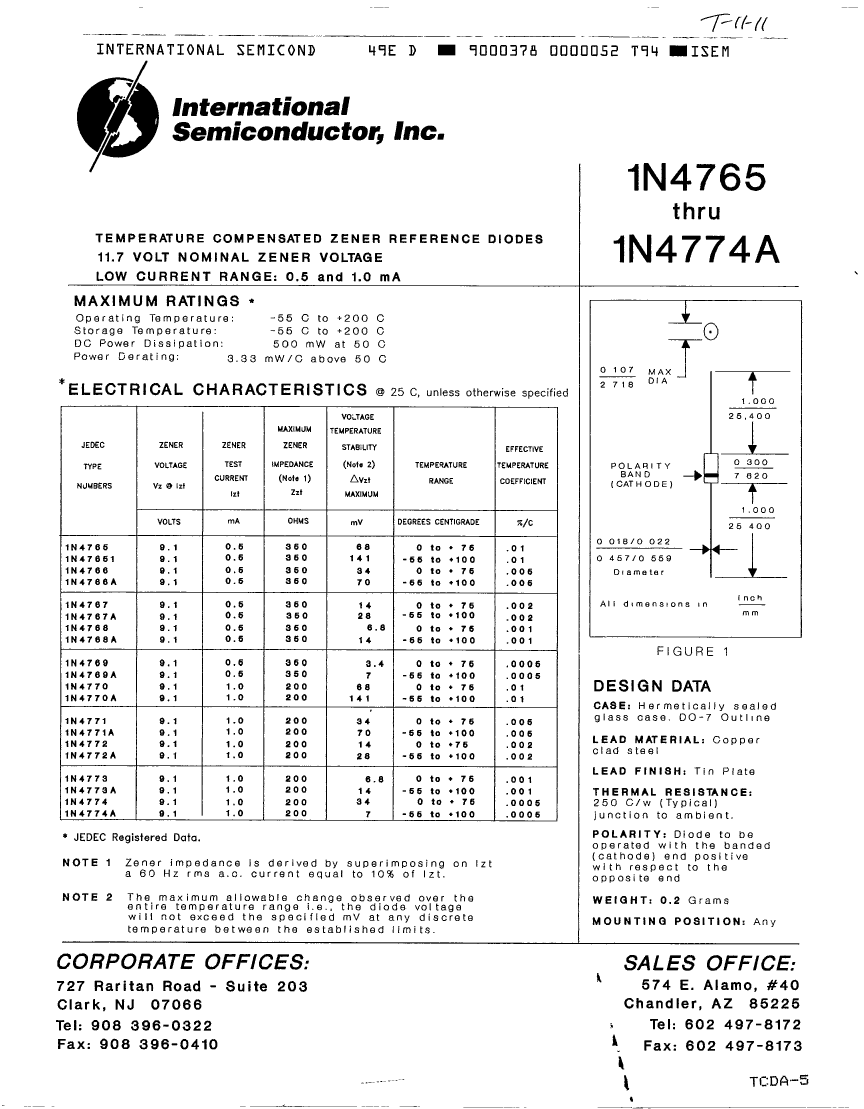

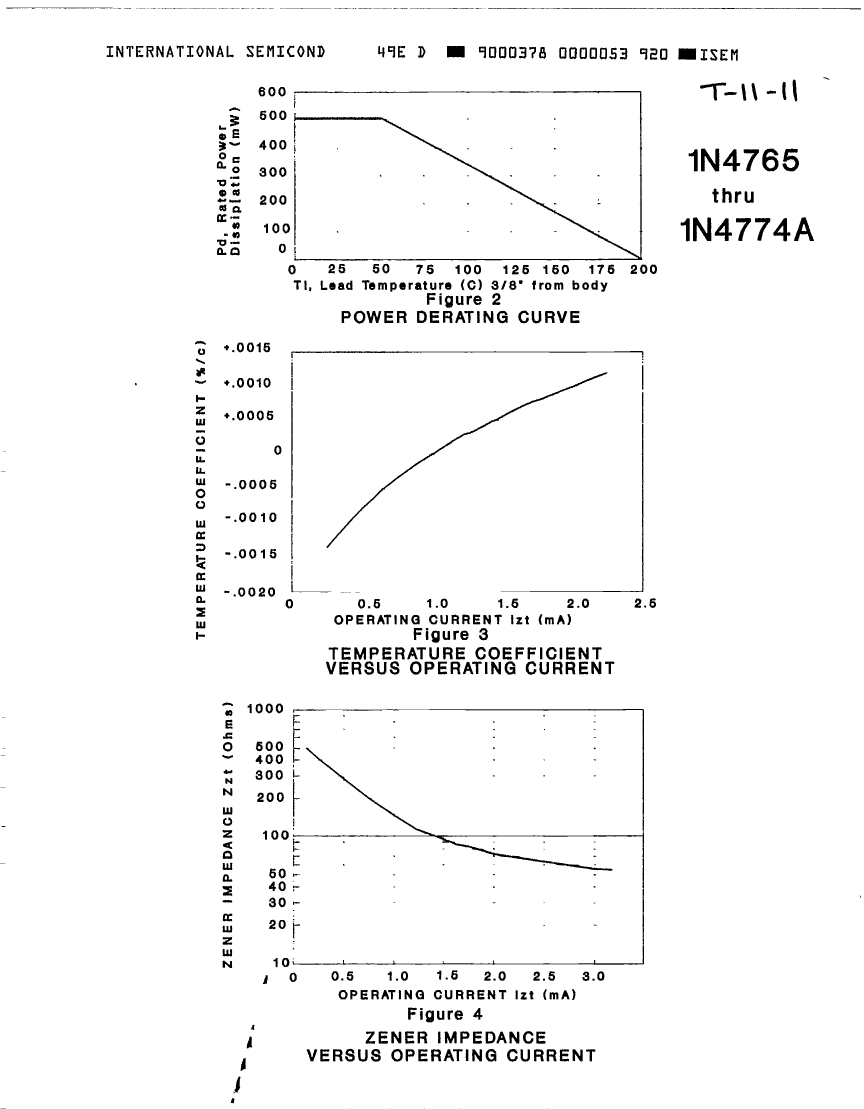

1N4774 datasheet, PDF - EEWORLD Datasheet

1N4774: DescriptionZener Diode, 11.7V V(Z), 5%, 0.5W, Silicon, DO-7, HERMETIC SEALED, DO-7, 2 PIN; CategoryDiscrete semiconductor diode; File Size66KB，2 Pages; ManufacturerInternational Semiconductor Inc

Download Datasheet Parametric View All

1N4774 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N4774	-	-	View	Buy Now

Zener Diode, 11.7V V(Z), 5%, 0.5W, Silicon, DO-7, HERMETIC SEALED, DO-7, 2 PIN

Parameter Name	Attribute value
Maker	International Semiconductor Inc
Parts packaging code	DO-7
package instruction	O-LALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	200 Ω
JEDEC-95 code	DO-7
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	9.1 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Voltage temperatureCoeff-Max	0.0585 mV/°C
Maximum voltage tolerance	5%
Working test current	1 mA
