CTHR15F-500K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CTHR15F-500K

CTHR15F-500K: Description1 ELEMENT, 50 uH, GENERAL PURPOSE INDUCTOR; CategoryPassive components inductor; File Size153KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTHR15F-500K Overview

1 ELEMENT, 50 uH, GENERAL PURPOSE INDUCTOR

CTHR15F-500K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.02 Ω
Nominal inductance(L)	50 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CTHRF
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum rated current	15 A
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

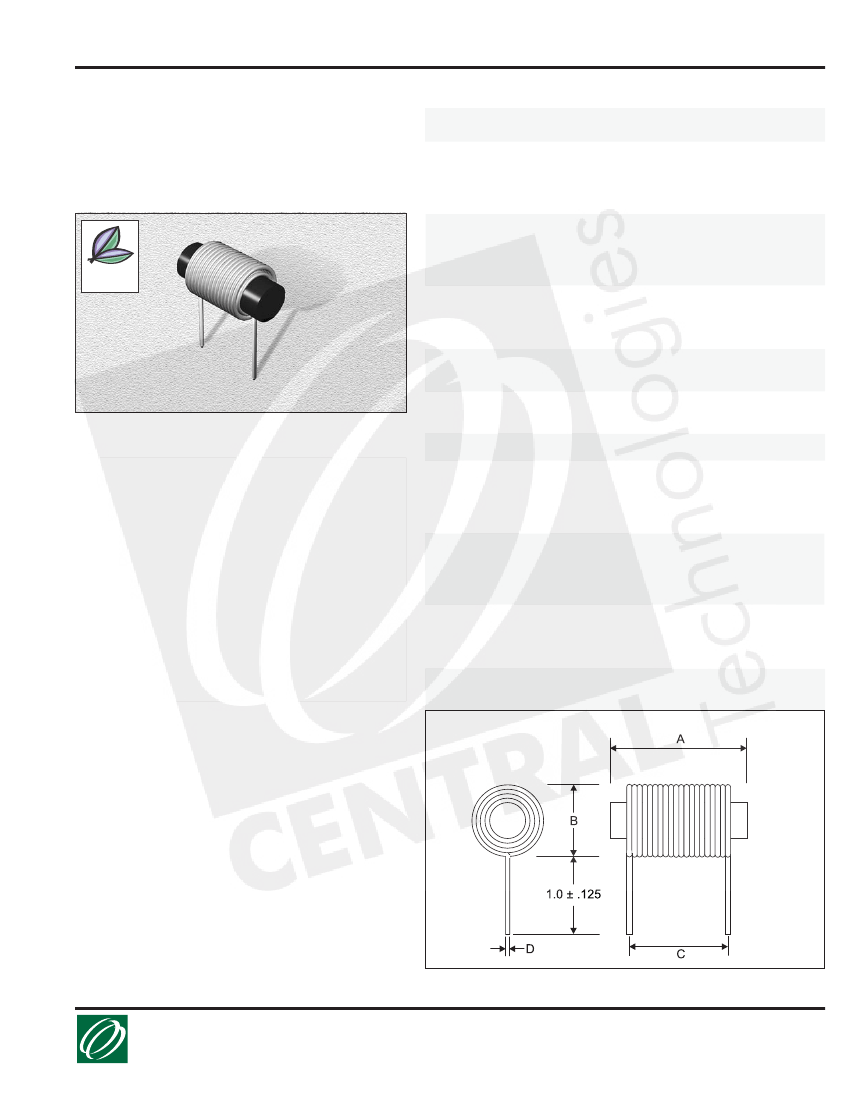

High Current Inductors

ctparts.com

SPECIFICATIONS

CTHRF Series

From 5 µH to 250 µH

Not shown at actual size.

Part

Number

CTHR3F-50K

CTHR3F-100K

CTHR3F-270K

CTHR3F-500K

CTHR3F-101K

CTHR3F-151K

CTHR3F-251K

CTHR5F-50K

CTHR5F-100K

CTHR5F-270K

CTHR5F-500K

CTHR5F-680K

CTHR5F-101K

CTHR5F-151K

CTHR10F-50K

CTHR10F-100K

CTHR10F-270K

CTHR10F-500K

CTHR10F-680K

CTHR10F-101K

CTHR15F-50K

CTHR15F-100K

CTHR15F-270K

CTHR15F-500K

Inductance

(µH)

5.0

100

150

250

5.0

100

150

5.0

100

5.0

DCR

Max.

Ω

(Ω)

0.015

0.018

0.035

0.050

0.065

0.075

0.090

0.012

0.015

0.025

0.030

0.035

0.050

0.060

0.010

0.012

0.018

0.025

0.027

0.030

0.008

0.010

0.015

0.020

Rated

(A)

10.0

9.0

7.0

5.6

5.2

5.0

14.0

12.0

9.0

8.0

7.5

7.0

19.0

16.0

12.5

11.0

10.0

24.0

20.0

16.0

15.0

Incr

(A)

8.0

6.0

5.0

4.0

9.0

7.0

5.0

8.0

7.0

Compliant

RoHS

PHYSICAL DIMENSIONS

CHARACTERISTICS

Description:

High current filter inductor.

Applications:

Noise filtering for switching regulators, power

amplifiers, power supplies, and SCR and Triac control circuits.

Operating Temperature:

-55°C to +125°C (no load)

-55°C to +75°C (at full rated current).

Inductance Tolerance:

K = ±10%

Inductance:

Measured at 1.0 volt with zero DC current.

Packaging:

Bulk pack.

Testing:

Inductance is tested on an HP4262A at 1.0 kHz.

Sleeving:

Flame retardant polyolefin UL type VW-1 per MIL-I-

23053/5, marked with inductance and tolerance.

Additional Information:

Additional electrical & physical

information available upon request

Miscellaneous:

RoHS Compliant.

Samples available. See website for ordering information.

Part #

CTHR3F-50K

CTHR3F-100K

CTHR3F-270K

CTHR3F-500K

CTHR3F-101K

CTHR3F-151K

CTHR3F-251K

CTHR5F-50K

CTHR5F-100K

CTHR5F-270K

CTHR5F-500K

CTHR5F-680K

CTHR5F-101K

CTHR5F-151K

CTHR10F-50K

CTHR10F-100K

CTHR10F-270K

CTHR10F-500K

CTHR10F-680K

CTHR10F-101K

CTHR15F-50K

CTHR15F-100K

CTHR15F-270K

CTHR15F-500K

Max.

0.875

1.125

0.875

1.125

1.375

1.625

0.875

1.125

0.875

1.125

1.375

1.625

1.125

1.375

1.125

1.375

1.625

1.375

1.687

1.375

1.625

Max.

0.600

0.625

0.800

0.625

0.840

0.860

0.635

0.935

0.700

1.000

Max.

0.500

0.687

0.437

0.750

0.937

1.062

1.312

0.750

1.000

0.562

0.750

0.875

1.000

1.250

0.812

1.218

0.687

0.937

1.125

1.312

0.937

1.50

0.937

1.125

Max.

0.042

0.058

0.065

0.082

12.20.05

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
