1N4780A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N4780A

1N4780A: DescriptionZener Diode, 8.5V V(Z), 5%, 0.25W; CategoryDiscrete semiconductor diode; File Size114KB，2 Pages; ManufacturerCodi Semiconductor Inc

Download Datasheet Parametric Compare View All

1N4780A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N4780A	-	-	View	Buy Now

1N4780A Overview

Zener Diode, 8.5V V(Z), 5%, 0.25W

1N4780A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Codi Semiconductor Inc
Reach Compliance Code	unknow
Configuration	SINGLE
Diode type	ZENER DIODE
Maximum dynamic impedance	100 Ω
JESD-609 code	e0
Number of components	1
Maximum operating temperature	175 °C
Maximum power dissipation	0.25 W
Nominal reference voltage	8.5 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage tolerance	5%
Working test current	1 mA

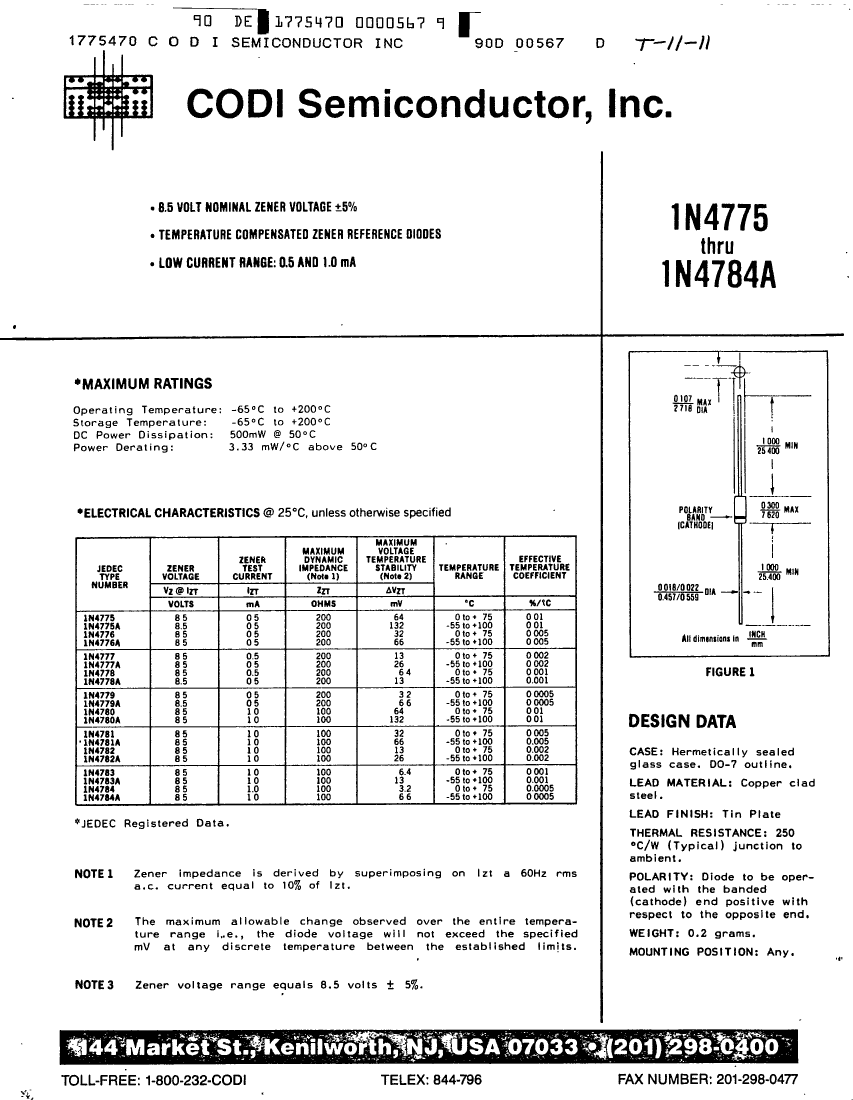

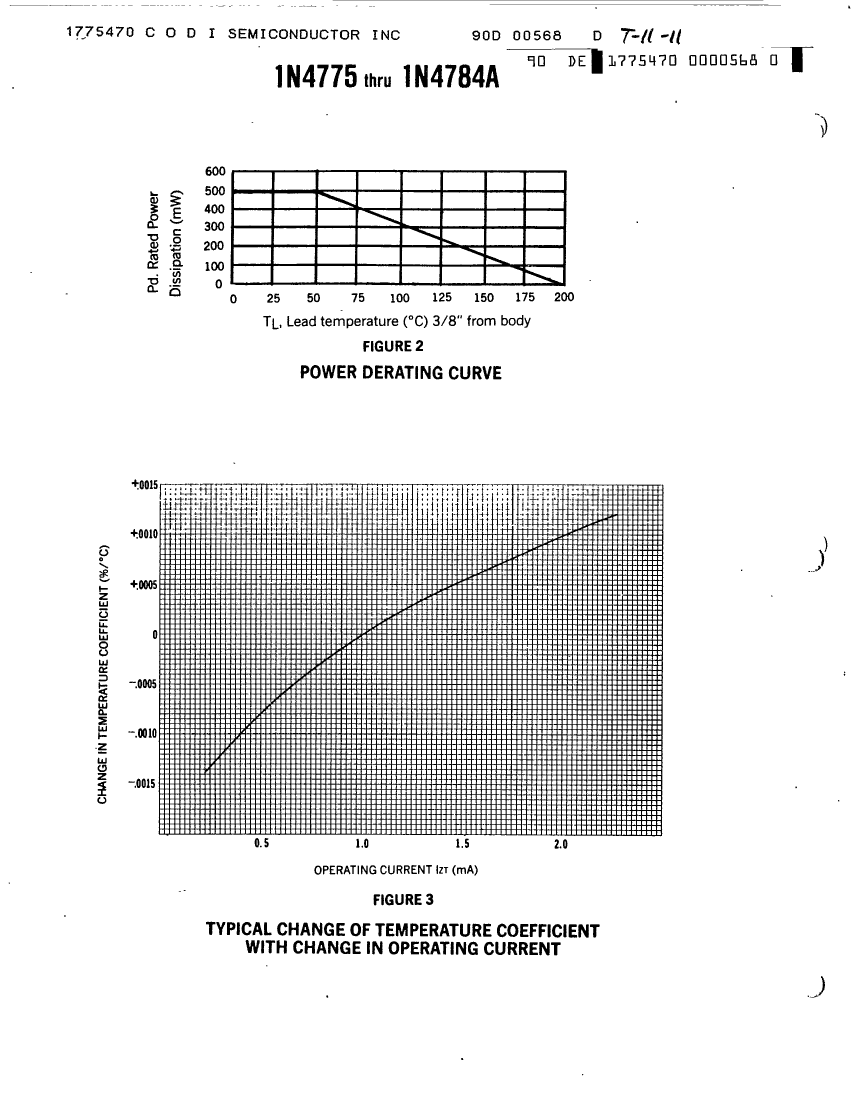

Preview

Download Datasheet

View All

1N4780A Related Products

	1N4780A	1N4776A	1N4777	1N4778	1N4779A	1N4781A	1N4782	1N4782A	1N4784	1N4784A
Description	Zener Diode, 8.5V V(Z), 5%, 0.25W	Zener Diode, 8.5V V(Z), 5%, 0.25W	Zener Diode, 8.5V V(Z), 5%, 0.25W	Zener Diode, 8.5V V(Z), 5%, 0.25W	Zener Diode, 8.5V V(Z), 5%, 0.25W	Zener Diode, 8.5V V(Z), 5%, 0.25W	Zener Diode, 8.5V V(Z), 5%, 0.25W	Zener Diode, 8.5V V(Z), 5%, 0.25W	Zener Diode, 8.5V V(Z), 5%, 0.25W	Zener Diode, 8.5V V(Z), 5%, 0.25W
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Codi Semiconductor Inc	Codi Semiconductor Inc	Codi Semiconductor Inc	Codi Semiconductor Inc	Codi Semiconductor Inc	Codi Semiconductor Inc	Codi Semiconductor Inc	Codi Semiconductor Inc	Codi Semiconductor Inc	Codi Semiconductor Inc
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	100 Ω	200 Ω	200 Ω	200 Ω	200 Ω	100 Ω	100 Ω	100 Ω	100 Ω	100 Ω
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum power dissipation	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W
Nominal reference voltage	8.5 V	8.5 V	8.5 V	8.5 V	8.5 V	8.5 V	8.5 V	8.5 V	8.5 V	8.5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%	5%	5%	5%	5%
Working test current	1 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	1 mA	1 mA	1 mA	1 mA	1 mA
