BFR96: DescriptionRF Small Signal Bipolar Transistor, 0.075A I(C), Ultra High Frequency Band, Silicon, NPN, MACRO-T; CategoryDiscrete semiconductor The transistor; File Size104KB，1 Pages; ManufacturerSpace Power Electronics Inc

Download Datasheet Parametric View All

BFR96 Overview

RF Small Signal Bipolar Transistor, 0.075A I(C), Ultra High Frequency Band, Silicon, NPN, MACRO-T

BFR96 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Space Power Electronics Inc
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.075 A
Configuration	Single
Minimum DC current gain (hFE)	30
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.5 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Transistor component materials	SILICON

Preview

Download Datasheet

View All

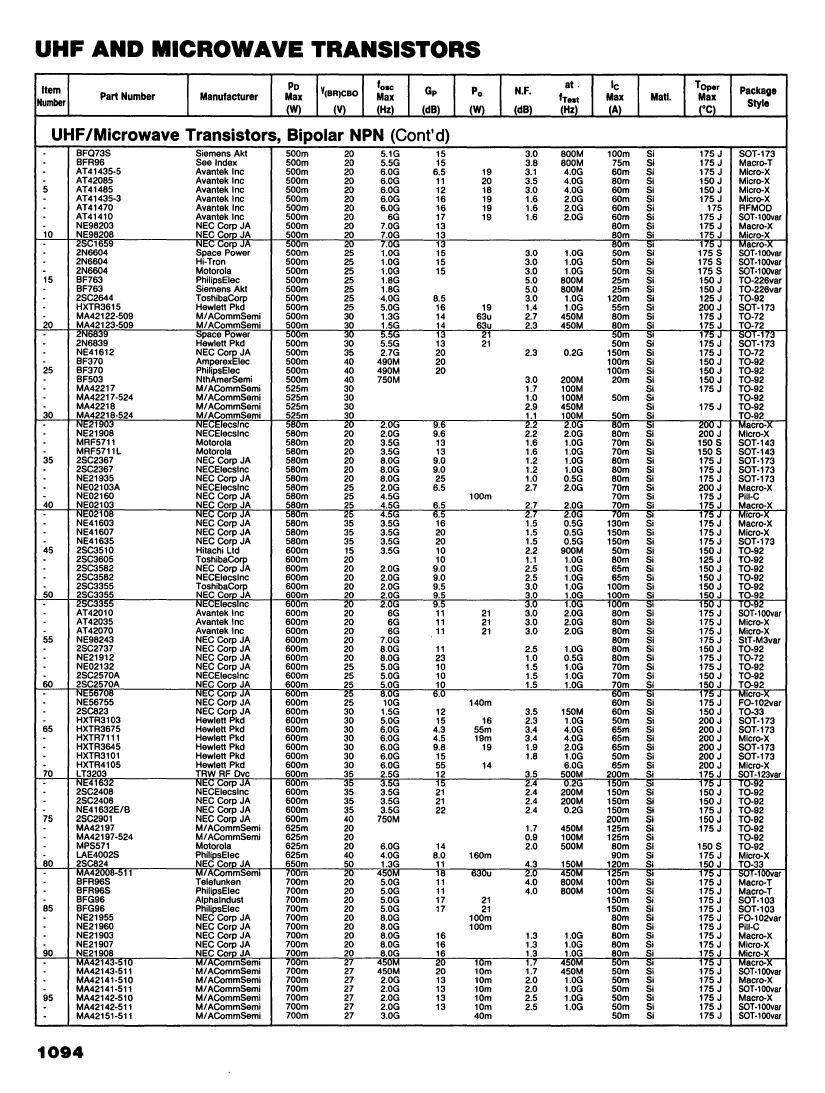

UHF AND MICROWAVE TRANSISTORS
