SAW Components
SAW GPS + COMPASS + GLONASS
filter
Series/type:
Ordering code:
Date:
Version:
B8813
B39162B8813P810
June 20, 2013
2.0
©
EPCOS AG 2013. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SAW Components
SAW GPS + COMPASS + GLONASS filter
Data Sheet
Application
s
Low-loss RF GPS + COMPASS + GLONASS filter
s
Simultaneous usage of GPS, COMPASS and GLO-
s
s
s
s
s
s
B8813
1582.47 MHz
NASS bands
Usable passbands: 2.0 MHz for GPS, 4.092 MHz for
COMPASS and 8.34 MHz for GLONASS
Very low insertion attenuation
High out of band selectivity
Filter impedance 50
Ω
Unbalanced to unbalanced operation
No matching network required for operation at 50
Ω
Features
package height 0.45 mm max.
RoHS compatible
Approximate weight 0.0012 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Electrostatic Sensitive Device
(ESD)
Moisture Sensitivity Level
3 (MSL3)
0.25
0.18
0.5
s
Package size 1.1 x 0.9 mm
2
s
s
s
s
s
s
2
1
3
bottom view
5
4
0.385 0.385
0.45 max.
0.4
side view
0.9
1.1
top view
Pin configuration
s
1
s
4
s
2,3,5
Input unbalanced
Output unbalanced
To be grounded
Please read
cautions and warnings and
important notes
at the end of this document.
2
June 20, 2013
SAW Components
SAW GPS + COMPASS + GLONASS filter
Data Sheet
Characteristics of Filter
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –30 ˚C to +85˚C
Z
S
=
50
Ω
Z
L
=
50
Ω
B8813
typ.
@ 25 ˚C
1582.47
B8813
1582.47 MHz
min.
Center frequency
Maximum insertion attenuation
1559.052... 1563.144 MHz
1574.42 ... 1576.42 MHz
1597.55 ... 1605.89 MHz
VSWR Input
1559.052... 1563.144 MHz
1574.42 ... 1576.42 MHz
1597.55 ... 1605.89 MHz
VSWR Output
1559.052... 1563.144 MHz
1574.42 ... 1576.42 MHz
1597.55 ... 1605.89 MHz
Group delay ripple
1)
(p-p)
1597.55 ... 1605.89 MHz
Attenuation
10.0
960.0
1710.0
1785.0
1990.0
2280.0
2400.0
2500.0
2700.0
3000.0
1)
max.
—
MHz
f
C
α
max
—
—
—
—
1.0
0.85
1.2
1.9
1.4
1.9
dB
dB
dB
—
—
—
1.50
1.25
1.55
1.9
1.8
1.9
—
—
—
∆τ
—
α
1.50
1.25
1.55
1.9
1.8
1.9
3
12
ns
...
...
...
...
...
...
...
...
...
...
960.0
1463.0
1785.0
1990.0
2280.0
2400.0
2500.0
2700.0
3000.0
6000.0
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
47
36
35
35
35
35
33
32
28
15
50
40
39
39
39
39
38
36
33
22
—
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Measured with an aperture of 2 MHz
Please read
cautions and warnings and
important notes
at the end of this document.
3
June 20, 2013
SAW Components
SAW GPS + COMPASS + GLONASS filter
Data Sheet
Maximum ratings of Filter
Operable temperature range
Storage temperature range
DC voltage
ESD voltage
Input power (10000 h, 55˚C)
777 to 915 MHz
1710 to 2200 MHz
1)
2)
B8813
1582.47 MHz
T
T
stg
V
DC
V
ESD
P
IN
P
IN
–30/+85
–40/+85
5
1)
50
2)
28
28
˚C
˚C
V
V
dBm
dBm
machine model
1/8 duty cycle,
effective power in the on-state
1/8 duty cycle,
effective power in the on-state
168h Damp Heat Steady State acc. to IEC60068-2-67 Cy
acc. to JESD22-A115B (MM - Machine Model), 10 negative & 10 positive pulses
Please read
cautions and warnings and
important notes
at the end of this document.
4
June 20, 2013
SAW Components
SAW GPS + COMPASS + GLONASS filter
Data Sheet

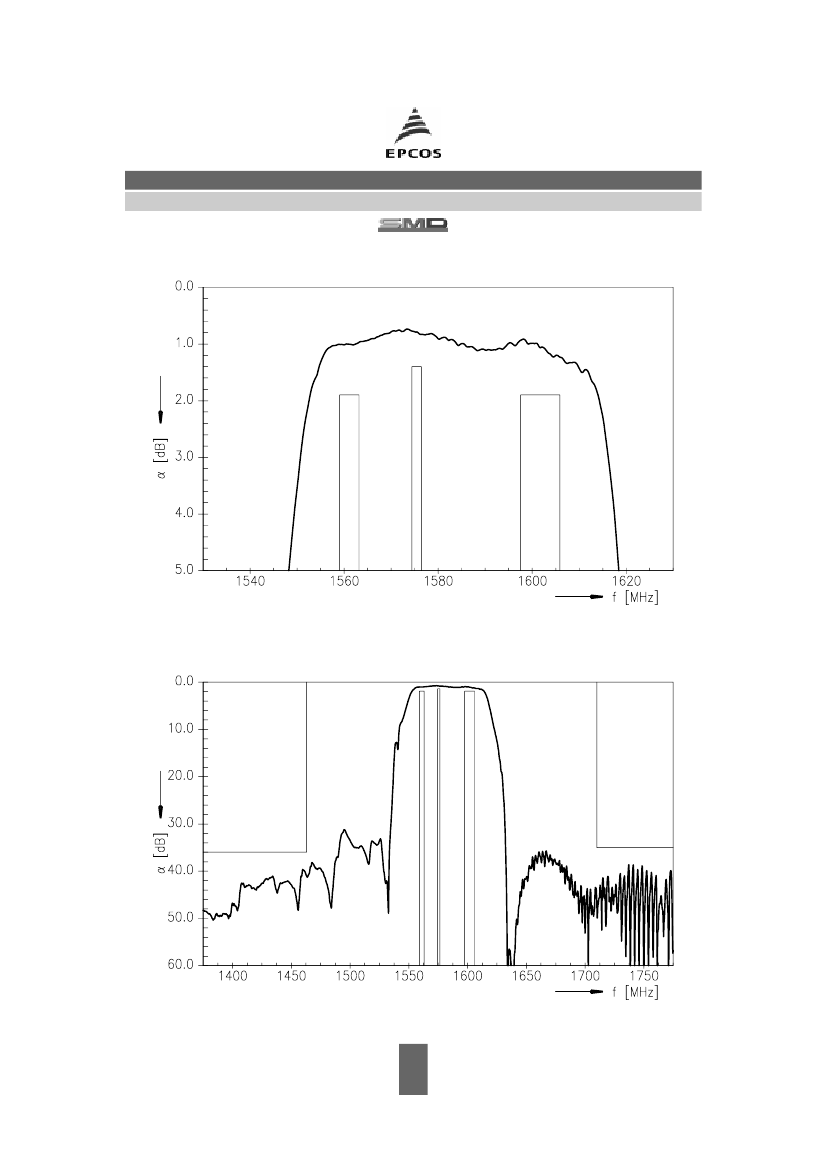

Transfer function passband
B8813
1582.47 MHz
Transfer function narrowband
Please read
cautions and warnings and
important notes
at the end of this document.
5
June 20, 2013
