PTC thermistors
Limit temperature sensors,
probe assemblies
Series/Type:
Date:
B59801
March 2006
© EPCOS AG 2006. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
Sensors
Limit temperature sensors, probe assemblies
D801
Applications
Limit temperature sensor
Features
Insulated screw-type metal case
Thread M3
Tinned leads
Marked with nominal threshold temperature and type designation
Characteristics for nominal threshold temperatures T
NTT
= 90 to 120
°C
conform with DIN 44081
Fast response due to small dimensions
RoHS-compatible
Delivery mode
Bulk
Dimensional drawing
Dimensions in mm
General technical data
Max. operating voltage
Max. measuring voltage
Rated resistance
Insulating test voltage
Thermal threshold time
Operating temperature range
Operating temperature range
(T
A
= 0 ... 40
°C)
V
max
(T
A
= 25
°C
... T
NTT
+23 K) V
meas,max
(V
PTC
≤
2.5 V)
R
R
V
ins
t
a
(V
≤
V
meas,max
)
T
op
(V = V
max
)
T
op
30
7.5
≤100
1.5
<20
40/ T
NTT
+23
0/+40
VDC
VDC
Ω
kVAC
s
°C
°C
Please read
Important notes
and
Cautions and warnings
at the end of this document.
Page 2 of 7
Sensors
Limit temperature sensors, probe assemblies
D801
Electrical specifications and ordering codes
T
NTT
R
(T
NTT
5 K)
(V
PTC
≤
2.5 V)
Ω
≤
570
≤
570
≤
570
≤
550
≤
550
≤
550
≤
550
R
(T
NTT
+ 5 K)
(V
PTC
≤
2.5 V)
Ω
≥
570
≥
570
≥
570
≥
1330
≥
1330
≥
1330
≥
1330
R
(T
NTT
+ 15 K)
(V
PTC
≤
7.5 V)
Ω
-
-
-
≥
4k
≥
4k
≥
4k
≥
4k
R
(T
NTT
+ 23 K)
(V
PTC
≤
2.5 V)
Ω
≥
10 k
≥
10 k
≥
10 k
-
-
-
-
Ordering code
°C
60
70
80
90
100
110
120
B59801D0060A040
B59801D0070A040
B59801D0080A040
B59801D0090A040
B59801D0100A040
B59801D0110A040
B59801D0120A040
Please read
Important notes
and
Cautions and warnings
at the end of this document.
Page 3 of 7
Sensors
Limit temperature sensors, probe assemblies
D801

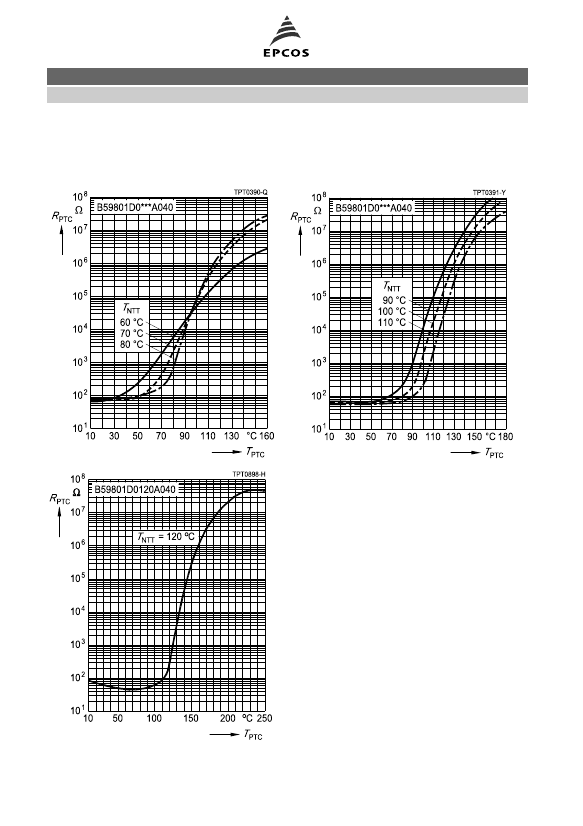

Characteristics (typical)
PTC resistance R
PTC
versus PTC temperature T
PTC
(measured at low signal voltage)
Please read
Important notes
and
Cautions and warnings
at the end of this document.
Page 4 of 7
Sensors
Limit temperature sensors, probe assemblies
D801
Cautions and warnings
General
EPCOS thermistors are designed for specific applications and should not be used for purposes
not identified in our specifications, application notes and data books unless otherwise agreed
with EPCOS during the design-in-phase.
Ensure suitability of thermistor through reliability testing during the design-in phase. The
thermistors should be evaluated taking into consideration worst-case conditions.
Storage
Store thermistors only in original packaging. Do not open the package before storage.
Storage conditions in original packaging: storage temperature 25
°C
... +45
°C,
relative
humidity
≤75%
annual mean, maximum 95%, dew precipitation is inadmissible.
Avoid contamination of thermistors surface during storage, handling and processing.
Avoid storage of thermistor in harmful environment with effect on function on long-term
operation (examples given under operation precautions).
Use thermistor within 6 months after delivery.
Handling
PTCs must not be dropped. Chip-offs must not be caused during handling of PTCs.
Components must not be touched with bare hands. Gloves are recommended.
Avoid contamination of thermistor surface during handling.
Soldering
Use rosin-type flux or non-activated flux.
Insufficient preheating may cause ceramic cracks.
Rapid cooling by dipping in solvent is not recommended.
Complete removal of flux is recommended.
Mounting
Electrode must not be scratched before/during/after the mounting process.
Contacts and housing used for assembly with thermistor have to be clean before mounting.
Especially grease or oil must be removed.
When PTC thermistors are encapsulated with sealing material, the precautions given in chapter
"Mounting instructions", "Sealing and potting" must be observed.
When the thermistor is mounted, there must not be any foreign body between the electrode of
the thermistor and the clamping contact.
The minimum force of the clamping contacts pressing against the PTC must be 10 N.
During operation, the thermistor’s surface temperature can be very high. Ensure that adjacent
components are placed at a sufficient distance from the thermistor to allow for proper cooling at
the thermistors.
Ensure that adjacent materials are designed for operation at temperatures comparable to the
surface temperature of thermistor. Be sure that surrounding parts and materials can withstand
this temperature.
Avoid contamination of thermistor surface during processing.
Please read
Important notes
and
Cautions and warnings
at the end of this document.
Page 5 of 7
