PKL 4316 PIT
• High Efficiency, 90% Typ. at 11A (full
load)
• High Power Density, 106.7 W/in
3
• Fast Dynamic Response, 100
µs,
±750 mVpeak Typ
• Low Output Ripple, 50 mVp-p Typ.
• Parallelable with no external
components
• 1,500 V dc isolation voltage
• Max. case temperature +100°C
• Demonstrated compliance with
isolation requirements equivalent to
Basic Isolation per UL60 950
• UL/UL
C
1950 and UL/UL
C
60 950
Recognized
• MTBF > 3 million hours in accordance
with Bellcore TR 332
• Input Transient Specification 100V, 100ms
Advanced Data Sheet

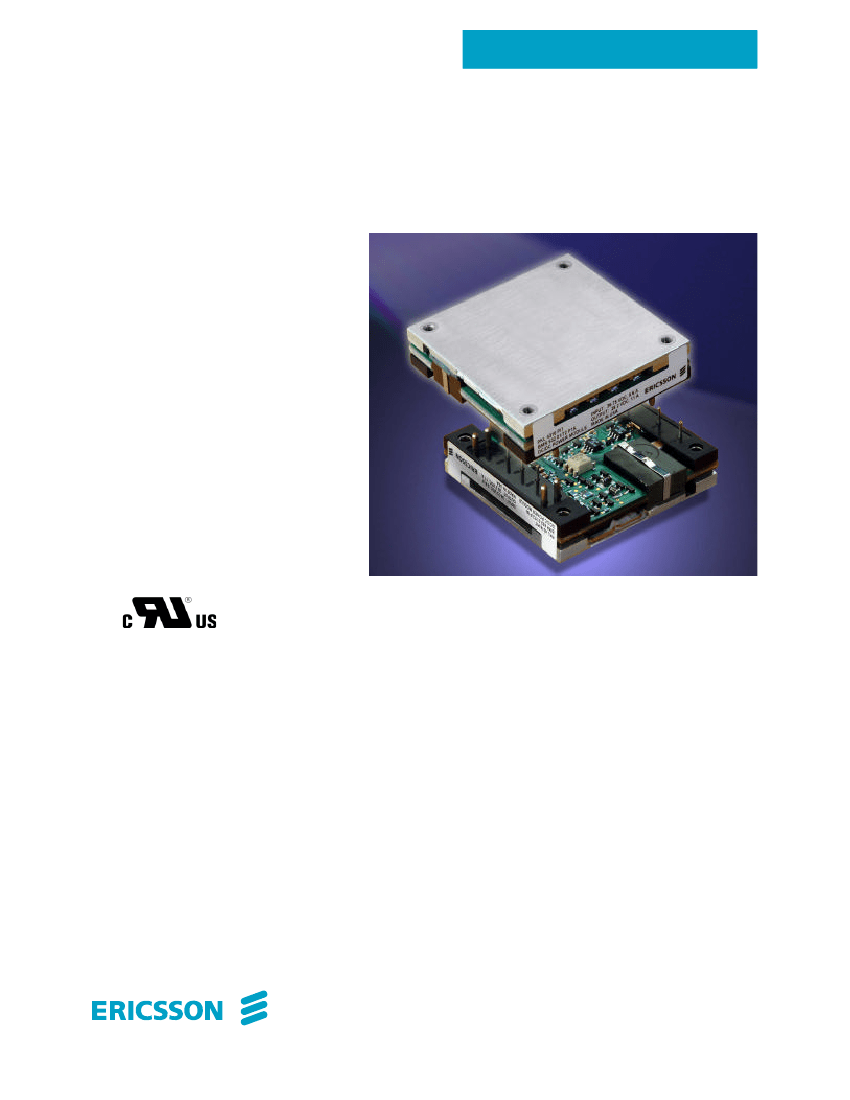

310W DC/DC Power Module
48V Input, 28.2V Output
The PKL 4000 series represents another one of
Ericsson's "industry first" achievements in the
continuing development of our "Third Generation"
of high-density, high-efficiency power modules.
The PKL 4316 PIT module packs 106.7 W/in
3
at
91% efficiency (28.2V @ 11A) in an industry
standard footprint. The PKL 4000 package has
been enhanced to include two additional output
pins for motherboard connection reliability at this
high power.
This product features fast dynamic response times
and low output ripple, which are important
parameters when supplying high quality DC power
to wireless applications. The PKL 4000 Series also
is especially well suited for limited board space and
high dynamic load applications.
Ericsson's28 volt PKL 4316 PIT Power Module has
been designed with the global wireless Telecomm
market in mind, by specifying the input voltage
range in accordance with ETSI specifications.
These modules are manufactured on highly
automated manufacturing lines. Ericsson's world-
class quality commitment is reflected in our
standard five year warranty. Ericsson
Microelectronics has been an ISO 9001 certified
Supplier since 1991.
For a complete product program, please reference the back
cover.
PKL 4316 PIT
General
Connections
Pin
1
2
3
4
5, 10
6
7
8
9, 11
Designation
-INPUT
CASE
REMOTE
ON/OFF
+INPUT
-OUTPUT
-SENSE
TRIM
+SENSE
+OUTPUT
Function
Negative input
Connected to base plate
Remote control (primary) to
turn-on and turn-off the output
Positive input.
Negative output (two pins)
Negative remote sense
Output voltage adjust
Positive remote sense
Positive output (two pins)
I
I max
V
Ion
V
Ioff
Input
T
C
<T
Cmax
unless otherwise specified
Characteristics
V
I
Input voltage
range
Turn-off input
voltage
Turn-on input
voltage
Max. Input
Current
Ramping from higher
voltage
Ramping from lower
voltage
Conditions
min
36
typ
max
75
Units
V
dc
31
33
V
dc
34
36
V
dc
V
i
= V
i
min = 36 V
Except Charging of C
I
3.5
I
O
= 0, T
C
= –30…+ 95 °C
T
C
= –30…+ 95 °C,
RC Open
6
0.4
9.5
1
A
dc
A
dc
µF
W
Note: If the remote sense is not needed the "-Sense" should
be connected to "-Out" and the "+Sense" should be
connected to "+Out."
I
I rush
Inrush Current
C
I
P
Ii
P
RC
Input capacitance
Input idling
power
Input stand-by
power
Weight
110 grams
Case
Aluminum base plate with stainless standoffs.
Pins
0.6
W
Pin Material: Brass
Pin Plating: Tin/Lead over Nickel
Mechanical Data
2.42
[61,5] OVERALL LENGTH
0.19
[4,82]
0.20
[5,1]
0.300
[7,62]
-INPUT
-OUTPUT
See Note 1
0.19
[4,82]
2.042
[51,86]
0.21
[5,3]
PIN
EXT.
0.50
[12,7]
OVERALL
HEIGHT
0.02
[0,5]
0.50
[12,72
1.000
[25,40]
1.400
[35,56]
2.00
[50,8]
0.400
[10,16]
0.142
[3,60]
CASE
-SENSE
0.400
[10,16]
0.700
[17,78]
BOTTOM VIEW
REMOTE
ON/OFF
TRIM
1.000
[25,40]
+SENSE
1.400
[35,56]
+OUTPUT
+INPUT
0.300
[7,62]
0.040 [1,02] DIA. PLATED
BRASS PINS
TYPICAL 7 PLACES
2.40
[61,0]
OVERALL
WIDTH
MOUNTING INSERTS M3 X 0.5 THREAD;
TYPICAL 4 PLACES (See Note 2)
1.900
[48,26]
2.095
[53,21]
0.195
[4,95]
0.080 [2,06] DIA. PLATED
BRASS PINS
TYPICAL 4 PLACES
Standoff
0.015
[0.38]
Note 1: Extension of mounting insert only on PKL 4316 PITM / PITO
Note 2: For PKL 4316 PITM / PITO, Non-Threaded inserts
Dimensions: inches [mm]
Tolerances: .xx ± 0.02 [ ,x ± ,5]
.xxx ±0.010 [,xx ± ,25]
2
EN/LZT 108 5190 R1E © Ericsson Inc., Microelectronics , June 2002
08EN/
PKL 4316 PIT
Output
T
C
= -40...+100°C, V
I
= 36...75V
dc
unless otherwise specified
Characteristics
Conditions
T
C
= +25°C, I
O
= I
Omax
PKL4316PIT
= 11A, V
I
= 53V
PKL4316PITM,PKL4316PITO
Output
min
27.6
27.9
23.5
Long term drift
I
O
= 0A
I
O
= I
Omax
I
O
= 0.1…1.0 × I
Omax
I
O
= 0.1…1.0 × I
Omax
,
Load step =0.25 x I
Omax
,
Di/dt = 0.1A/µs
V
I
= 53 V
I
O
= 0.1…1.0 × I
Omax
,
I
O
= 0.1…1.0 × I
Omax,
V
I
= 53 V
0
Calculated at V
O
=V
O
typ
T
C
<T
Cmax
V
O
= 0.2…0.5 V, T
C
=+25°C
5 Hz…20MHz
0.15 …100 MHz
SVR
Supply voltage rejection (ac)
f = 100 Hz sine wave, 1V
p-p
, V
I
= 53 V
-50
13.2
15
50
140
V
I
= 36…75 V
I
O
= 0.1...1.0 × I
Omax
27.6
27.6
28.2
28.2
14
14
100
typ
28.2
28.2
max
28.8
28.5
31
28.8
30.6
56
56
V
V
mV
mV
µs
V
40
40
11
310
15.4
16
130
ms
ms
A
W
A
A
mV
p-p
mV
p-p
dB
V
Unit
Output voltage initial
V
Oi
Output adjust range
Output voltage
Idling voltage
V
O
Line regulation
Load regulation
t
tr
V
tr
t
r
t
s
I
O
P
Omax
I
lim
I
sc
V
Oac
Load transient
Load transient voltage
Ramp-up time
Start-up time
Output current
Max output power
Current limiting
Short circuit current
±
0.75
20
20
Output ripple & noise
Miscellaneous
Characteristics
η
P
d
f
S
Efficiency
Power dissapation
Switching frequency
Conditions
I
O
= I
Omax
, V
I
= 48V, T
C
= +25
o
C
I
O
= I
Omax
, V
I
= 48V, T
C
= +25
o
C
I
O
= 0...1.0 x I
Omax
min
typ
90
30.7
130
max
Unit
%
W
kHz
Absolute Maximum Ratings
Characteristics
T
C
T
S
V
I
V dc
V
ISO
V
RC
I
2
t
Maximum Operating Case Temperature
Storage temperature
Input voltage
Continuous
Transient (100ms)
Isolation voltage
(input to output test voltage)
Remote control voltage
Inrush transient
1,500
12
1
min
– 40
– 40
– 0.5
max
+100
+125
+ 80
+100
Unit
°C
°C
Vdc
Efficiency
PKL 4316 PIT Efficiency
92%
91%
90%
Efficiency (%)
89%
88%
87%
86%
85%
84%
83%
2
4
6
8
Current (amps)
10
75V
36V
48V
53V
V dc
V dc
Vdc
A
2
s
Stress in excess of Absolute Maximum Ratings may cause permanent
damage. Absolute Maximum Ratings, sometimes referred to as "no
destruction limits," are normally tested with one parameter at a time
exceeding the limits of output data or electrical characteristics. If exposed
to stress above these limits, function and performance may degrade in an
unspecified manner.
EN/LZT 108 5190 R1E © Ericsson Inc., Microelectronics , June 2002
3
PKL 4316 PIT
Product Program
V
I
V
O
/I
O
P
O
max
310W
Ordering Number
PKL4316PIT
48/60V 28V/11A
The PKL 4000 DC/DC power modules will be
available with the different options listed in the
Product Options Table
Please check with the factory for availability.
Product Options
Option
Negative remote on/off
logic, Industry Standard
trim (i.e. V
o
Adjust)
Non-threaded standoff w/
increased length (0.02")
Positive remote on/off logic
Lead length 0.145"
±
0.010"
Setpoint accuracy to +/- 1%,
Non-threaded standoff w/
i increased length (0.02")
Suffix
-
Example
PKL4316PIT
M
P
LA
O
PKL4316PITM
PKL4316PIPT
PKL4316PITLA
PKL4316PITO
Information given in this Advanced Data Sheet is believed to be accurate
and reliable. No responsibility is assumed for the consequences of its use
for any infringement of patents or other rights of third parties that may
result from its use. No license is granted by implication or otherwise under
any patent or patent rights of Ericsson Microelectronics. These products
are sold only according to Ericsson Microelectronics' general conditions of
sale, unless otherwise confirmed in writing. Specifications are subject to
change without notice.
Ericsson Inc.
Microelectronics
1700 International Pkwy.
Richardson, Texas 75081
Phone: 877-ERICMIC
www.ericsson.com/microelectronics
The latest and most complete
information can be found on our website!
Preliminary
Advanced Data Sheet
4
EN/LZT 108 5190 R1E © Ericsson Inc., Microelectronics , June 2002
