CTLQ1210NF-121J datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CTLQ1210NF-121J

CTLQ1210NF-121J: Description1 ELEMENT, 120 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size152KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTLQ1210NF-121J Overview

1 ELEMENT, 120 uH, GENERAL PURPOSE INDUCTOR, SMD

CTLQ1210NF-121J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
package instruction	1210
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	1210
DC Resistance	8 Ω
Nominal inductance(L)	120 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CTLQ1210N
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	40
Maximum rated current	0.075 A
self resonant frequency	7.5 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 0.796MHZ
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	5%

Preview

Download Datasheet

View All

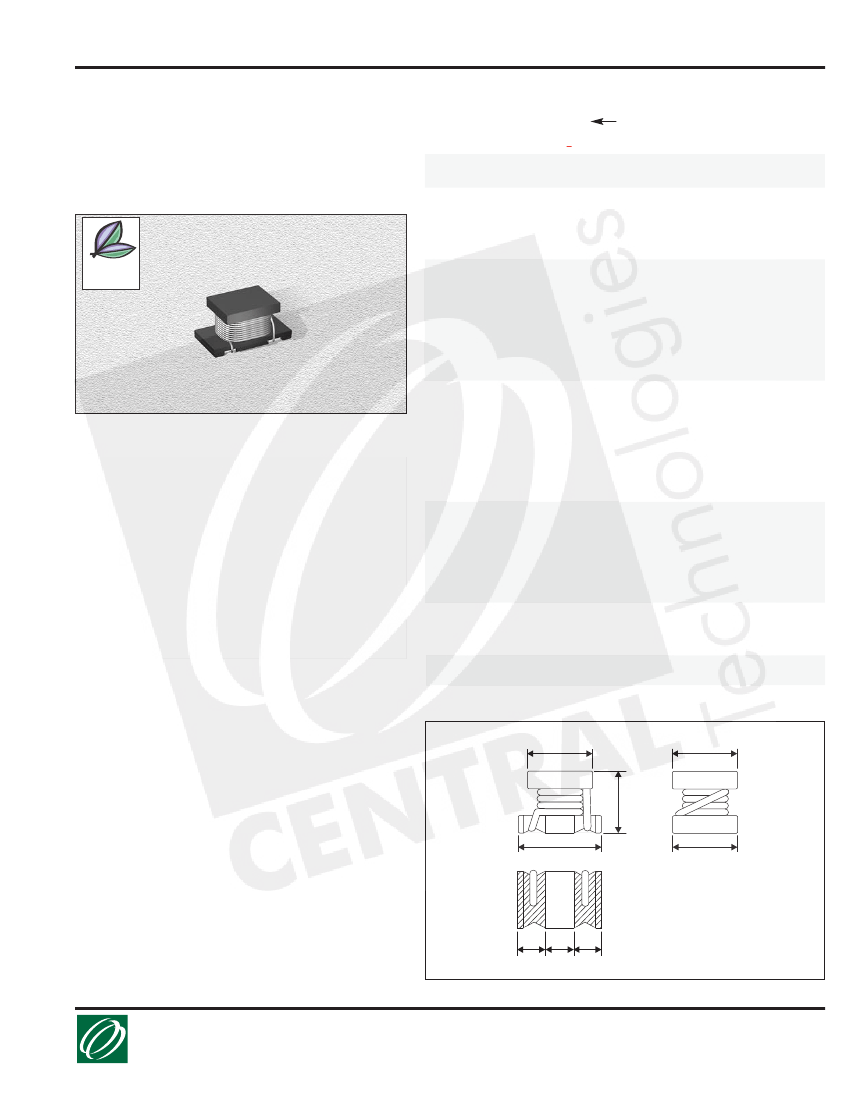

Wire-wound Chip Inductors - Open

ctparts.com

CTLQ1210N Series

From .10 µH to 560 µH

Part

Number

CTLQ1210N_-R10M

CTLQ1210N_-R18M

CTLQ1210N_-R27M

CTLQ1210N_-R39M

CTLQ1210N_-R56M

CTLQ1210N_-R68M

CTLQ1210N_-R82M

CTLQ1210N_-1R0M

CTLQ1210N_-1R2M

CTLQ1210N_-1R5M

CTLQ1210N_-1R8M

CTLQ1210N_-2R2_*

CTLQ1210N_-2R7_*

CTLQ1210N_-3R3_*

CTLQ1210N_-3R9_*

CTLQ1210N_-4R7_*

CTLQ1210N_-5R6_*

CTLQ1210N_-6R8_*

CTLQ1210N_-8R2_*

CTLQ1210N_-100_**

CTLQ1210N_-120_**

CTLQ1210N_-150_**

CTLQ1210N_-180_**

CTLQ1210N_-220_**

CTLQ1210N_-270_**

CTLQ1210N_-330_**

CTLQ1210N_-390_**

CTLQ1210N_-470_**

CTLQ1210N_-560_**

CTLQ1210N_-680_**

CTLQ1210N_-820_**

CTLQ1210N_-101_**

CTLQ1210N_-121_**

CTLQ1210N_-151_**

CTLQ1210N_-181_**

CTLQ1210N_-221_**

CTLQ1219N_-271_**

CTLQ1210N_-331_**

CTLQ1210N_-391_**

CTLQ1210N_-471_**

CTLQ1210N_-561_**

Not shown at actual size.

SPECIFICATIONS

Please specify tolerance code when ordering.

CTLQ1210N-2R7_

J = ±5%, K = ±10% M = ±20%

* K or M

** J or K

CTLQ1210NF

Please specify”F” for RoHS compliant.

Test

Freq.

(_Hz)

DCR

Ω

(Ω)

Max.

0.25

0.5

0.6

0.7

0.8

0.9

1.0

1.1

1.2

1.3

1.5

1.6

1.8

2.0

2.2

2.5

2.8

3.1

3.5

3.9

4.3

4.9

5.5

6.2

7.0

8.0

9.3

10.2

11.8

12.5

13.0

22.0

25.0

28.0

SRF

(MHz)

Min.

200

160

120

100

9.0

8.5

8.0

7.5

7.0

6.0

5.5

5.0

Rated DC

(mA)

Max.

700

650

600

530

470

450

445

425

400

390

370

320

300

290

270

250

240

225

190

180

170

165

150

125

115

110

100

Inductance

(µH)

0.10

0.18

0.27

0.39

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

Min.

20@25.2MHz

25@25.2MHz

30@25.2MHz

20@1MHz

35@1MHz

40@1MHz

40@796KHz

50@796KHz

Compliant

Available

RoHS

CHARACTERISTICS

Description:

SMD power inductor

Applications:

Power supplies for VTR, OA equipment, LCD

televisions, PC notebooks, portable communication equipment,

DC/DC converters, etc.

Operating Temperature:

-25°C to +85°C

Inductance Tolerance:

J = ±5%, K = ±10% & M = ±20%

Packaging:

Tape & Reel

Miscellaneous:

RoHS Compliant available.

Testing:

Tested on a HP4285A @ specified frequency

Pads:

Soft copper and pre-tinned

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

PHYSICAL DIMENSIONS

Size

inches

3.2±0.3

0.13±0.01

2.0±0.2

0.08±0.008

2.5±0.2

0.10±0.008

Min.

0.9

0.035

Min.

1.3

0.05

0.10±0.008 0.10±0.008

09.02.05

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
