ZMM55C7V5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> ZMM55C7V5

ZMM55C7V5: DescriptionZener Diode, 7.5V V(Z), 5%, 0.5W; CategoryDiscrete semiconductor diode; File Size138KB，5 Pages; ManufacturerFORMOSA; Websitehttp://www.formosams.com/

Download Datasheet Parametric Compare View All

ZMM55C7V5 Overview

Zener Diode, 7.5V V(Z), 5%, 0.5W

ZMM55C7V5 Parametric

Parameter Name	Attribute value
Maker	FORMOSA
Reach Compliance Code	unknow
ECCN code	EAR99
Configuration	SINGLE
Diode type	ZENER DIODE
Maximum dynamic impedance	7 Ω
Number of components	1
Maximum operating temperature	175 °C
Maximum power dissipation	0.5 W
Nominal reference voltage	7.5 V
surface mount	YES
Maximum voltage tolerance	5%
Working test current	5 mA

Preview

Download Datasheet

View All

FormosaMS

ZMM55C Series

Zener diode

Features

1. Small surface mounting type

2. High reliability

Applications

Voltage stabilization

Construction

Silicon epitaxial planar

Absolute Maximum Ratings

=25

Parameter

Power dissipation

Z-current

Junction temperature

Storage temperature range

Test Conditions

thJA

≤300K/W

Type

Symbol

stg

Value

500

175

-65~+175

Unit

Maximum Thermal Resistance

=25

Parameter

Junction ambient

Test Conditions

on PC board 50mm×50mm×1.6mm

Symbol

thJA

Value

500

Unit

K/W

Electrical Characteristics

=25

Parameter

Forward voltage

Test Conditions

=200mA

Type

Symbol

Min

Typ

Max

1.5

Unit

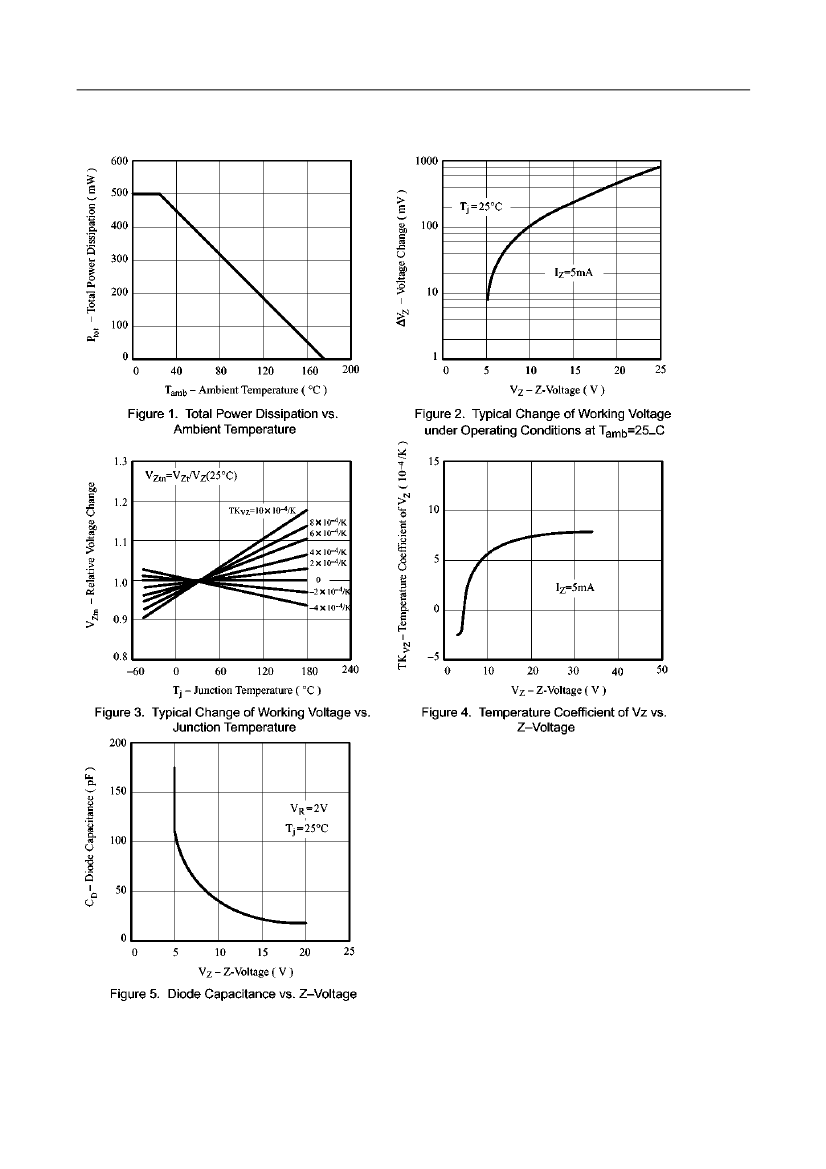

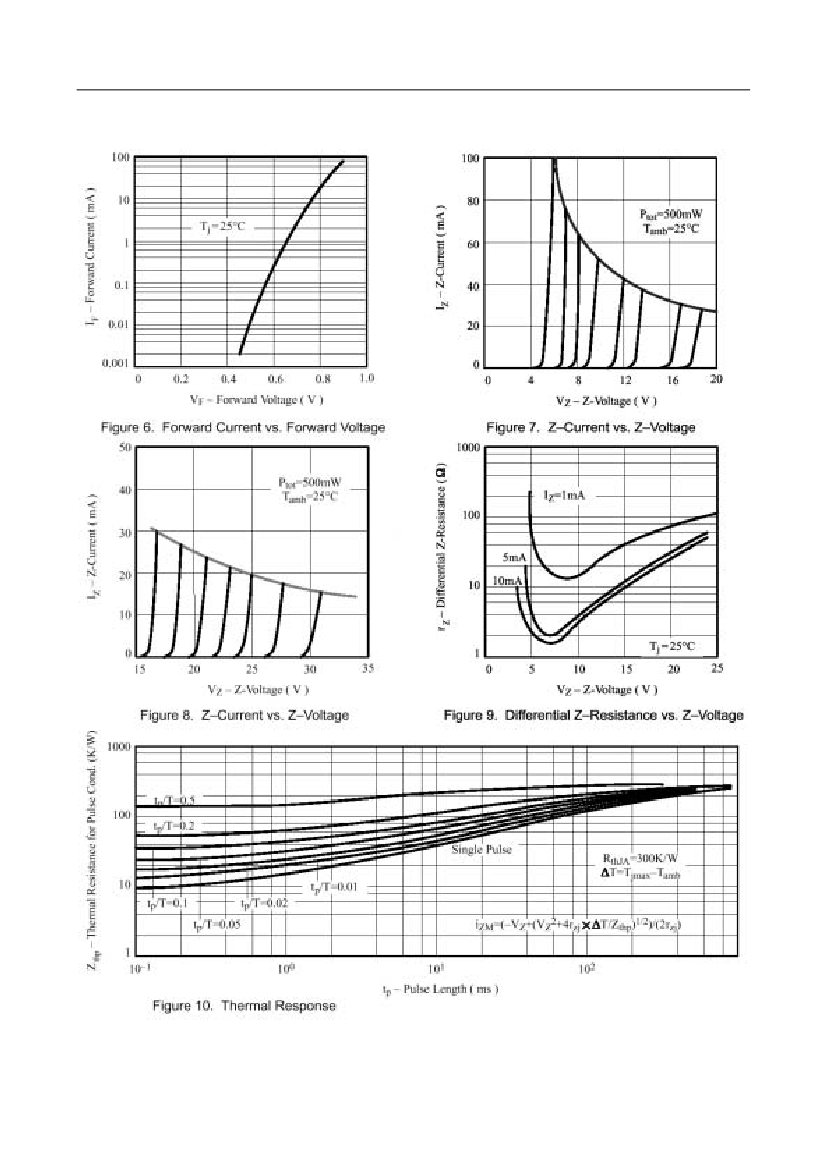

FORMOSA MICROSEMI CO., LTD

ZMM55C7V5 Related Products

	ZMM55C7V5	ZMM55C56	ZMM55C12	ZMM55C24	ZMM55C3V9	ZMM55C3V6	ZMM55C36	ZMM55C4V7	ZMM55C9V1
Description	Zener Diode, 7.5V V(Z), 5%, 0.5W	Zener Diode, 56V V(Z), 5%, 0.5W	Zener Diode, 12V V(Z), 5%, 0.5W	Zener Diode, 24V V(Z), 5%, 0.5W	Zener Diode, 3.9V V(Z), 5%, 0.5W	Zener Diode, 3.6V V(Z), 5%, 0.5W	Zener Diode, 36V V(Z), 5%, 0.5W	Zener Diode, 4.7V V(Z), 5%, 0.5W	Zener Diode, 9.1V V(Z), 5%, 0.5W
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	7 Ω	135 Ω	20 Ω	80 Ω	90 Ω	90 Ω	80 Ω	80 Ω	10 Ω
Number of components	1	1	1	1	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum power dissipation	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W
Nominal reference voltage	7.5 V	56 V	12 V	24 V	3.9 V	3.6 V	36 V	4.7 V	9.1 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%	5%	5%	5%
Working test current	5 mA	2.5 mA	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA
Maker	FORMOSA	FORMOSA	-	-	FORMOSA	FORMOSA	FORMOSA	FORMOSA	FORMOSA
