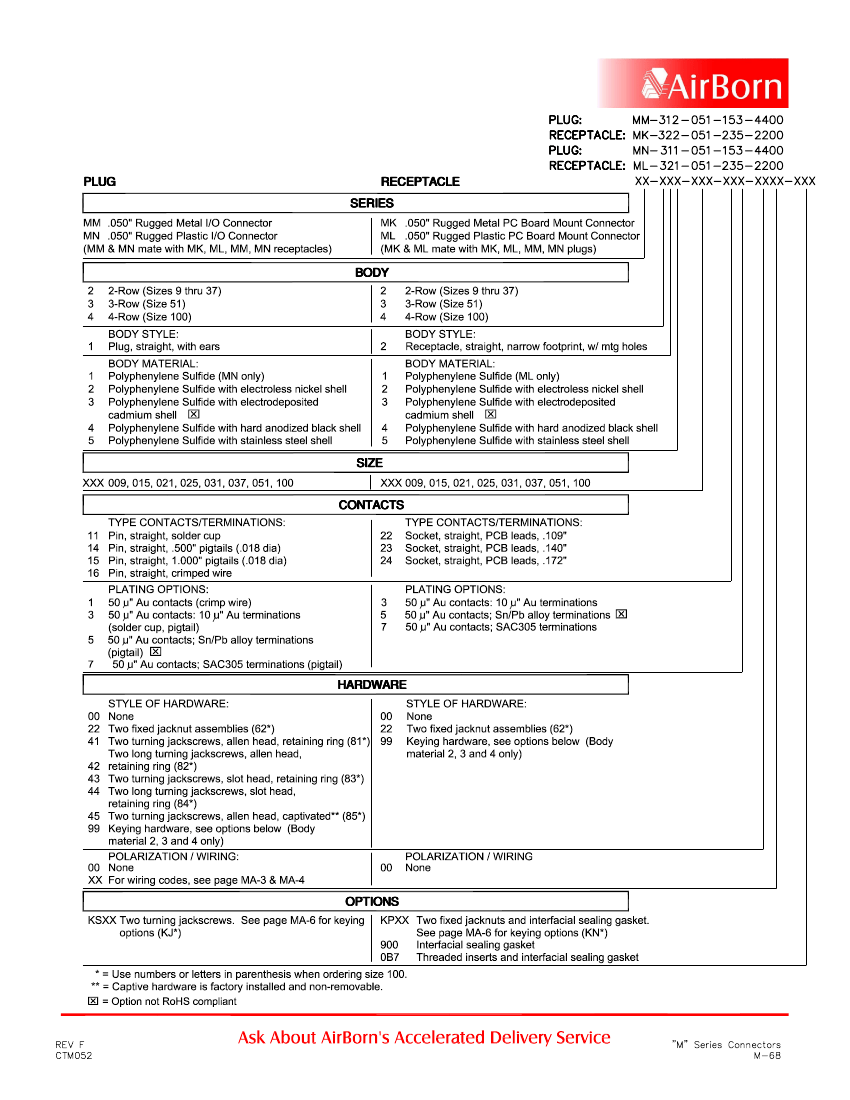

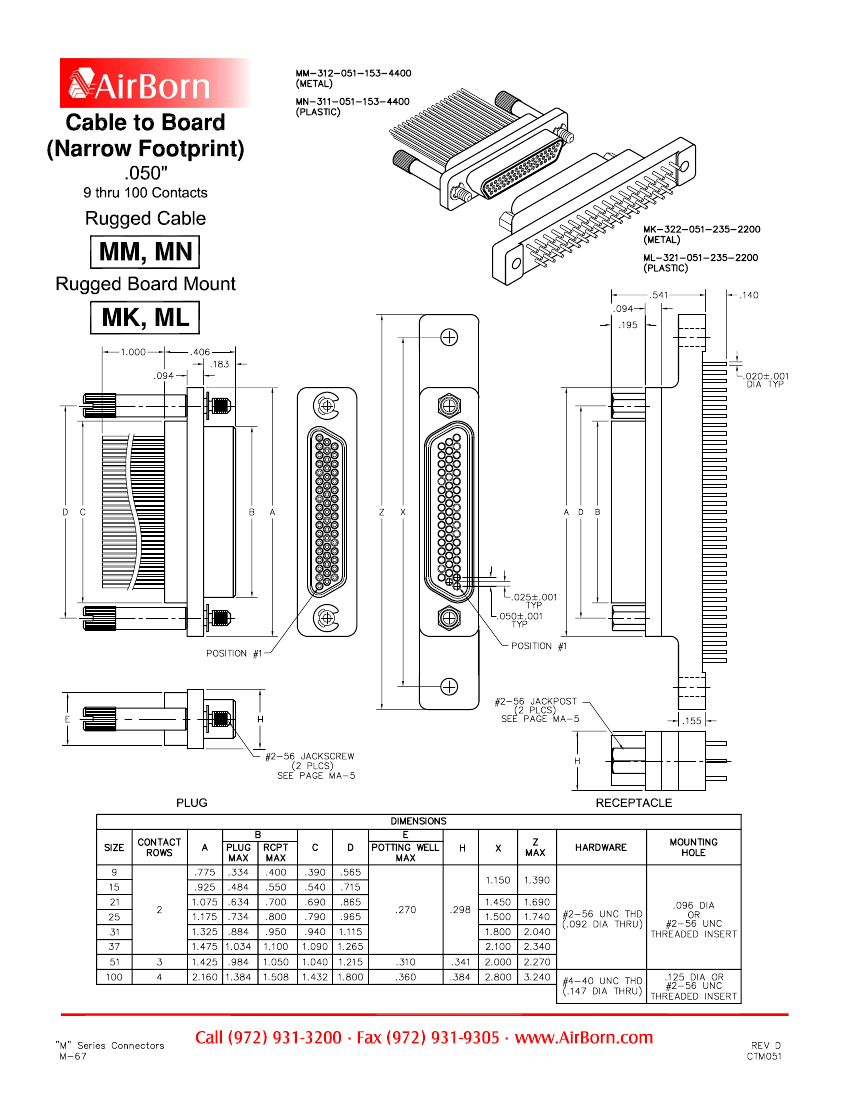

ML-221-015-245-2200-0B7: DescriptionD Microminiature Connector, 15 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size974KB，2 Pages; ManufacturerAirBorn

Download Datasheet Parametric Compare View All

ML-221-015-245-2200-0B7 Overview

D Microminiature Connector, 15 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle,

ML-221-015-245-2200-0B7 Parametric

Parameter Name	Attribute value
Maker	AirBorn
Reach Compliance Code	compli
body width	0.298 inch
subject depth	0.346 inch
body length	1.39 inch
Body/casing type	RECEPTACLE
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN/LEAD
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	26 mΩ
Contact style	RND PIN-SKT
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation option 2	JACKPOST
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	50u inch
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length	0.172 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	15
Evacuation force-minimum value	2.78 N

Preview

Download Datasheet

View All

ML-221-015-245-2200-0B7 Related Products

	ML-221-015-245-2200-0B7	ML-221-021-245-2200-0B7	ML-321-051-235-2200-900	ML-421-100-235-0000-900	ML-321-051-235-2200-0B7	ML-221-015-245-0000-0B7	ML-221-025-245-2200-0B7
Description	D Microminiature Connector, 15 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle,	D Microminiature Connector, 21 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle,	D Type Connector, 51 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 100 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle	D Microminiature Connector, 51 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle,	D Microminiature Connector, 15 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle,	D Microminiature Connector, 25 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle,
Reach Compliance Code	compli	compli	compli	compliant	compliant	compli	compli
body width	0.298 inch	0.298 inch	0.341 inch	0.384 inch	0.341 inch	0.298 inch	0.298 inch
subject depth	0.346 inch	0.346 inch	0.346 inch	0.346 inch	0.346 inch	0.346 inch	0.346 inch
body length	1.39 inch	1.69 inch	2.27 inch	3.24 inch	2.27 inch	1.39 inch	1.74 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	26 mΩ	26 mΩ	26 mΩ	26 mΩ	26 mΩ	26 mΩ	26 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	3	4	3	2	2
Number of rows loaded	2	2	3	4	3	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.172 inch	0.172 inch	0.14 inch	0.14 inch	0.14 inch	0.172 inch	0.172 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	21	51	100	51	15	25
Evacuation force-minimum value	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Maker	AirBorn	-	-	-	AirBorn	AirBorn	AirBorn
Connector type	D MICROMINIATURE CONNECTOR	D MICROMINIATURE CONNECTOR	-	-	D MICROMINIATURE CONNECTOR	D MICROMINIATURE CONNECTOR	D MICROMINIATURE CONNECTOR
Installation option 2	JACKPOST	JACKPOST	JACKPOST	-	JACKPOST	-	JACKPOST
