Multi-layer High Current Chip Inductors - Ferrite
ctparts.com
CTML0805HCF Series
From 1.0 µH to 100 µH
SPECIFICATIONS
Parts are only available in ±20% inductance tolerance.
Isat1: DC current at which the inductance drops 10% (typ) from it’s value without current.
Isat2: DC current at which the inductance drops 30% (typ) from it’s value without current.
Irms: Current that causes a 20°C temperature rise from 25°C ambient.
Part
Number
CTML0805HCF-1R0M
CTML0805HCF-2R2M
CTML0805HCF-4R7M
Not shown at actual size.
CTML0805HCF-100M
CTML0805HCF-220M
CTML0805HCF-470M
CTML0805HCF-101M
Inductance
(µH)
1.0
2.2
4.7
10
22
47
100
Test
Freq.
(MHz)
7.96
7.96
7.96
2.52
2.52
2.52
2.52
DCR
Max.
Ω
(Ω)
0.075
0.114
0.260
0.390
0.910
1.794
3.900
Isat1
Max.
(mA)
300
240
140
100
75
50
30
Isat2
Max.
(mA)
550
400
280
180
110
85
60
Irms
Max.
(mA)
1150
900
600
500
300
230
160
Compliant
RoHS

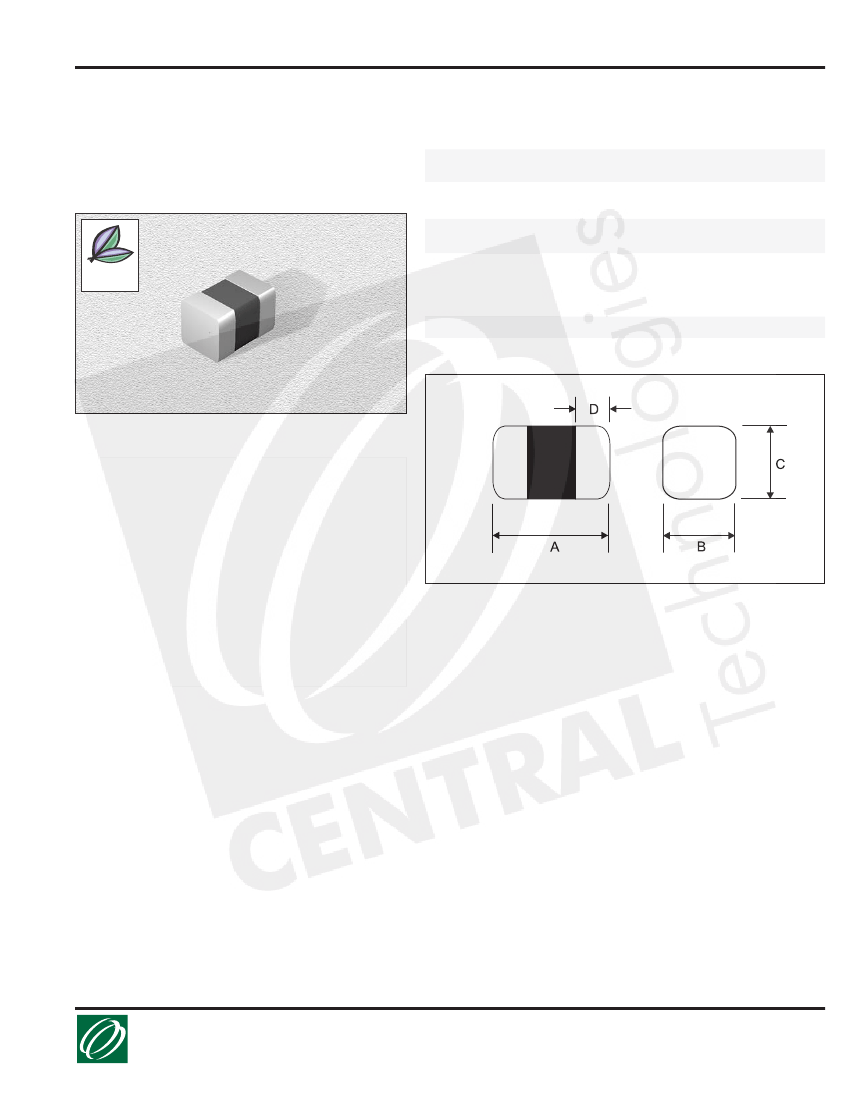

PHYSICAL DIMENSIONS
Size
mm
inches
A
2±0.2
0.08±0.008
B
1.25±0.2
0.05±0.008
C
1.25±0.2
0.05±0.008
D
0.2~0.8
0.008~0.031
CHARACTERISTICS
Description:
Ferrite core, multi-layer high current chip inductor.
Magnetic shielded.
Applications:
LC resonant circuits such as oscillator and signal
generators, RF filters, disk drives, audio and video equipment, TV,
radio and telecommunication equipment
Operating Temperature:
-55°C to +125°C
Inductance Tolerance:
±20%
Testing:
Inductance tested on an HP4285A at specified
frequency
Packaging:
Tape & Reel
Marking:
Reels marked with inductance code and tolerance
Miscellaneous:
RoHS Compliant
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.
11.06.07
Technologies
Manufacturer of Passive and Discrete Semiconductor Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2007 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
