GMSM2-20SS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> GMSM2-20SS

GMSM2-20SS: DescriptionD Microminiature Connector, 20 Contact(s), Female, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size380KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

GMSM2-20SS Overview

D Microminiature Connector, 20 Contact(s), Female, Solder Terminal, Receptacle

GMSM2-20SS Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli
Body/casing type	RECEPTACLE
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	GMSM
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ALUMINUM ALLOY
Termination type	SOLDER
Total number of contacts	20

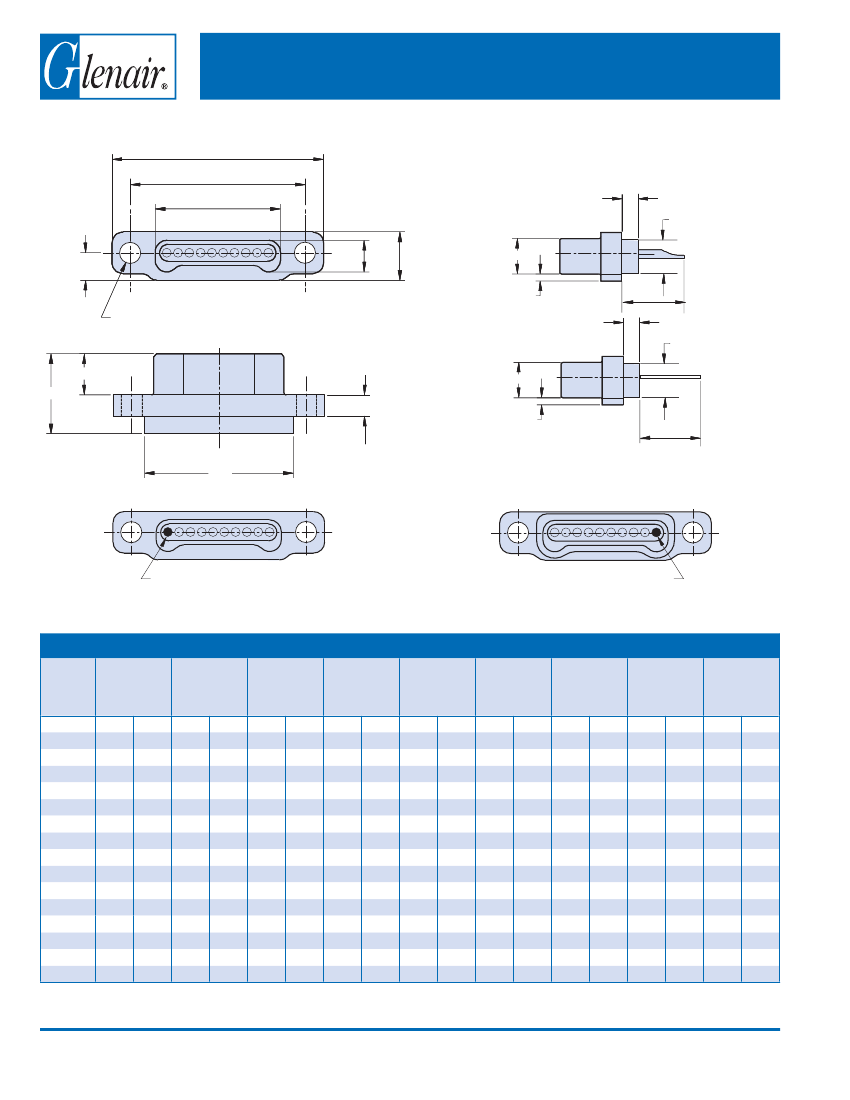

Preview

Download Datasheet

View All

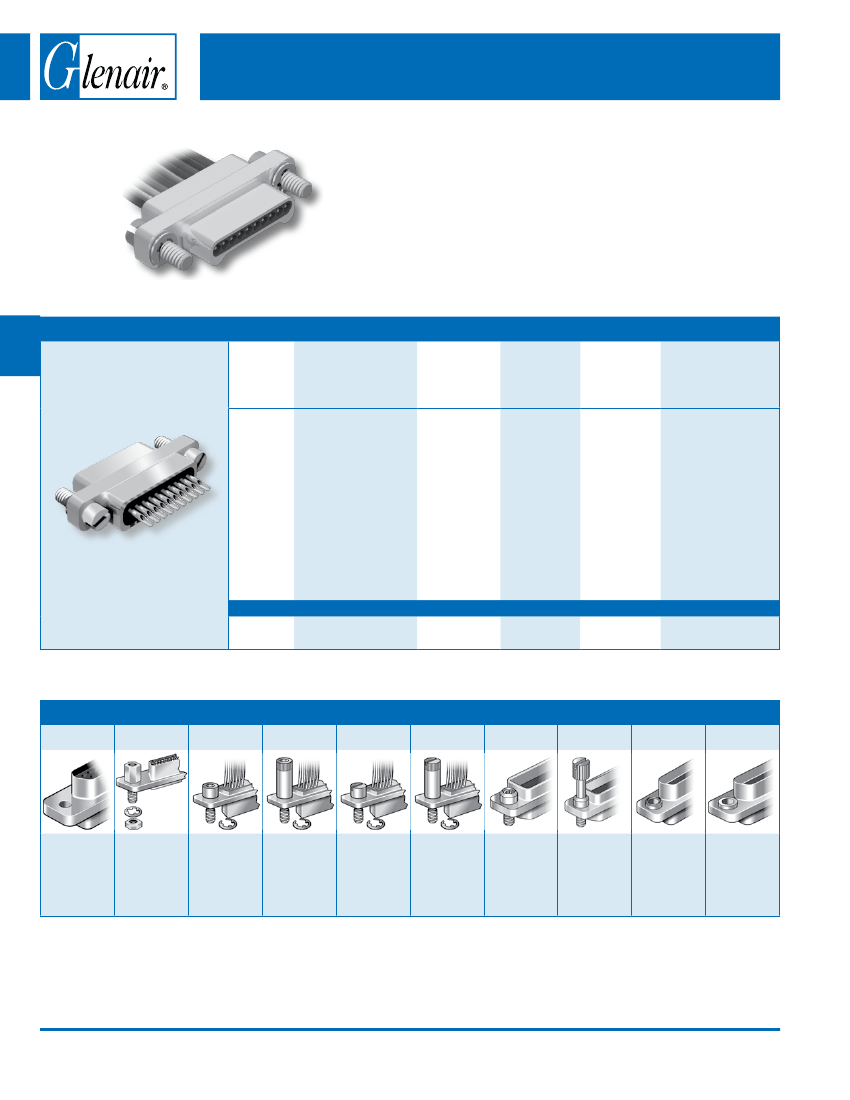

Single Row

www.glenair.com

Micro-D

GMSM Low Profile Single Row Metal Shell Microminiature

Solder Cup and Pre-Wired Connectors

GMSM Connectors

offer mil spec design and performance

in a smaller form factor. These GMSM single row

connectors are reduced in height compared to two-row

Micro-D connectors.

GMSM Connectors

feature gold plated TwistPin contacts,

machined aluminum shells, and are fully potted with

epoxy. Choose from 4 to 35 contacts. Available in a

variety of finishes, socket connectors are fitted with

flourosilicone interfacial seals.

hoW to oRDER GMSM SoLDER CUP CoNNECtoRS

Number of

Contacts

Contact

type

– Pin

– Socket

termination

type

Solder Cup

Series

GMSM

Shell Finish

–

Cadmium

Nickel

Black Anodize

Gold

Chem Film

Hardware

Stainless Steel Shell

– Passivated

Solder Cup

Sample Part Number

GMSM

1 –

MICRo-D MoUNtING hARDWARE

thru-hole Jackpost Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Float Mount Float Mount

Order

Hardware

Separately

Removable

Includes Nut

and Washer

Hex Head

Removable

E-ring

Hex Head

Removable

E-ring

Extended

Slot Head

Removable

E-ring

Slot Head

Removable

E-ring

Extended

Hex Head

Non-

Removable

Slot Head

Non-

Removable

Extended

For Front

Panel

Mounting

For Rear

Panel

Mounting

CAGE Code 06324/0CA77

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

D-2
