CTSLF0628T-220M datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CTSLF0628T-220M

CTSLF0628T-220M: Description1 ELEMENT, 22 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size193KB，1 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CTSLF0628T-220M Overview

1 ELEMENT, 22 uH, GENERAL PURPOSE INDUCTOR, SMD

CTSLF0628T-220M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	CT [ Central Technologies ]
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	0.104 Ω
Nominal inductance(L)	22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CTSLF0628
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	1.3 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

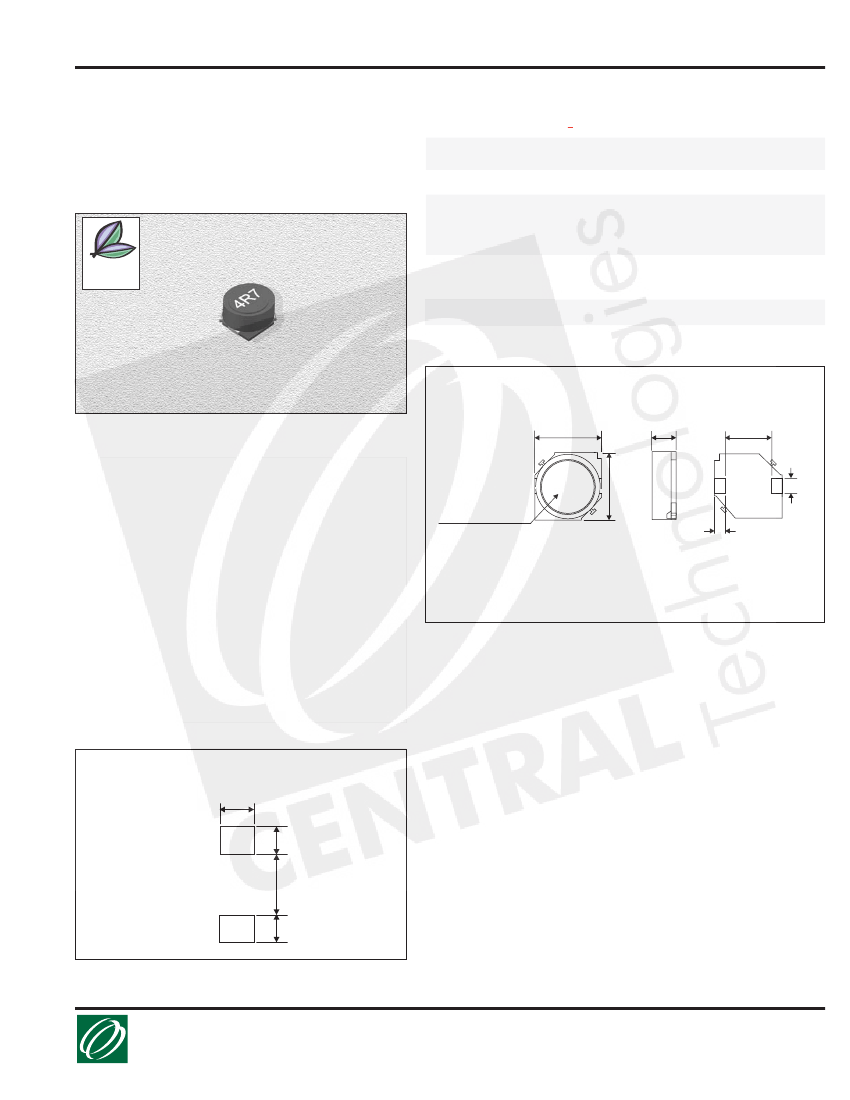

Power Inductors - Shielded

ctparts.com

CTSLF0628 Series

From 4.7 µH to 100 µH

Part

Number

Not shown at actual size.

SPECIFICATIONS

Parts are available in ±20% tolerance only.

CTSLF0628TF

Please specify “F” for RoHS compliant.

L Test

Freq.

(kHz)

1.0

DCR

±20%

(Ω)

0.0284

0.0354

0.0532

0.0745

0.104

0.148

0.21

0.29

0.43

Rated

(A)

1.6

1.5

1.3

1.0

0.77

0.69

0.59

0.50

0.42

Itemp

Max.

(A)

2.5

2.2

1.8

1.4

1.3

1.1

0.92

0.78

0.64

Inductance

(µH)

4.7

6.8

100

CTSLF0628T_-4R7M

CTSLF0628T_-6R8M

CTSLF0628T_-100M

CTSLF0628T_-150M

CTSLF0628T_-220M

CTSLF0628T_-330M

CTSLF0628T_-470M

CTSLF0628T_-680M

CTSLF0628T_-101M

Compliant

Available

RoHS

PHYSICAL DIMENSIONS

Size

inches

6.0±0.2

0.24±0.008

6.0±0.2

0.24±0.008

2.8±0.2

0.11±0.008

Typ.

1.5

0.059

2.0±0.1

0.08±0.004

Typ.

3.0

0.118

CHARACTERISTICS

Description:

SMD (shielded) power inductor

Applications:

For power source circuits, low profile type DC to

DC converters, DC to AC inverters etc.

Operating Temperature:

-40°C to +85°C

Inductance Tolerance:

±20%

Testing:

Inductance is tested on an HP4284A at 1.0 kHz.

Rated DC Current:

Value obtained when DC current flows and

the initial value of inductance has fallen by 30%

Itemp Current:

Value obtained when current flows and the

temperature has risen to 25°C

Packaging:

Tape & Reel

Marking:

Parts are marked with inductance code

Miscellaneous:

Magnetically shielded.

RoHS Compliant available.

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

XXX

Marking

(Inductance code)

PAD LAYOUT

Unit: mm

2.2

1.5

4.0

1.5

06.23.06

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
