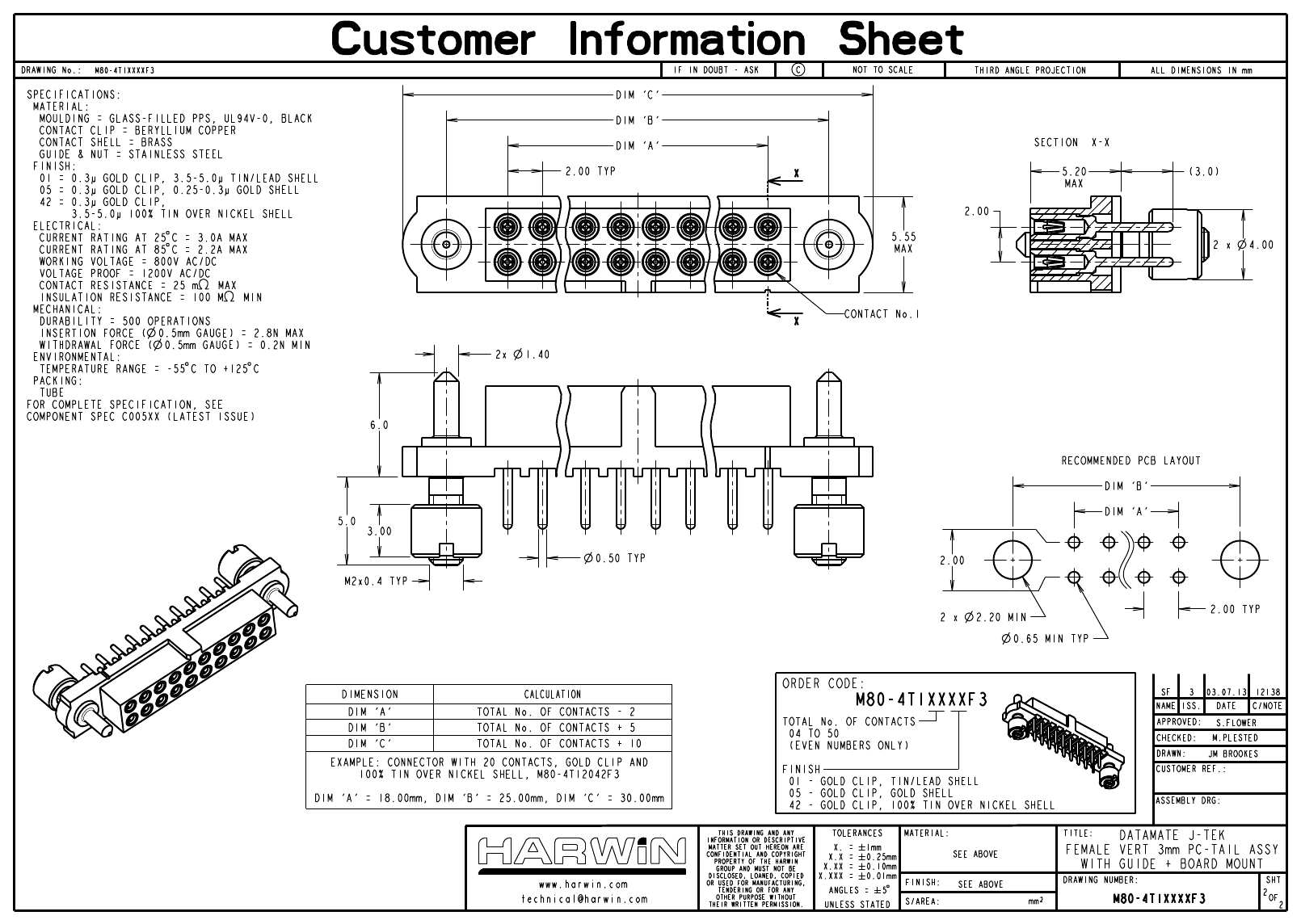

Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, M2x0.4, Black Insulator, Plug
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Harwin |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| body width | 0.219 inch |
| subject depth | 0.205 inch |
| body length | 1.969 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | TIN/LEAD OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 25 mΩ |
| Contact style | RND PIN-SKT |
| Durability | 500 Cycles |
| maximum insertion force | 2.78 N |
| Insulation resistance | 100000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Installation option 1 | M2X0.4 |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 11u inch |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.118 inch |
| Terminal pitch | 2.0066 mm |
| Termination type | SOLDER |
| Total number of contacts | 40 |
| Evacuation force-minimum value | .199882 N |
| M80-4T14001F3 | M80-4T12042F3 | |
|---|---|---|
| Description | Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, M2x0.4, Black Insulator, Plug | Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, M2x0.4, Black Insulator, Plug |
| Is it lead-free? | Contains lead | Lead free |
| Is it Rohs certified? | incompatible | conform to |
| Reach Compliance Code | compli | compli |
| ECCN code | EAR99 | EAR99 |
| body width | 0.219 inch | 0.219 inch |
| subject depth | 0.205 inch | 0.205 inch |
| body length | 1.969 inch | 1.181 inch |
| Body/casing type | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED |
| Contact completed and terminated | TIN/LEAD OVER NICKEL | Tin (Sn) - with Nickel (Ni) barrie |
| Contact point gender | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR |
| Contact resistance | 25 mΩ | 25 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT |
| Durability | 500 Cycles | 500 Cycles |
| maximum insertion force | 2.78 N | 2.78 N |
| Insulation resistance | 100000000 Ω | 100000000 Ω |
| Insulator color | BLACK | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE |
| Plug contact pitch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch |
| Installation option 1 | M2X0.4 | M2X0.4 |
| Installation option 2 | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| PCB row number | 2 | 2 |
| Number of rows loaded | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm |
| Plating thickness | 11u inch | 11u inch |
| Guideline | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.118 inch | 0.118 inch |
| Terminal pitch | 2.0066 mm | 2.0066 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 40 | 20 |
| Evacuation force-minimum value | .199882 N | .199882 N |
