M80-9431046 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-9431046

M80-9431046: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-9431046 Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle

M80-9431046 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.291 inch
subject depth	0.929 inch
body length	1.161 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	TIN (197)
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M80-943
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	M2
Installation option 2	JACKSCREW
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	10
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Minimum wire diameter	22 AWG
Evacuation force-minimum value	.1946 N

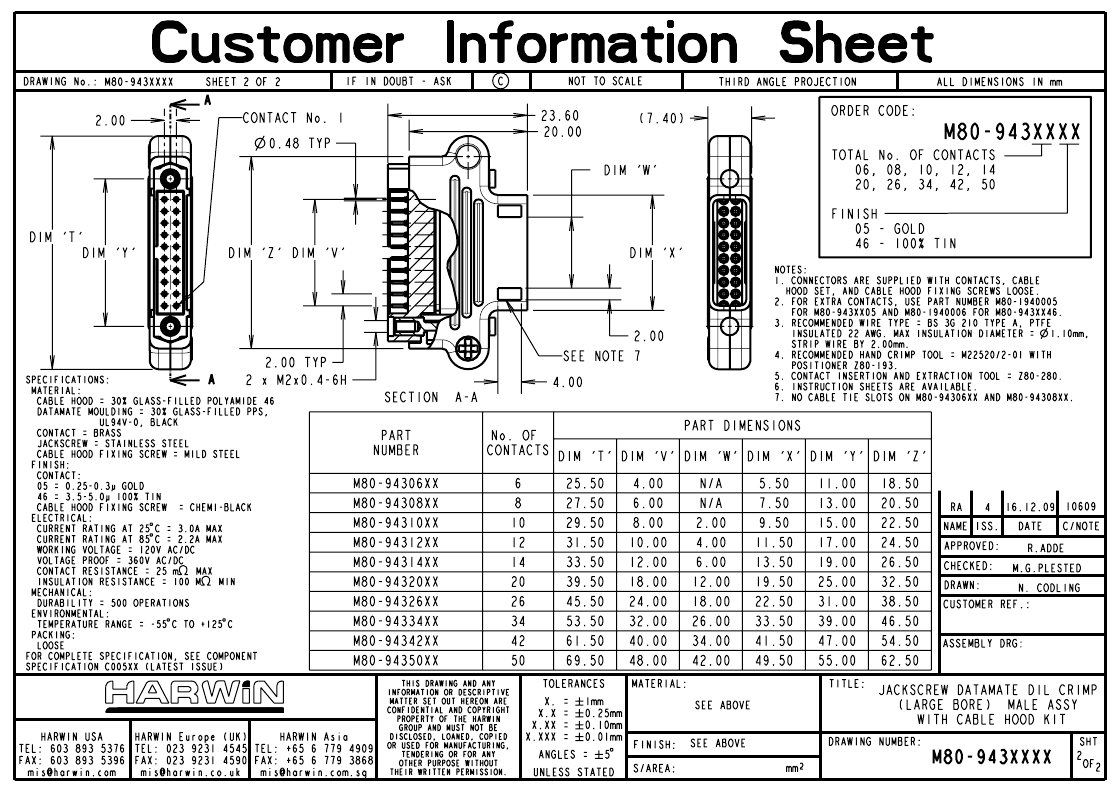

Preview

Download Datasheet

View All

M80-9431046 Related Products

	M80-9431046	M80-9432646	M80-9433446	M80-9431246	M80-9432046
Description	Board Connector, 10 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle	Board Connector, 26 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle	Board Connector, 34 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle	Board Connector, 20 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	not_compliant	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.291 inch	0.291 inch	0.291 inch	0.291 inch	0.291 inch
subject depth	0.929 inch	0.929 inch	0.929 inch	0.929 inch	0.929 inch
body length	1.161 inch	1.719 inch	2.106 inch	1.24 inch	1.555 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	TIN (197)	TIN (197)	TIN (197)	TIN (197)	TIN (197)
Contact completed and terminated	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	M80-943	M80-943	M80-943	M80-943	M80-943
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	M2	M2	M2	M2	M2
Installation option 2	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	10	26	34	12	20
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG
Minimum wire diameter	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG
Evacuation force-minimum value	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N
Maker	Harwin	-	Harwin	Harwin	Harwin
