KSH612DT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> KSH612DT

KSH612DT: DescriptionKeypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 24VDC, 1.57N, Solder Terminal, Through Hole-straight, LEAD FREE; CategoryMechanical and electronic products switch; File Size37KB，1 Pages; ManufacturerHokuriku; Websitehttp://www.hdk.co.jp/english/index_e.htm

Download Datasheet Parametric View All

KSH612DT Overview

Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 24VDC, 1.57N, Solder Terminal, Through Hole-straight, LEAD FREE

KSH612DT Parametric

Parameter Name	Attribute value
Maker	Hokuriku
package instruction	LEAD FREE
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	STEM
body width	5.3 mm
body height	3.4 mm
Body length or diameter	6 mm
Circuit configuration	1X1
Maximum contact bounce time	5 ms
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@24VDC
Maximum contact voltage (DC)	24 V
Electrical life	1000000 Cycle(s)
Manufacturer's serial number	KSH
Installation features	THROUGH HOLE-STRAIGHT
Number of switches	1
Maximum operating force	1.57 N
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
method of packing	TAPE AND REEL
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

Tactile Switches

6mm

Features

Environment-friendly by providing lead-free type

Line up long life type guaranteeing 1 million cycle

Crisp clicking by tactile feedback

Occupy less PCB space (87.8% of our conventional 6 6 type)

Prevent flux uprise by insert molded terminal

Radial taping for auto insertion and auto dip soldering

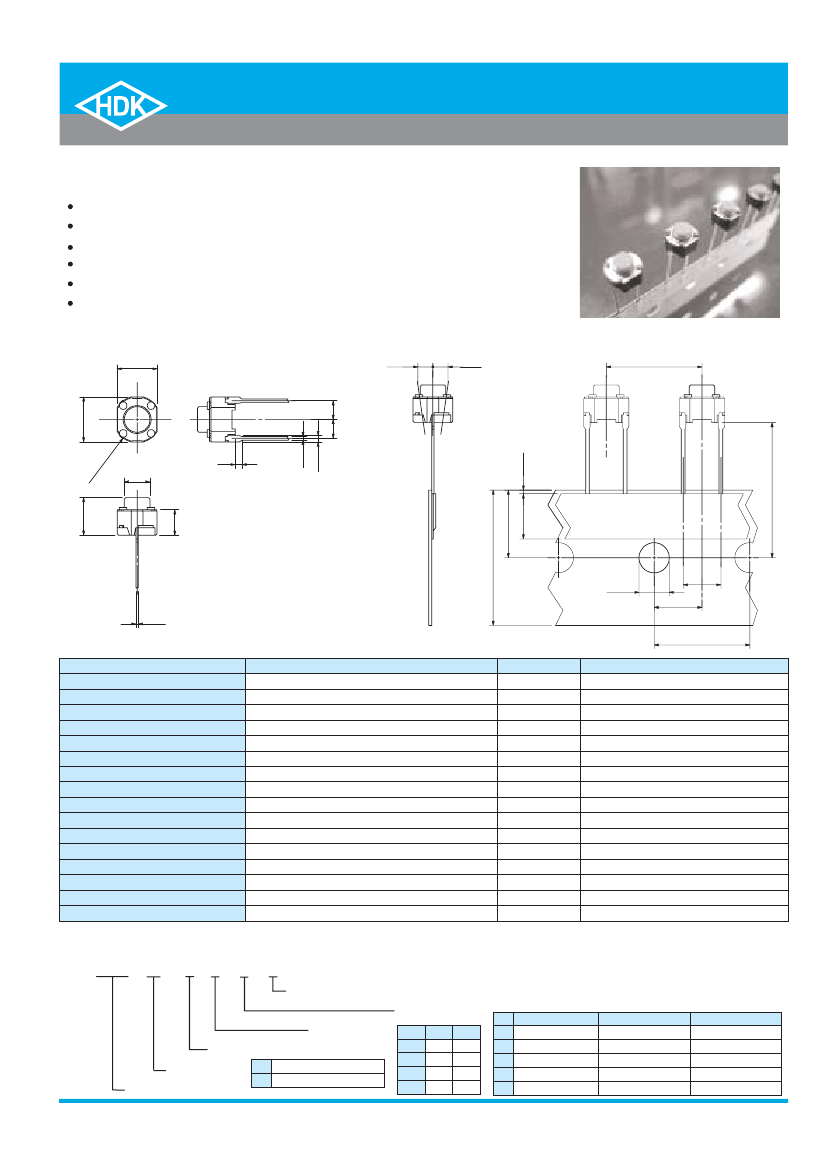

Dimensions (Unit: mm)

5 .3

2 MAX

5.3mm Radial Taped Top Push

12 .7

0 .5

0 .85

2 .5 2 .5

-R

2 MAX

3 .4

4 D IA .

6 .35

0 .3

Specification

Item

Operating Temperature Range

Storage Temperature Range

Type of Operation

Contact Configuration

Power Rating

Contact Resistance

Insulation Resistance

Dielectric Withstand Voltage

Contact Bounce

Operating Force

Return Force

Travel

Specification

-25~+70

-40~+85

Tactile Feedback

Push-On Momentary, 1 Pole-1 Throw

Max. 50mA 24VDC

Max. 100

100M Min. at 100VDC

250 VAC for 1 Minute

Max. 5

0.98±0.49

1.57±0.49

2.55±0.69

Min. 0.10

Min. 0.49

0.25 -0.1/+0.2

Unit

12 .7

Note

A Type, D Type

B Type, E Type

G Type

A Type, D Type

B Type, E Type

G Type

TModel Designation

KSH * 6

Taping

Operating Force

Mount Height

Terminal Option

Size

Model No.

1 Without ground terminal

2 With ground terminal

4.3

5.0

7.0

9.5

3.5

3.3

3.0

Operating Force

0.98

1.57

0.98

1.57

2.55

Operating Life

100,000 cycle

1 million cycle

Stem Color

White

Black

Yellow

Light-Blue

Red

HOKURIKU

Specifications are subject to change without notice.
