CTSPWF-408-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> CTSPWF-408-S

CTSPWF-408-S: DescriptionPower Transformers - Standard E Single 115V; CategoryPower management transformer; File Size171KB，2 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTSPWF-408-S Overview

Power Transformers - Standard E Single 115V

CTSPWF-408-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Center click function 1	NO
Center click function 2	NO
high	30.5 mm
Insulation voltage	2500 V
length	35.5 mm
Manufacturer's serial number	CTSPWF
Installation features	THROUGH HOLE MOUNTED
Number of secondary windings	2
Output current 1	0.045 A
Output voltage 1	28 V
method of packing	BULK
physical size	L35.5XB30.0XH30.5 (mm)
main rating	SINGLE 115V
surface mount	NO
Transformer type	POWER TRANSFORMER
VA rating	2.4 VA
width	30 mm

Preview

Download Datasheet

View All

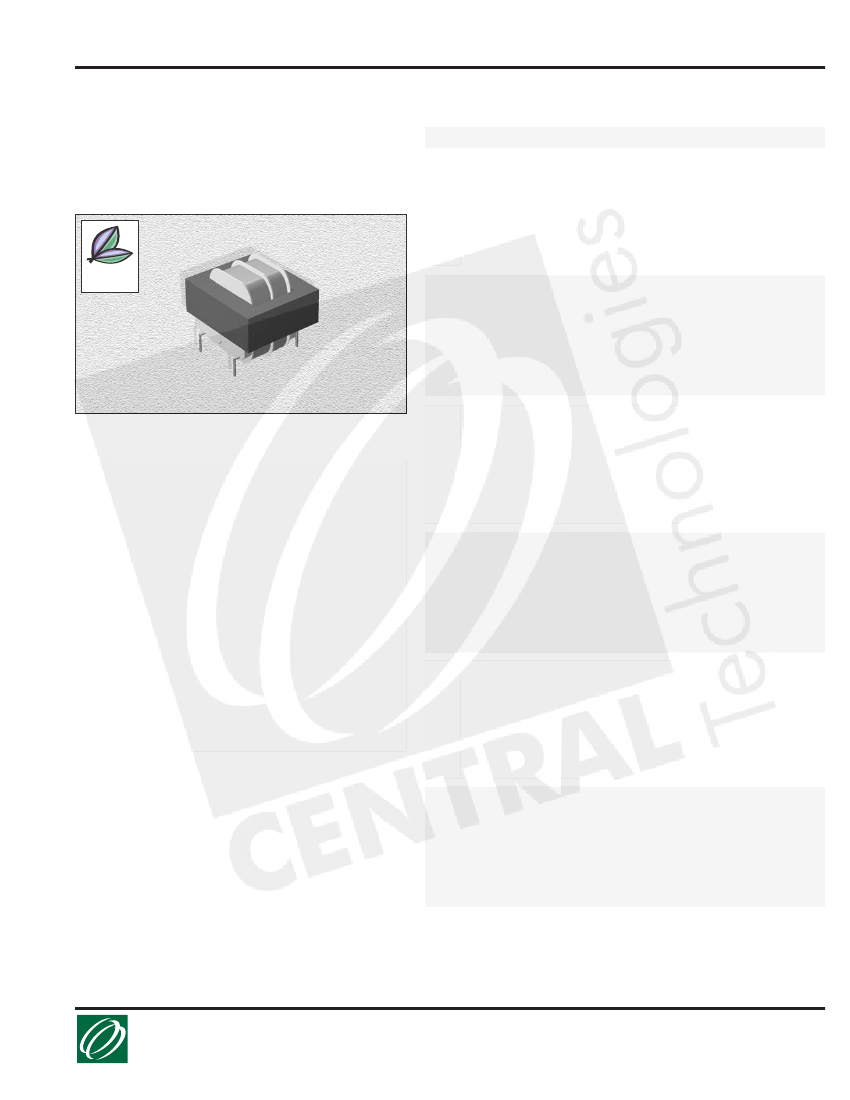

Power Transformers - Standard E Single 115V

ctparts.com

CTSPWF

Standard E

Single 115V

1.1 VA - 36.0 VA

Not shown at actual size.

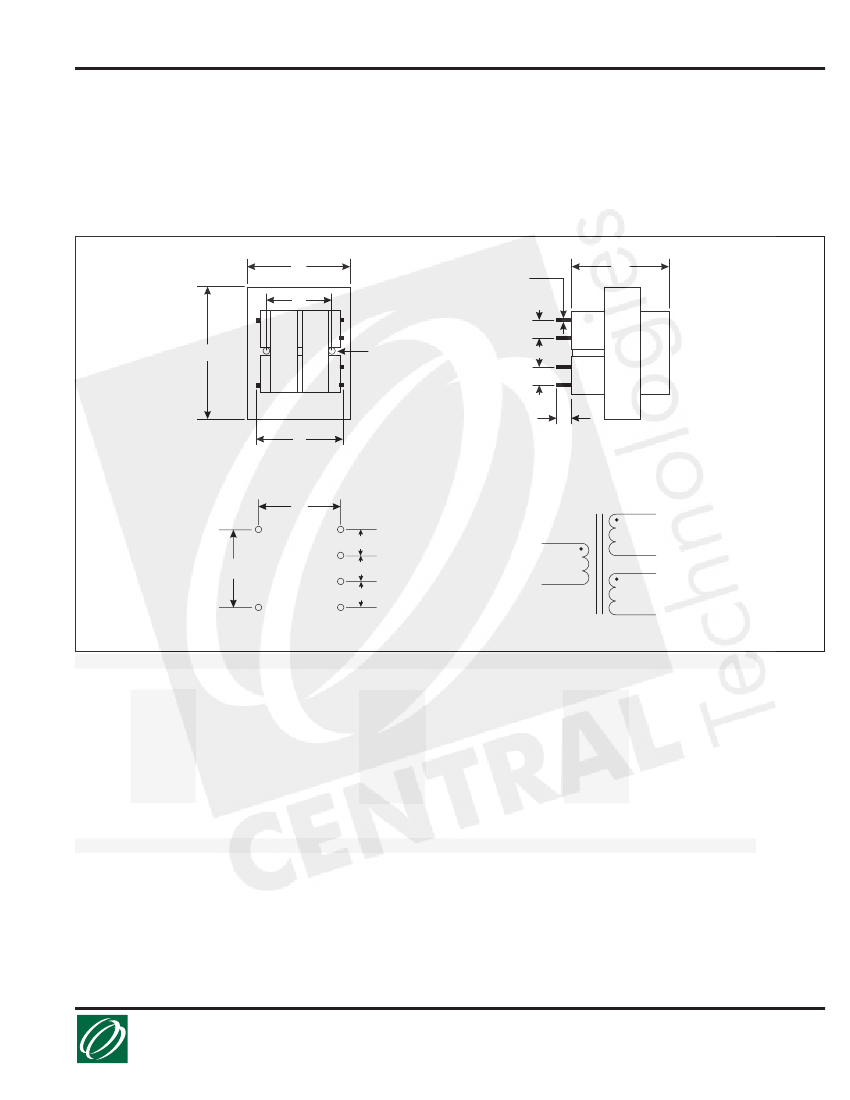

SPECIFICATIONS

Part Numbers

CTSPWF-350-S

CTSPWF-351-S

CTSPWF-352-S

CTSPWF-353-S

CTSPWF-354-S

CTSPWF-355-S

CTSPWF-356-S

CTSPWF-357-S

CTSPWF-358-S

CTSPWF-359-S

CTSPWF-400-S

CTSPWF-401-S

CTSPWF-402-S

CTSPWF-403-S

CTSPWF-404-S

CTSPWF-405-S

CTSPWF-406-S

CTSPWF-407-S

CTSPWF-408-S

CTSPWF-409-S

CTSPWF-500-S

CTSPWF-501-S

CTSPWF-502-S

CTSPWF-503-S

CTSPWF-504-S

CTSPWF-505-S

CTSPWF-506-S

CTSPWF-507-S

CTSPWF-508-S

CTSPWF-509-S

CTSPWF-600-S

CTSPWF-601-S

CTSPWF-602-S

CTSPWF-603-S

CTSPWF-604-S

CTSPWF-605-S

CTSPWF-606-S

CTSPWF-607-S

CTSPWF-608-S

CTSPWF-609-S

CTSPWF-610-S

CTSPWF-611-S

CTSPWF-612-S

CTSPWF-613-S

CTSPWF-614-S

CTSPWF-615-S

CTSPWF-616-S

CTSPWF-617-S

CTSPWF-618-S

CTSPWF-619-S

CTSPWF-620-S

CTSPWF-621-S

CTSPWF-622-S

CTSPWF-623-S

CTSPWF-624-S

CTSPWF-625-S

CTSPWF-626-S

CTSPWF-627-S

CTSPWF-628-S

CTSPWF-629-S

PARALLEL

5V @ 220 mA

6.3V @ 180 mA

8V @ 140 mA

10V @ 110 mA

12V @ 90 mA

14V @ 80 mA

18V @ 60 mA

24V @ 46 mA

28V @ 40 mA

60V @ 20 mA

5V @ 500 mA

6.3V @ 400 mA

8V @ 300 mA

10V @ 240 mA

12V @ 200 mA

14V @ 170 mA

18V @ 130 mA

24V @ 100 mA

28V @ 90 mA

60V @ 40 mA

5V @ 1.2A

6.3V @ 1.0A

8V @ 800 mA

10V @ 600 mA

12V @ 500 mA

14V @ 400 mA

18V @ 340 mA

24V @ 250 mA

28V @ 220 mA

60V @ 100 mA

5V @ 2.4A

6.3V @ 2.0A

8V @ 1.6A

10V @ 1.2A

12V @ 1.0A

14V @ 840 mA

18V @ 700 mA

24V @ 500 mA

28V @ 440 mA

60V @ 200 mA

5V @ 4.0A

6.3V @ 3.2A

8V @ 2.5A

10V @ 2.0A

12V @ 1.6A

14V @ 1.4A

18V @ 1.1A

24V @ 800 mA

28V @ 700 mA

60V @ 320 mA

5V @ 7.2A

6.3V @ 5.7A

8V @ 4.5A

10V @ 3.6A

12V @ 3.0A

14V @ 2.6A

18V @ 2.0A

24V @ 1.5A

28V @ 1.3A

60V @ 600 mA

SERIES

10V CT @ 110 mA

12.6V CT @ 90 mA

16V CT @ 70 mA

20V CT @ 55 mA

24V CT @ 45 mA

28V CT @ 40 mA

36V CT @ 30 mA

48V CT @ 23 mA

56V CT @ 20 mA

120V CT @ 10 mA

10V CT @ 250 mA

12.6V CT @ 200 mA

16V CT @ 150 mA

20V CT @ 120 mA

24V CT @ 100 mA

28V CT @ 85 mA

36V CT @ 65 mA

48V CT @ 50 mA

56V CT @ 45 mA

120V CT @ 20 mA

10V CT @ 600 mA

12.6V CT @ 500 mA

16V CT @ 400 mA

20V CT @ 300 mA

24V CT @ 250 mA

28V CT @ 200 mA

36V CT @ 170 mA

48V CT @ 125 mA

56V CT @ 110 mA

120V CT @ 50 mA

10V CT @ 1.2A

12.6V CT @ 1.0A

16V CT @ 800 mA

20V CT @ 600 mA

24V CT @ 500 mA

28V CT @ 420 mA

36V CT @ 350 mA

48V CT @ 250 mA

56V CT @ 220 mA

120V CT @ 100 mA

10V CT @ 2.0A

12.6V CT @ 1.6A

16V CT @ 1.25A

20V CT @ 1.0A

24V CT 800 mA

28V CT @ 700 mA

36V CT @ 550 mA

48V CT @ 400 mA

56V CT @ 350 mA

120V CT @ 160 mA

10V CT @ 3.6A

12.6V CT @ 2.85A

16V CT @ 2.25A

20V CT @ 1.8A

24V CT @ 1.5A

28V CT @ 1.3A

36V CT @ 1.0A

48V CT @ 750 mA

56V CT @ 650 mA

120V CT @ 300 mA

1.1

Compliant

RoHS

2.4

CHARACTERISTICS

Description:

Power Transformers Standard E Single 115V

Applications:

Linear Power Supplies, Equipments such as monitors and

TV Power Transformers, AC/DC adaptor, Radiogram recorder, Sounder,

Other home electronics.

Packaging:

Bulk

Miscellaneous:

RoHS Compliant.

Additional Information:

Additional electrical & physical information

available upon request

Features:

*High isolation - 2500V RMS Hipot is standard

*Class B insulation - 130°C

*Less Manufacturing time - no cross over of primary and secondary leads

*Secondaries are split so that they can be series or parallel connected.

*Split bobbin allows the primary and secondary to be wound

nonconcentrically (ie, side by side rather than one over the other). This has

the advantage of cost savings and superior performance.

*Variations can be made to meet special needs.

Samples available. See website for ordering information.

6.0

12.0

20.0

36.0

03.20.06

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
