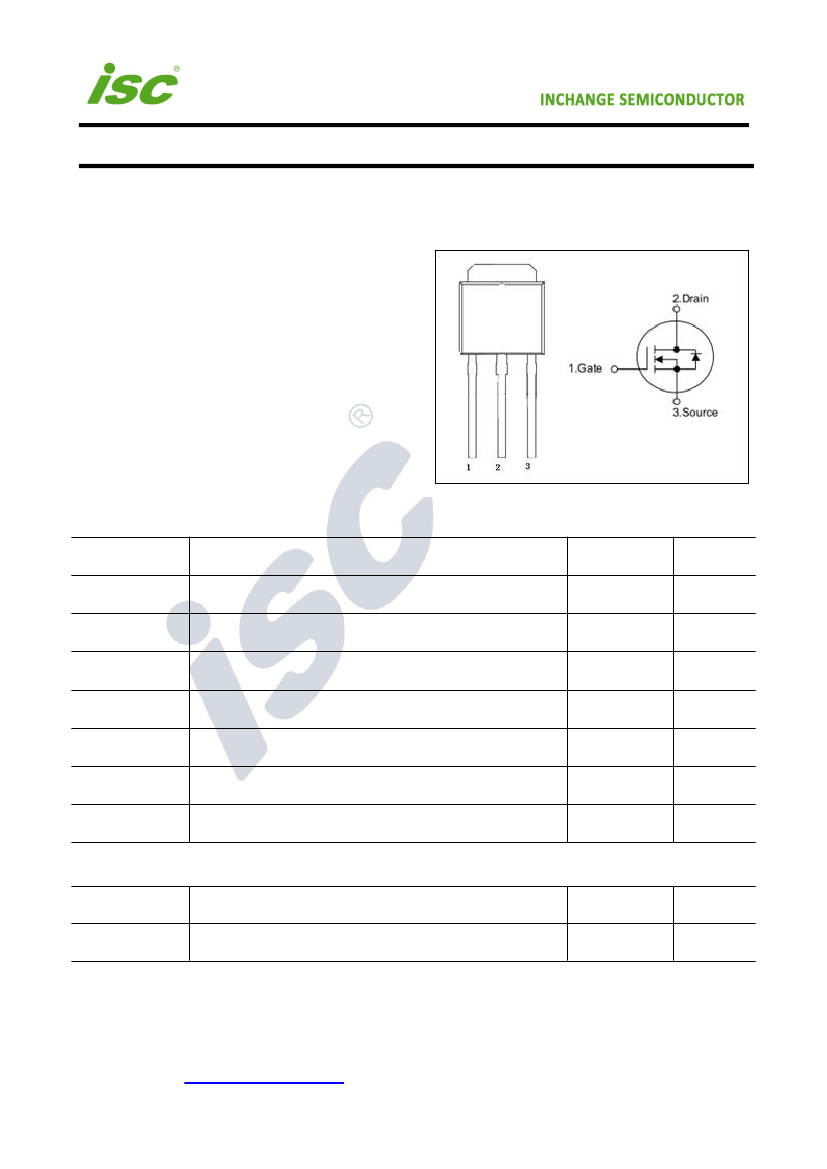

isc N-Channel MOSFET Transistor
·FEATURES
·Drain
Source Voltage-
: V
DSS
= 200V(Min)
·Low
On-Resistance
: R
DS(on)
= 0.36Ω(Max)
·100%
Avalanche Tested
·Minimum
Lot-to-Lot variations for robust device
performance and reliable operation
·APPLICATIONS
·Power
factor correction
·Switched
mode power supplies
·Uninterruptible
Power Supply
·ABSOLUTE
MAXIMUM RATINGS(T
a
=25℃)
SYMBOL
V
DSS
V
GS
I
D
I
DM
P
D
T
j
T
stg
Drain-Source Voltage
Gate-Source Voltage-Continuous
Drain Current-Continuous
Drain Current-Single Plused
Total Dissipation @T
C
=25℃
Max. Operating Junction Temperature
Storage Temperature
PARAMETER
FQU10N20
VALUE
200
±30
7.6
30
55
150
-55~150
UNIT
V
V
A
A
W
℃
℃
·THERMAL
CHARACTERISTICS
SYMBOL
R
th j-c
PARAMETER
Thermal Resistance, Junction to Case
MAX
2.27
UNIT
℃/W
isc website
：
www.iscsemi.com
1
isc & iscsemi
is registered trademark
isc N-Channel MOSFET Transistor
·ELECTRICAL
CHARACTERISTICS
T
C
=25℃ unless otherwise specified
SYMBOL
V
(BR)DSS
V
GS
(th
)
V
SD
R
DS(
on
)
I
GSS
PARAMETER
Drain-Source Breakdown Voltage
Gate Threshold Voltage
Diode Forward On-voltage
Drain-Source On-Resistance
Gate-Body Leakage Current
CONDITIONS
V
GS
= 0; I
D
=250µA
V
DS
= V
GS
; I
D
=250µA
I
S
= 7.6A ;V
GS
= 0
V
GS
= 10V; I
D
= 3.8A
V
GS
=
±30V;V
DS
= 0
V
DS
=200V; V
GS
= 0
I
DSS
Zero Gate Voltage Drain Current
V
DS
=160V; V
GS
= 0;T
C
=125℃
MIN
200
2
FQU10N20
TYPE
MAX
UNIT
V
4
1.5
0.36
±100
1
V
V
Ω
nA
µA
10

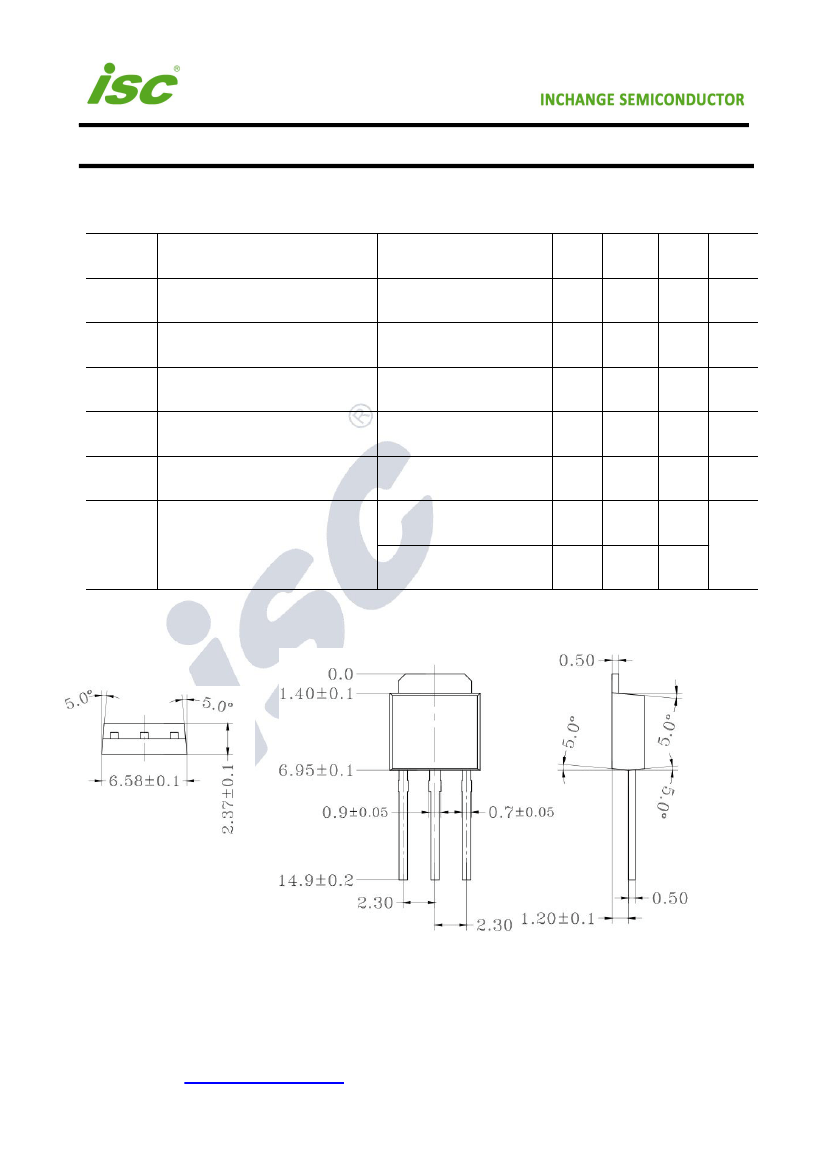

TO-251 outline dimensional drawing
isc website
：
www.iscsemi.com
2
isc & iscsemi
is registered trademark
isc N-Channel MOSFET Transistor
FQU10N20
