IRF2525 datasheet, PDF - EEWORLD Datasheet

IRF2525: DescriptionPower Field-Effect Transistor, 20A I(D), 250V, 0.125ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB,; CategoryDiscrete semiconductor The transistor; File Size229KB，8 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

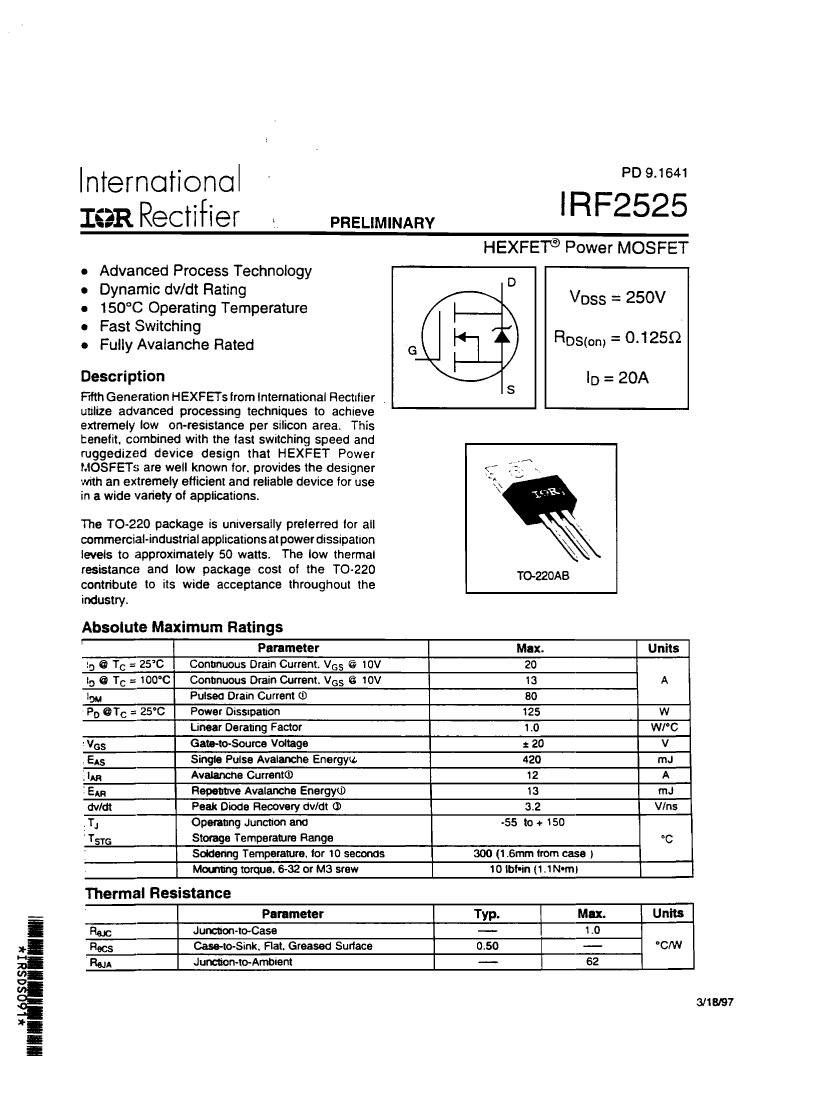

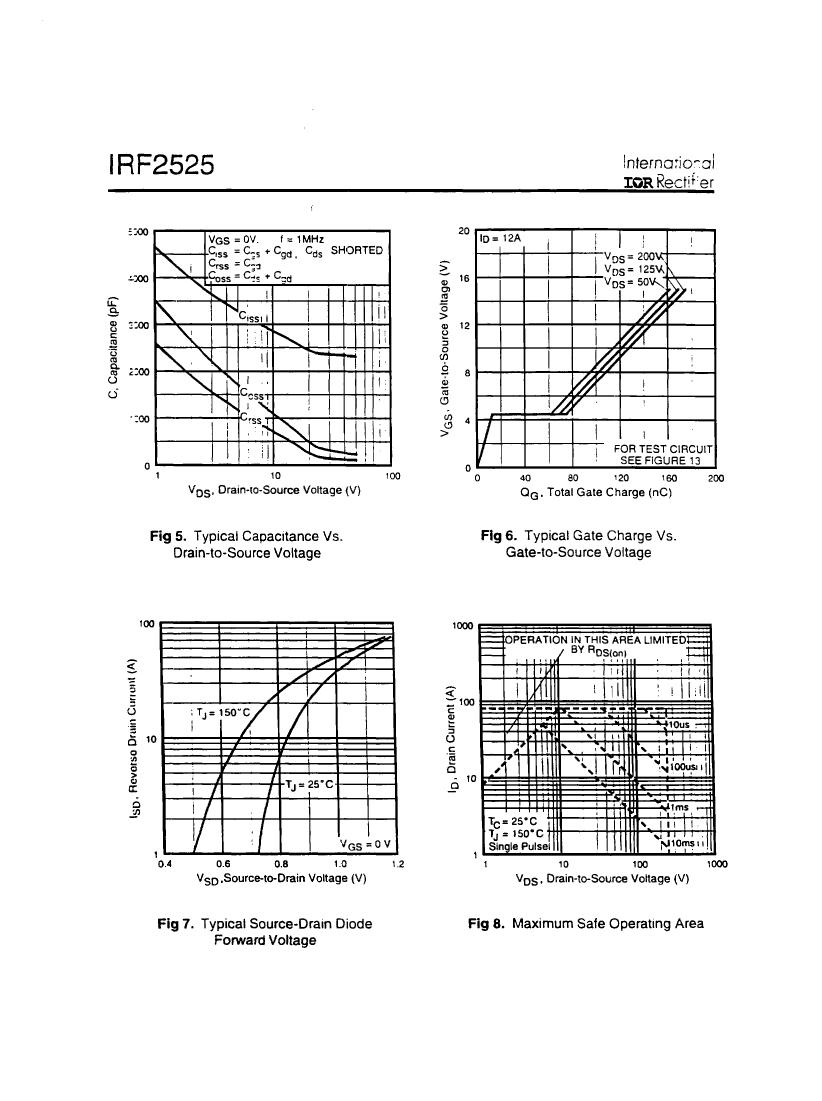

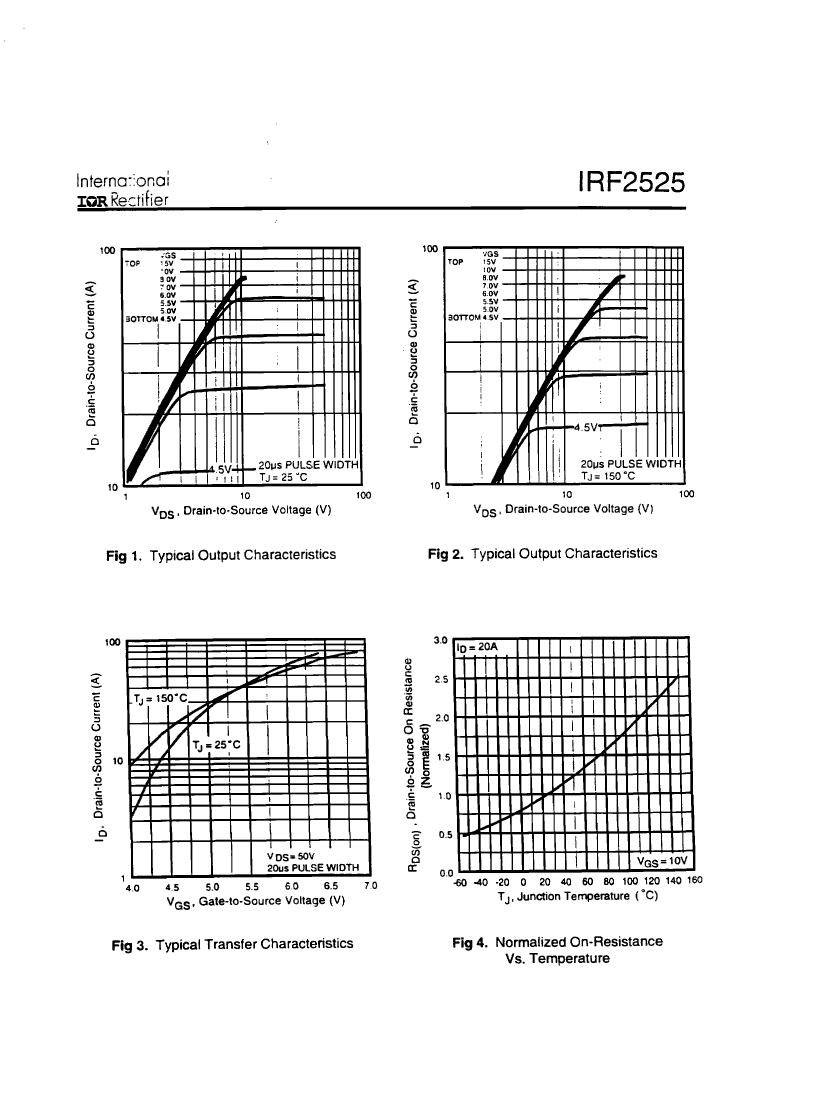

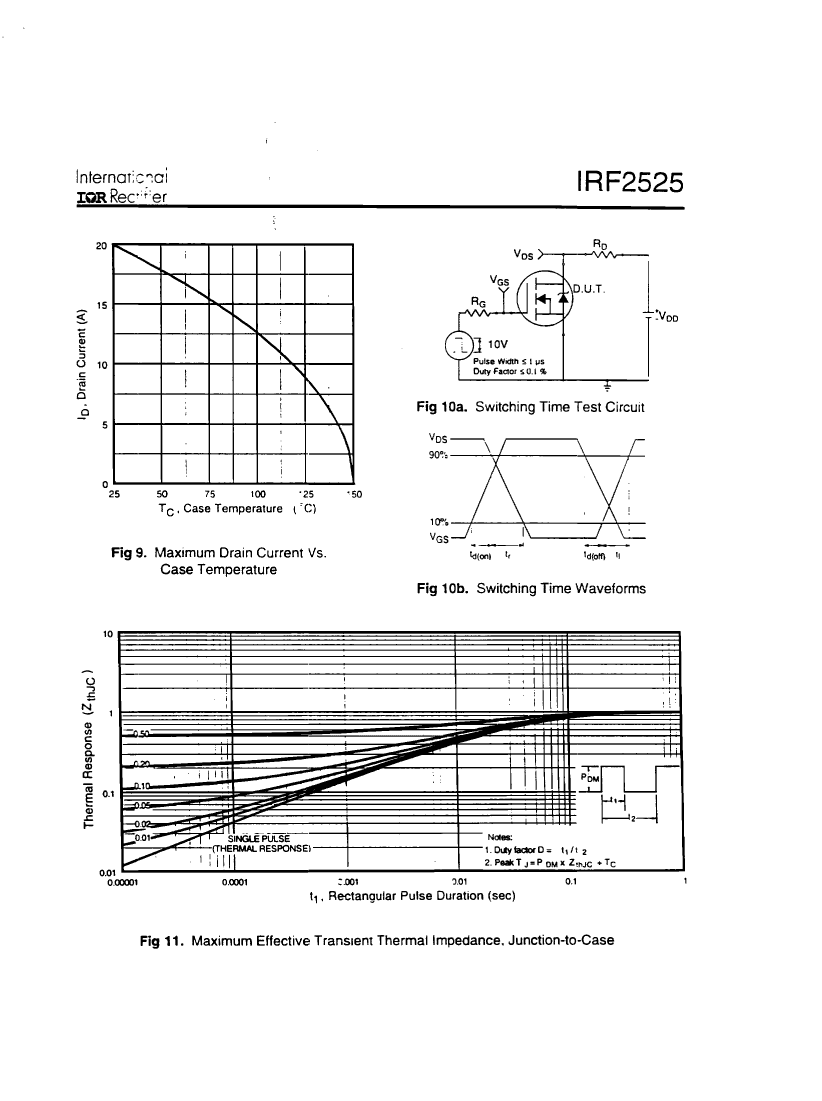

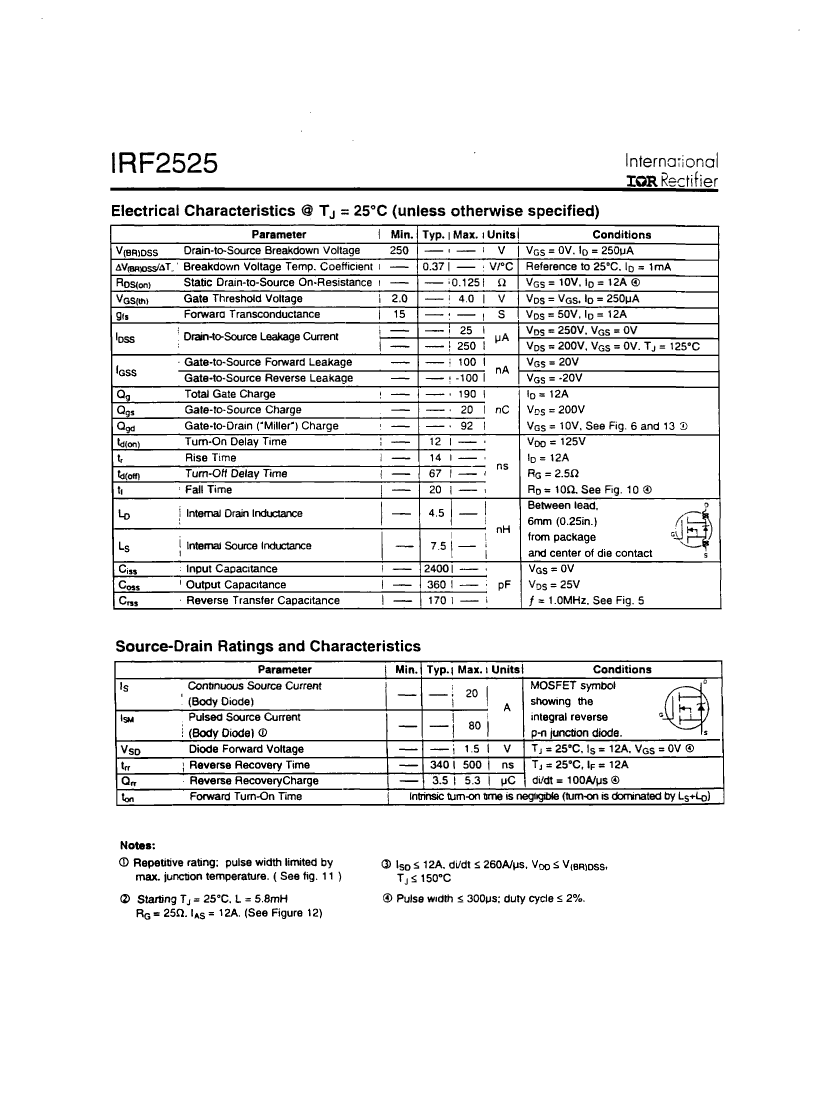

IRF2525 Overview

Power Field-Effect Transistor, 20A I(D), 250V, 0.125ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	AVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas)	420 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	250 V
Maximum drain current (ID)	20 A
Maximum drain-source on-resistance	0.125 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	80 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON

	IRF2525	IRF2525PBF
Description	Power Field-Effect Transistor, 20A I(D), 250V, 0.125ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB,	Power Field-Effect Transistor, 20A I(D), 250V, 0.125ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB,
Is it Rohs certified?	incompatible	conform to
Maker	Infineon	Infineon
Reach Compliance Code	unknow	compliant
Other features	AVALANCHE RATED	AVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas)	420 mJ	420 mJ
Shell connection	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	250 V	250 V
Maximum drain current (ID)	20 A	20 A
Maximum drain-source on-resistance	0.125 Ω	0.125 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Number of components	1	1
Number of terminals	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum pulsed drain current (IDM)	80 A	80 A
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
