PCI60-150M

Description
General Purpose Inductor, 15uH, 20%, 1 Element, SMD, CHIP, 7360
CategoryPassive components    inductor
File Size35KB，1 Pages
ManufacturerALLIED [Allied Electronics]
Download Datasheet Parametric Compare View All

PCI60-150M Overview

General Purpose Inductor, 15uH, 20%, 1 Element, SMD, CHIP, 7360

PCI60-150M Parametric

Parameter NameAttribute value
MakerALLIED [Allied Electronics]
Reach Compliance Codeunknow
ECCN codeEAR99
DC Resistance0.036 Ω
Nominal inductance(L)15 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberPCI60
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum rated current4 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%

Preview

Download Datasheet

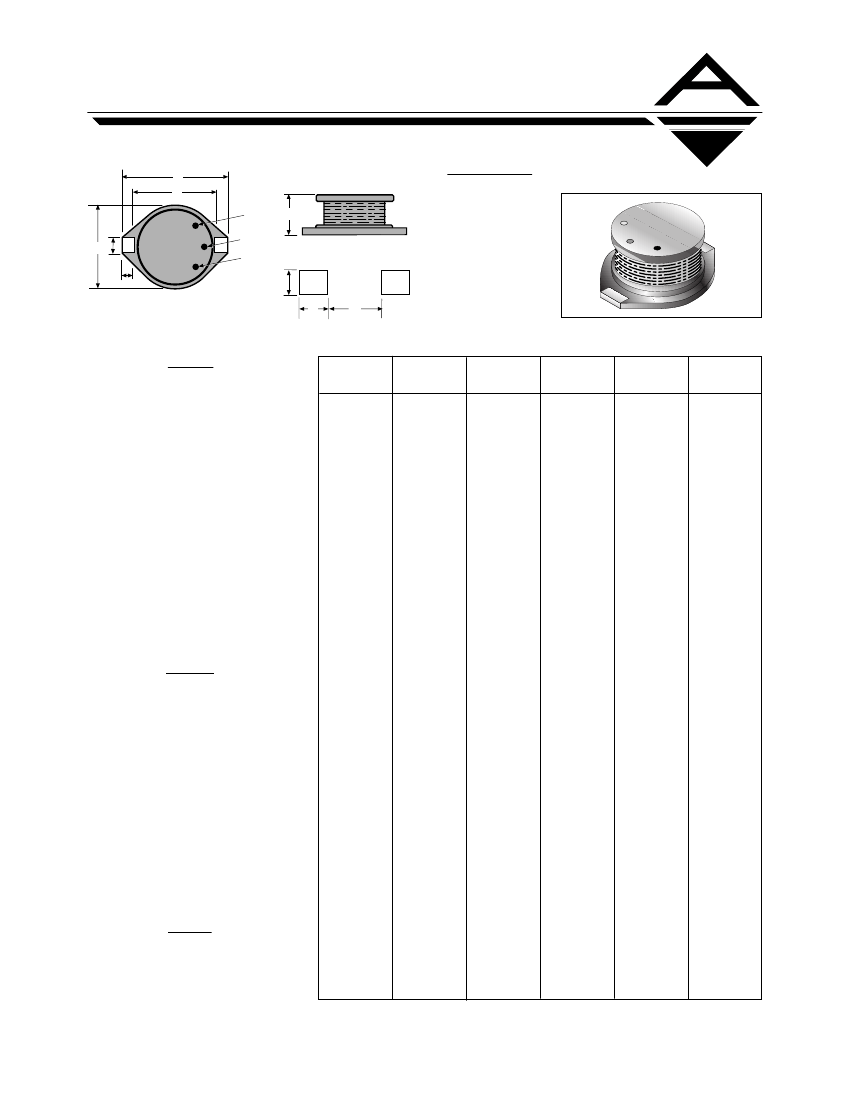

PCI60
A
F
Power Chip Inductors
Dimensions
(In.)
PCI60
A .730 Max.
B .600 Max.
C .280 Max.
D .100
E .100
F .500
G .490
H .118
I .110
1st
E
B
D
2nd
3rd
C
I
H
G
Features
• Small size allows for high mounting
density
• Compact and low profile
• Large permissable DC current capability
with low DC resistance
• Provided in tape and reel packaging for
pick and place assembly
• Non-standard values
• Custom inductances available upon
request
Allied
Part
Number
Inductance
(µh)
Tolerance
(%)
DCR
Max.
(Ω)
Isat
Max.
(A)
Irms
Max.
(A)
PCI60-1R0M
PCI60-2R2M
PCI60-3R3M
PCI60-5R6M
PCI60-100M
PCI60-150M
PCI60-220M
PCI60-330M
PCI60-470M
PCI60-680M
PCI60-101M
PCI60-151M
PCI60-221M
PCI60-331M
PCI60-471M
Physical
1.0
2.2
3.3
5.6
10
15
22
33
47
68
100
150
220
330
470
680
1000
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
.011
.014
.016
.022
.032
.036
.047
.066
.087
.13
.19
.25
.38
.56
.85
1.20
1.80
20
16
14
12
10
8.0
7.0
5.5
4.5
3.5
3.0
2.6
2.4
1.9
1.4
1.2
1.0
8.6
7.1
6.2
5.3
4.3
4.0
3.5
3.0
2.6
2.3
1.8
1.5
1.2
1.0
0.82
0.72
0.56
Electrical
Inductance Range:
1.0µh to 1000µh.
Tolerance:
±
20% over the entire
inductance range.
Test Frequency:
Inductance measured
at 100KHz, 0.1 Vrms.
After soldering, push
Operating Temp. Range:
i-40°
to +85°C.ll
Inductance Drop:
10% typically at the
rated Isat.0
to 2000) x 10
-6
°C.
Marking:
Color Code using standard EIA
three dot system.
Packaging:
250 pieces per 13 inch reel.
PCI60-681M
PCI60-102M
All specifications subject to change without notice.
ALLIED COMPONENTS INTERNATIONAL
14712 SINCLAIR CIRCLE TUSTIN, CALIFORNIA 92780 714/665-1140 800/295-3800 FAX 714/665-1150
24
