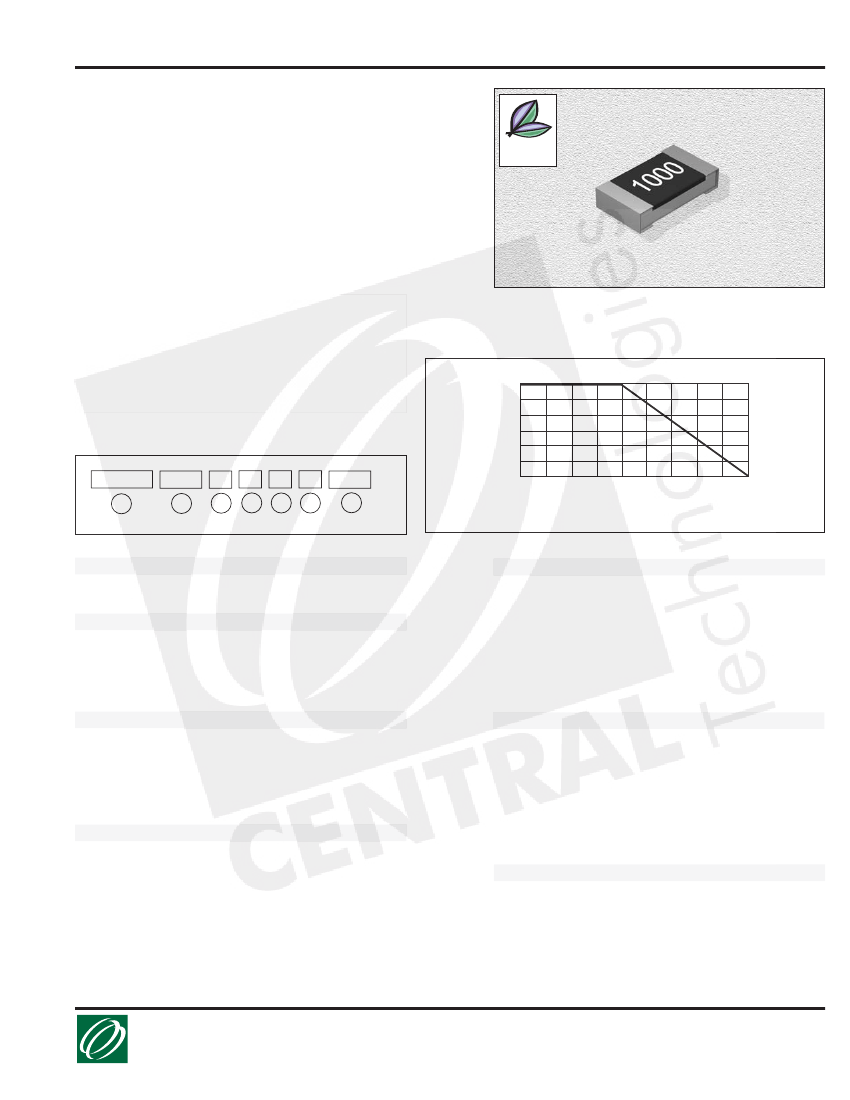

Thin Film Precision Chip Resistors
ctparts.com
Not shown at actual size.
CTTFR Series
Compliant
RoHS
FEATURES
- Thin Film Passivated NiCr Resistor
- Very Tight Tolerance from ±0.01%~1%
- Extremely Low TCR from ±5~±50 PPM/°C
- Wide R-Value Range
APPLICATIONS
- Medical Equipment
- Testing / Measurement Equipment
- Consumer Product
- Printer Equipment
- Automatic Equipment Controller
- Converters
- Communication Device, Cell phone, GPS, PDA
DERATING CURVE
Power Ratio (%)
100
80
60
40
30
20
0
20
40
60
70
80 100 120 140
155
PART NUMBERING
CTTFR 0402 T
3
2
1
1. Product Type
Product Type
CTTFR
T
4
D
5
1000
7
6
Ambient Temperature(°C)
5. TCR
Codes
Thin Film Precision Chip Resistor
S
B
N
Dimensions(LxW)
1.00x0.50mm
1.60x0.80mm
2.00x1.25mm
3.00x1.50mm
C
D
Type
±5 PPM/°C
±10 PPM/°C
±15 PPM/°C
±25 PPM/°C
±50 PPM/°C
2. Dimensions (LxW)
EIA
0402
0603
0805
1206
3. Resistance Tolerance
Codes
T
B
C
D
F
Resistance Tolerance
±0.01%
±0.10%
±0.25%
±0.50%
±1.00%
6. High Power Rating
Codes
V
W
X
Power Rating
Standard / Special
1/4W
1/8W
1/10W
4. Packaging
Codes
T
B
Tape & Reel QTY’s
CTTFR0402
CTTFR0603
CTTFR0805
CTTFR1206
=
=
=
=
10,000pcs
5,000pcs
5,000pcs
5,000pcs
Type
Tape & Reel
Bulk
7. Resistance
Codes
1000
2201
1002
4992
1003
Type
Ω
100Ω
Ω
2200Ω
Ω
10000Ω
Ω
49900Ω
Ω
100000Ω
01.23.07
Technologies
Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2007 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
CENTRAL
Thin Film Precision Chip Resistors
ctparts.com
CTTFR Series

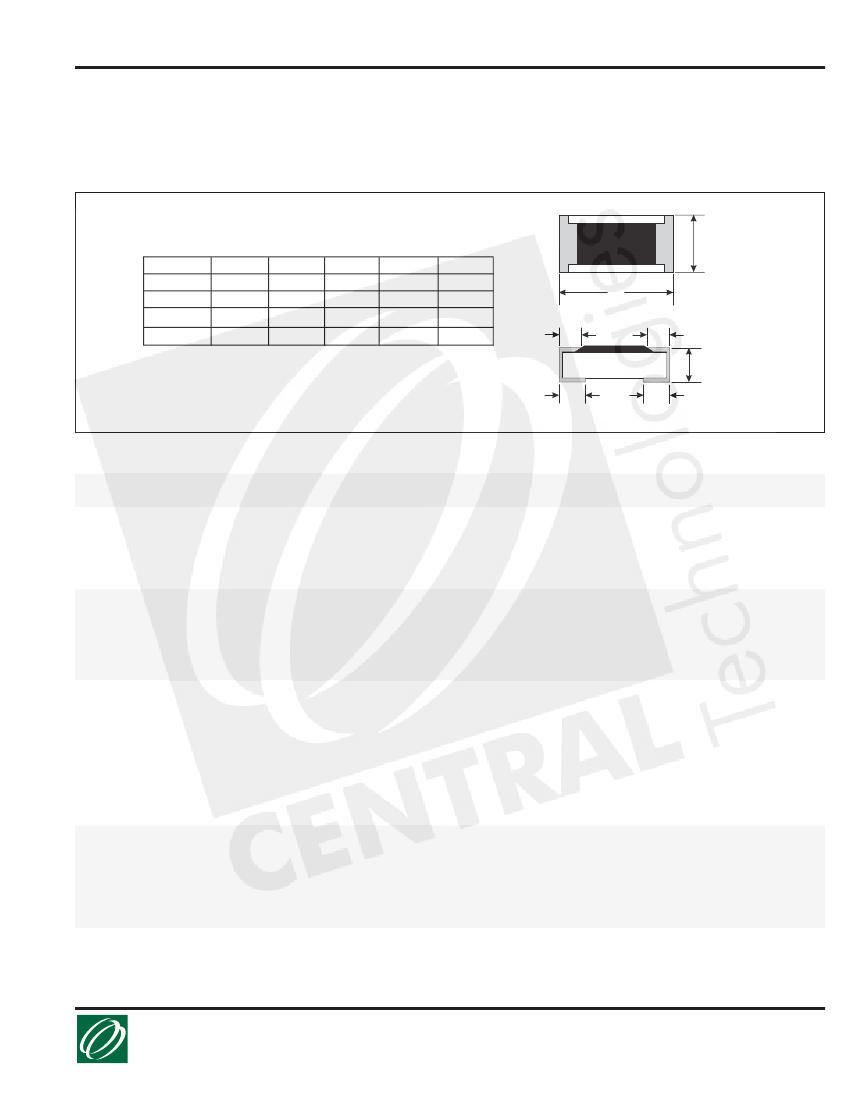

PHYSICAL DIMENSIONS
Unit: mm
Type
CTTFR0402
CTTFR0603
CTTFR0805
CTTFR1206
L
1.00±0.05
1.55±0.10
2.00±0.15
3.05±0.15
W
0.50±0.05
0.80±0.10
1.25±0.15
1.55±0.15
T
0.30±0.05
0.45±0.10
0.55±0.10
0.55±0.10
D1
0.20±0.10
0.30±0.20
0.30±0.20
0.42±0.20
D2
0.20±0.10
0.30±0.20
0.40±0.25
0.35±0.25
W
L
D1
D1
T
D2
D2
STANDARD ELECTRICAL SPECIFICATIONS
Type
Power
Rating
at 70°C
Operating
Temp.
Range
Max.
Operating
Voltage
Max.
Overloading
Voltage
Resistance
Tolerance
(±)
0.01%, 0.05%, 0.1%, 0.25%, 0.5%
0.01%, 0.05%, 0.1%, 0.25%, 0.5%
0.01%, 0.05%
0.1%, 0.25%, 0.5%, 1%
Resistance
Range
50Ω~2KΩ
50Ω~12KΩ
50Ω~12KΩ
10Ω~100KΩ
TCR
(±PPM/°C)
5
10 , 15
25 , 50
25 , 50
CTTFR0402
1/16W
-55°C to +155°C
25V
50V
0.01%, 0.05%, 0.1%, 0.25%, 0.5%
0.01%, 0.05%, 0.1%, 0.25%, 0.5%
CTTFR0603
1/16W
-55°C to +155°C
50V
100V
0.01%
0.05%
0.1%, 0.25%, 0.5%, 1%
0.25%, 0.5%, 1%
50Ω~8KΩ
25Ω~100KΩ
25Ω~100KΩ
4.7Ω~150KΩ
4.7Ω~402KΩ
2Ω~4.6Ω
5
10 , 15
25 , 50
25 , 50
25 , 50
25 , 50
0.01%, 0.05%, 0.1%, 0.25%, 0.5%
0.01%, 0.05%, 0.1%, 0.25%, 0.5%
CTTFR0805
1/10W
-55°C to +155°C
100V
200V
0.01%
0.05%
0.1%, 0.25%, 0.5%, 1%
0.25%, 0.5%, 1%
50Ω~16KΩ
25Ω~200KΩ
25Ω~200KΩ
4.7Ω~500KΩ
4.7Ω~1MΩ
1Ω~4.6Ω
5
10 , 15
25 , 50
25 , 50
25 , 50
25 , 50
0.01%, 0.05%, 0.1%, 0.25%, 0.5%
0.01%, 0.05%, 0.1%, 0.25%, 0.5%
CTTFR1206
1/8W
-55°C to +155°C
150V
300V
0.01%
0.05%
0.1%, 0.25%, 0.5%, 1%
0.25%, 0.5%, 1%
50Ω~30KΩ
25Ω~500KΩ
25Ω~500KΩ
4.7Ω~1MΩ
4.7Ω~1MΩ
1Ω~4.6Ω
1MΩ~2MΩ
5
10 , 15
25 , 50
25 , 50
25 , 50
25 , 50
