BAS116

Description
0.2 A, 75 V, SILICON, SIGNAL DIODE
CategoryDiscrete semiconductor    diode
File Size99KB,4 Pages
ManufacturerSIEMENS
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

BAS116 Online Shopping

Suppliers Part Number Price MOQ In stock
BAS116 - - View Buy Now

BAS116 Overview

0.2 A, 75 V, SILICON, SIGNAL DIODE

BAS116 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSIEMENS
package instructionR-PDSO-G3
Reach Compliance Codeunknow
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.25 V
JESD-30 codeR-PDSO-G3
JESD-609 codee0
Maximum non-repetitive peak forward current4.5 A
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Maximum output current0.25 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum power dissipation0.37 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage85 V
Maximum reverse current0.005 µA
Maximum reverse recovery time3 µs
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationDUAL
Silicon Low Leakage Diode
q
Low-leakage applications
q
Medium speed switching times
q
Single diode
BAS 116
Type
BAS 116
Marking
JVs
Ordering Code
(tape and reel)
Q62702-A919
Pin Configuration
Package
1)
SOT-23
Maximum Ratings
Parameter
Reverse voltage
Peak reverse voltage
Forward current
Surge forward current,
t
= 1
µ
s
Total power dissipation,
T
S
= 54 ˚C
Junction temperature
Storage temperature range
Thermal Resistance
Junction - ambient
2)
Junction - soldering point
R
th JA
R
th JS
330
260
Symbol
V
R
V
RM
I
F
I
FS
P
tot
T
j
T
stg
Values
75
85
250
4.5
370
150
– 65 … + 150
Unit
V
mA
A
mW
˚C
K/W
1)
2)
For detailed information see chapter Package Outlines.
Package mounted on epoxy pcb 40 mm
×
40 mm
×
1.5 mm/6 cm
2
Cu.
Semiconductor Group
1
5.91

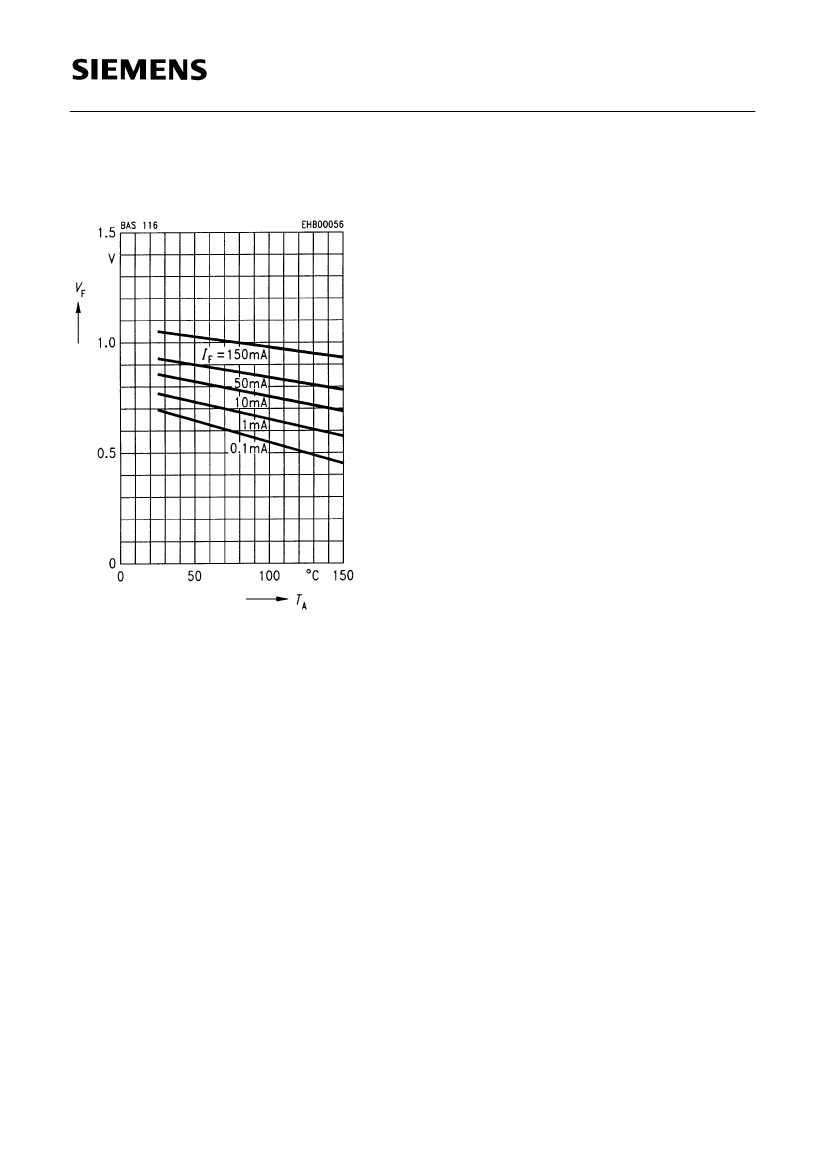

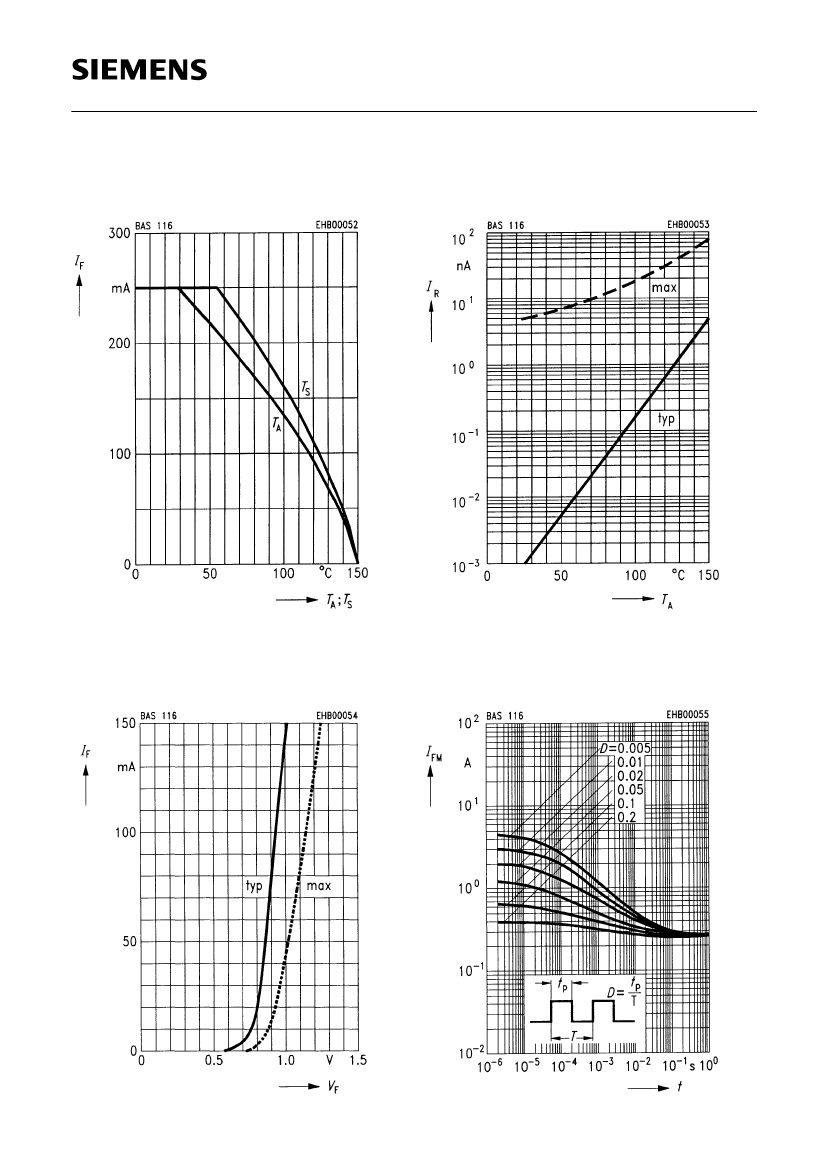

BAS116 Related Products

BAS116 Q62702-A919
Description 0.2 A, 75 V, SILICON, SIGNAL DIODE 0.2 A, 75 V, SILICON, SIGNAL DIODE
Diode component materials SILICON silicon
Diode type RECTIFIER DIODE Signal diode
Number of components 1 1
Number of terminals 3 3
Maximum repetitive peak reverse voltage 85 V 75 V
Maximum reverse recovery time 3 µs 0.0060 us
surface mount YES Yes
Terminal form GULL WING GULL WING
Terminal location DUAL pair
