T107SH9ZQE datasheet, PDF - EEWORLD Datasheet

T107SH9ZQE: DescriptionToggle Switch, SPDT, On-off-(on), Horizontal, 2A, 28VDC, Solder Lug Terminal, Toggle Bat Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size197KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

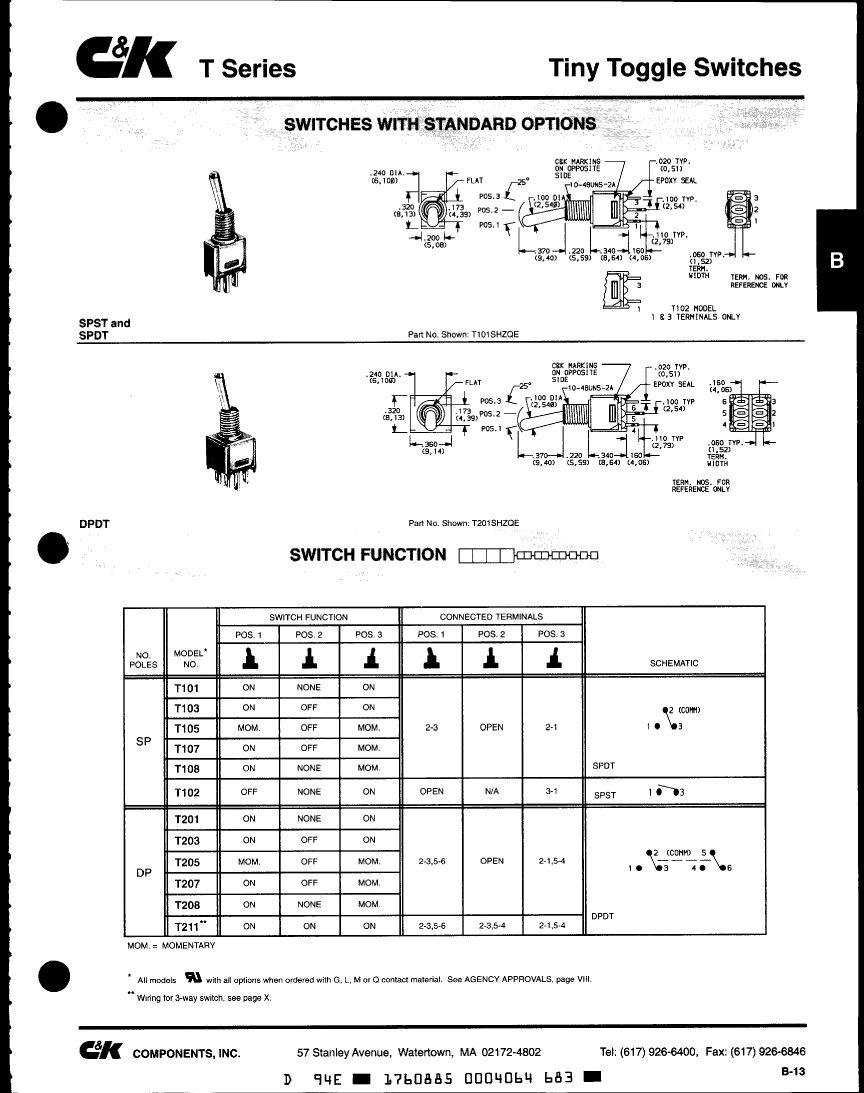

T107SH9ZQE Overview

Toggle Switch, SPDT, On-off-(on), Horizontal, 2A, 28VDC, Solder Lug Terminal, Toggle Bat Actuator, Panel Mount

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	unknow
Actuator angle	25 deg
Executor completed	CHROME
Actuator length	0.37 inch
Actuator material	BRASS
Actuator type	TOGGLE BAT
body width	5.08 mm
body height	27.686 mm
Body length or diameter	8.128 mm
Casing diameter	0.19 inch
Nozzle length	0.24 inch
Casing type	UNTHREADED

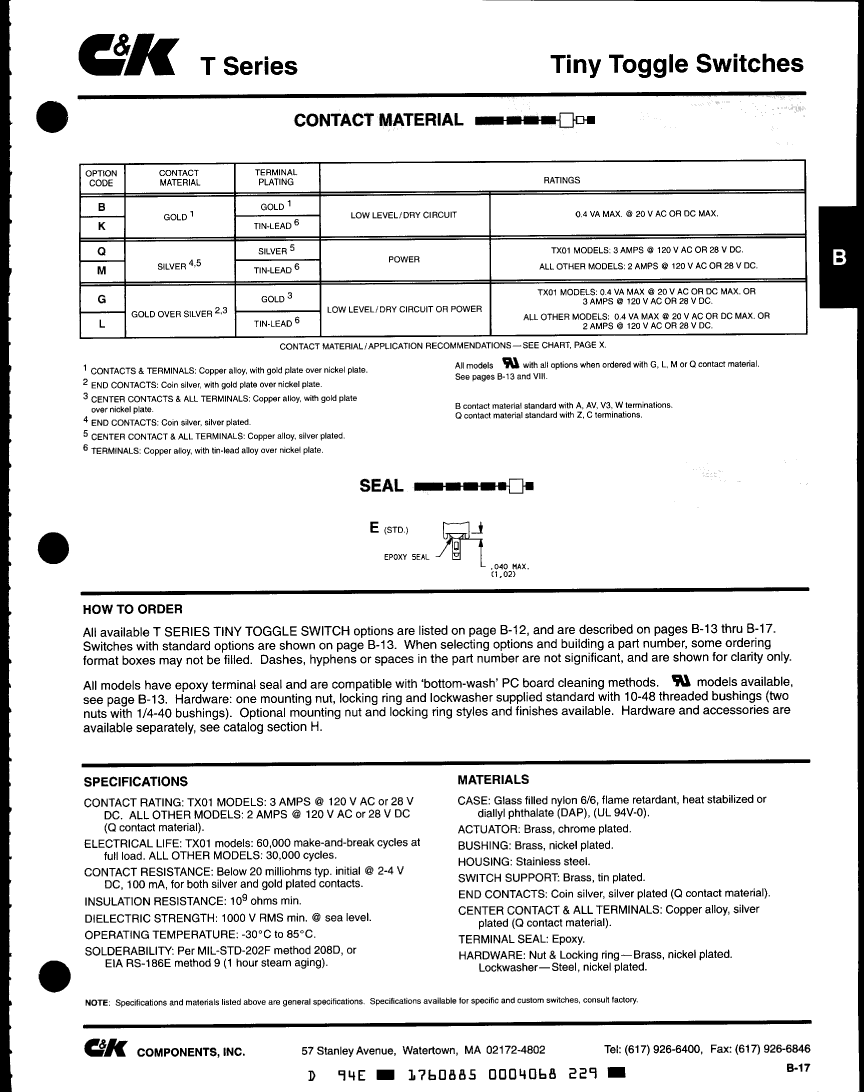

center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	2A@120VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@28VDC
Contact function	ON-OFF-(ON)
Contact resistance	0.02 mΩ
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	30000 Cycle(s)
End contact material	SILVER
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	T
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY
Solderability	MIL-STD
surface mount	NO
Switch action	HORIZONTAL
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal length	0.16 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER LUG
Washability	SOLVENT
