CTUF1515V-202M2R0: DescriptionCommon Mode Chokes - Radial; CategoryAnalog mixed-signal IC filter; File Size180KB，1 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric Compare View All

CTUF1515V-202M2R0 Overview

Common Mode Chokes - Radial

CTUF1515V-202M2R0 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Maximum DC resistance	0.15 Ω
filter type	DATA LINE FILTER
high	27.5 mm
inductance	2000 µH
Minimum insulation resistance	100 MΩ
length	23 mm
Manufacturer's serial number	CTUF1515V
Installation type	THROUGH HOLE MOUNT
Number of functions	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
physical size	L23.0XB19.0XH27.5 (mm)/L0.906XB0.748XH1.083 (inch)
Rated current	2 A
Rated voltage	250 V
width	19 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Common Mode Chokes - Radial

ctparts.com

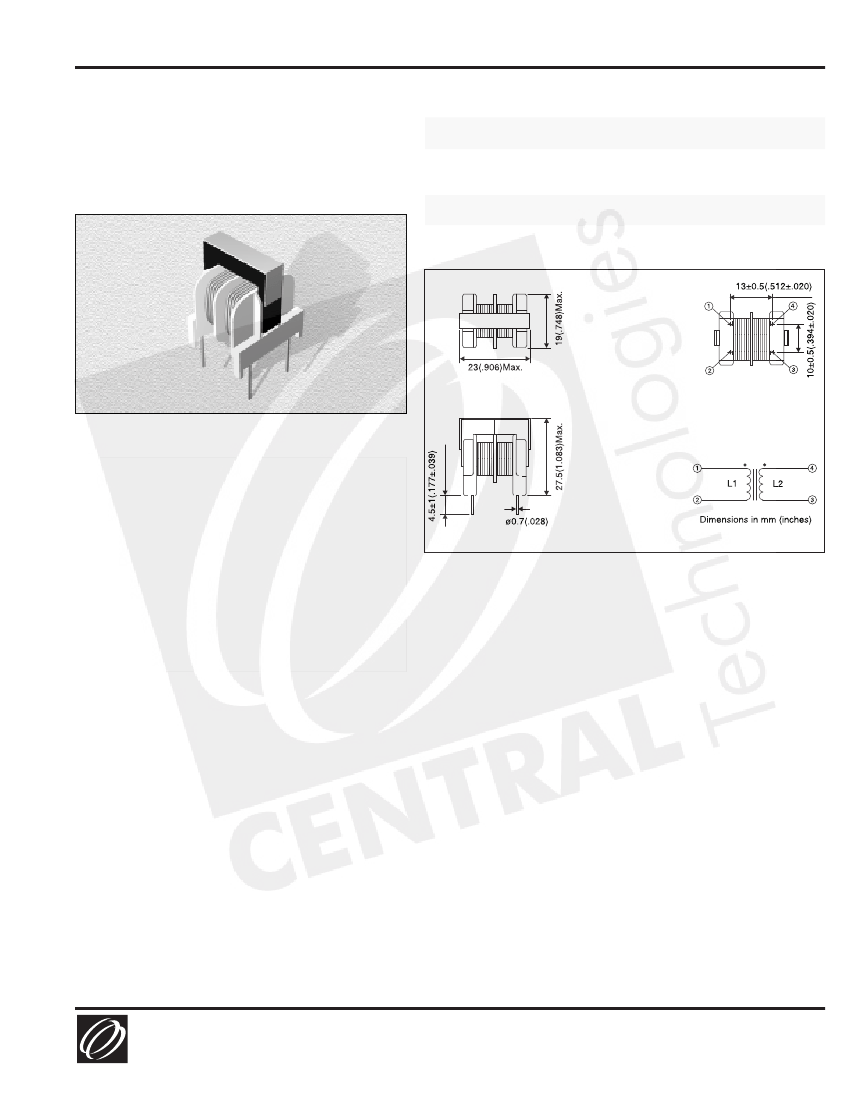

CTUF1515V Series

From 2.0 mH to 45 mH

Not shown at actual size.

SPECIFICATIONS

Part

Number

* Indicates the inductance difference between the coil L1 and L2.

Inductance

DCR

Rated Current

(Min.)

Difference*

(Max.)

(A)

(mH)

(µH Max.)

(W)

W

45

25

15

10

4.0

3.0

2.0

900

500

300

200

80

85

50

2.3

1.3

0.9

0.5

0.3

0.17

0.15

0.5

0.7

0.8

1.0

1.5

2.0

CTUF1515V-453M0R5

CTUF1515V-253M0R7

CTUF1515V-153M0R8

CTUF1515V-103M1R0

CTUF1515V-402M1R5

CTUF1515V-302M2R0

CTUF1515V-202M2R0

PHYSICAL DIMENSIONS

CHARACTERISTICS

Description:

Common mode choke coils.

Applications:

For AC power supply/compact, separable bobbin.

Rated Voltage:

250Vac

Operating Temperature Range:

-20°C to +105°C including self

temperature rise.

Temperature Rise:

45°C maximum each line.

Dielectric Withstanding Voltage:

2000Vac between each

winding for 1 minute.

Insulation Resistance:

100MW minimum between each winding

for 1 minute.

Additional Information:

Additional electrical & physical

information available upon request. Different inductance and

current products are available as well.

Samples available. See website for ordering information.

05.09.02

Technologies

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL

CTUF1515V-202M2R0 Related Products

	CTUF1515V-202M2R0	CTUF1515V	CTUF1515V-103M1R0	CTUF1515V-153M0R8	CTUF1515V-253M0R7	CTUF1515V-302M2R0	CTUF1515V-402M1R5	CTUF1515V-453M0R5
