CUSOE3391: DescriptionClock Oscillator; File Size108KB，1 Pages; ManufacturerCrystek

Download Datasheet Compare View All

CUSOE3391 Overview

Clock Oscillator

Preview

Download Datasheet

View All

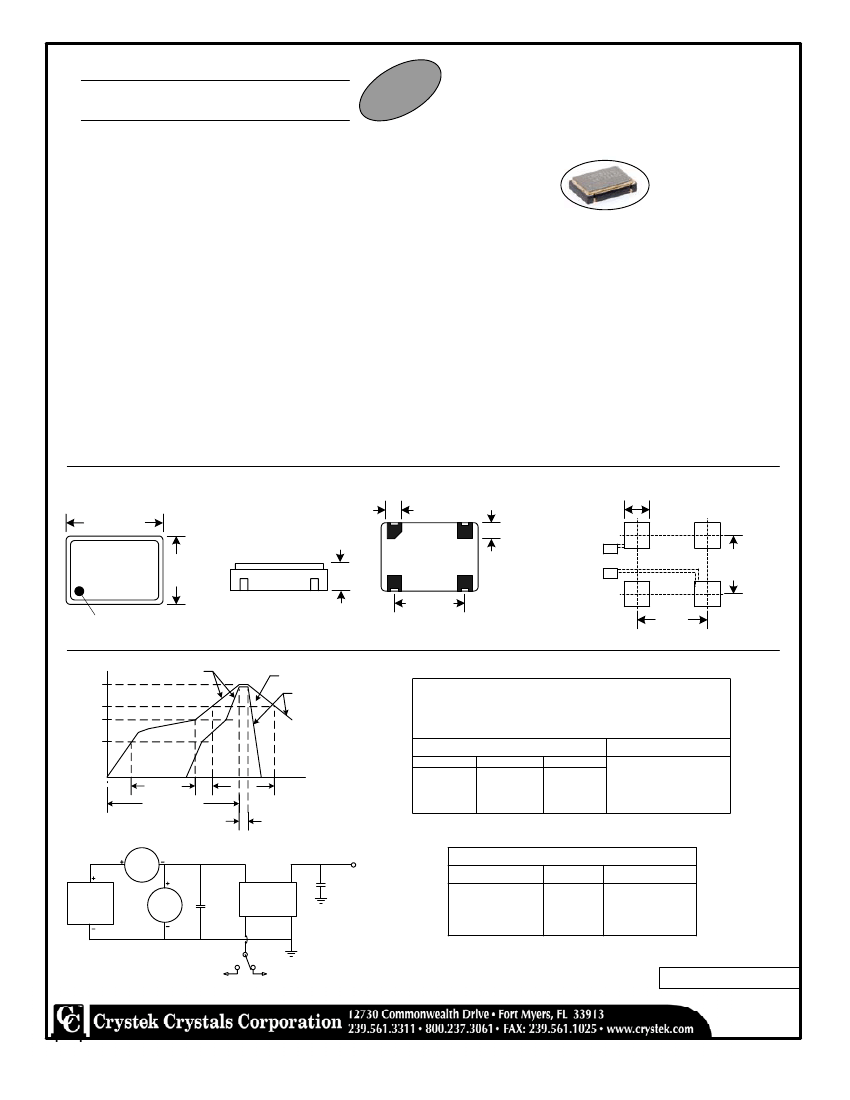

CUSO33xx Model

3.2X5 mm SMD,

3.3V, CMOS

Frequency Range:

Frequency Stability:

Temperature Range:

Operating:

(Option M)

(Option E)

Storage:

Input Voltage:

Input Current:

Standby Mode:

Output:

Symmetry:

Rise/Fall Time:

Logic:

Load:

Jitter:

12KHz to 20MHz

ree

dF S

Le oH ant

R pli

Clock Oscillator

1.544MHz to 106.25MHz

±25ppm to ±100ppm

0°C to 70°C

-20°C to 70°C

-40°C to 85°C

-55°C to 120°C

3.3V ± 0.3V

<30MHz 4-10mA (freq. dependent)

>31MHz 10-20mA (freq. dependent)

5uA Max

CMOS

45/55% Max @ 50% Vdd

2ns Typ., 4ns Max

"0" = 10% Vdd Max

"1" = 90% Vdd Min

15pF Max

0.5ps Typ, 1ps Max RMS

Designed to meet application

requirements for smaller layout areas.

The CUSO (Crystek Ultra Small

Oscillator) Series utilizes fundamental

and 3rd overtone crystal design

thereby providing the proven

performance of our larger 5x7mm

package. Standby mode and Power-

save Pull-up Resistance is standard.

Packaged on tape and reel in

quantities of 1K.

Aging:

<3ppm 1st/yr, 1ppm every year thereafter

SUGGESTED PAD LAYOUT

.047

(1.20 )

.100 ±.007

(2.54 ±.2)

.039

(1.0)

.063 SQ

(1.60)

Dimensions inches (mm)

All dimensions are Max unless otherwise specified.

.205 Max

(5.2)

P/N DC

Freq

Denotes pad 1

.134 Max

(3.4)

.043 ±.004 #4

(1.1 ±.1)

.086

(2.2)

.100

(2.54)

0.01uF Bypass Capacitor Recommended

RECOMMENDED REFLOW SOLDERING PROFILE

TEMPERATURE

260°C

217°C

200°C

150°C

Ramp-Up

3°C/Sec Max.

Critical Temperature

Zone

Ramp-Down

6°C/Sec.

Crystek Part Number Guide

Example: CUSO3392-44.736

Example: CUSOM3392-44.736

Example: CUSOE3392-44.736

Temperature

0/ 70°C

-20/ 70°C

-40/ 85°C

Frequency Stability

+/- 100ppm

+/- 50ppm

+/- 25ppm

Preheat

180 Secs. Max.

8 Minutes Max.

90 Secs. Max.

CUSO3390 CUSOM3390 CUSOE3390

CUSO3392 CUSOM3392 CUSOE3392

CUSO3391 CUSOM3391 CUSOE3391

260°C for

10 Secs. Max.

NOTE: Reflow Profile with 240°C peak also acceptable.

OUT

pin 4

Vdd

OUT

Standby Function

Function pin 1

Open

"1" level .7Vcc Min

"0" level .3Vcc Max

Output pin

Active

High Z

Oscillator State

Normal Operation

Stopped

pin 3

OSC.

GND

PWR

Supply

O/P Load

incl Probe Cl

Bypass

Cap.

pin 1

pin 2

High Impedance

GND or "LOW"

Oscillation

OPEN or "HIGH"

Specifications subject to change without notice.

TD-021102 Rev. C
