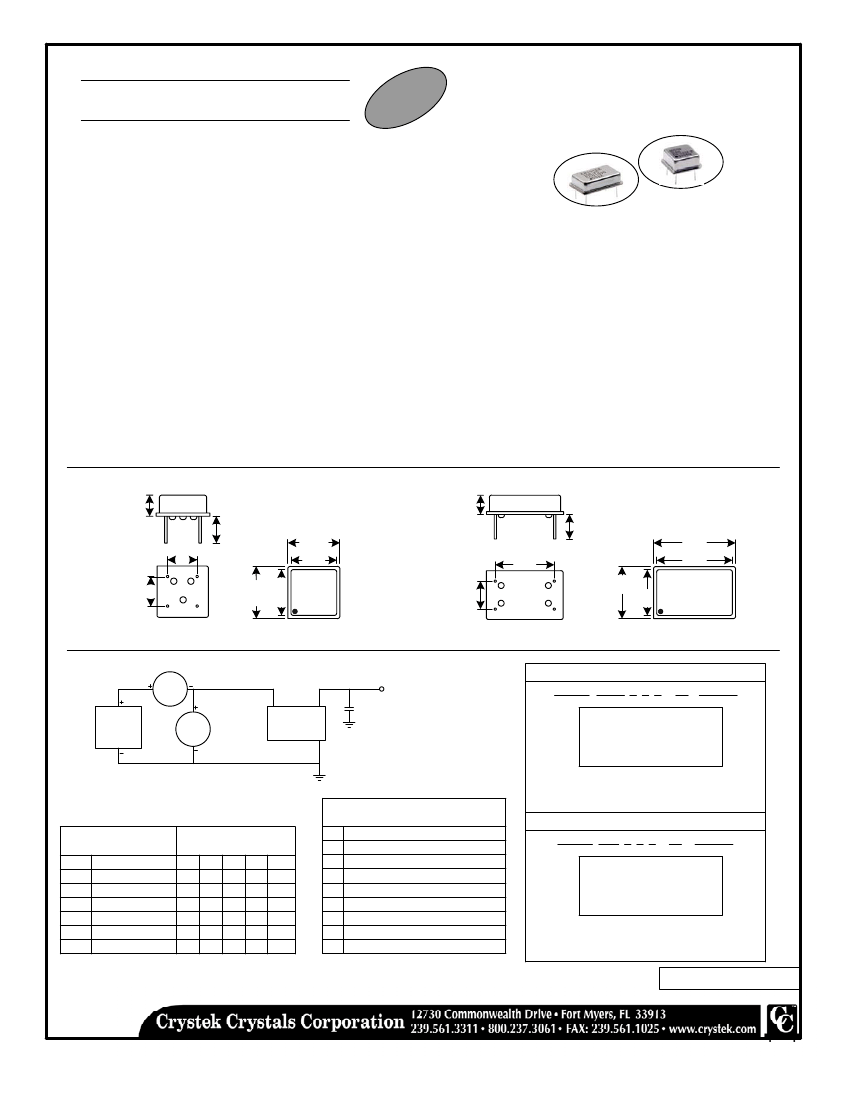

CVXO-030SBD-25-44.768: DescriptionVoltage Controlled Crystal Oscillator 8 & 14 Pin Dip, 3.3V, HCMOS; File Size115KB，1 Pages; ManufacturerCrystek

Download Datasheet View All

CVXO-030SBD-25-44.768 Overview

Voltage Controlled Crystal Oscillator 8 & 14 Pin Dip, 3.3V, HCMOS

Preview

Download Datasheet

View All

CVXO-030S & 030 Models

8 & 14 Pin Dip,

3.3V, HCMOS

Frequency Range:

Frequency Stability:

Temperature Range:

Storage:

Input Voltage:

Control Voltage:

Input Current:

Output:

Symmetry:

(Option Y)

Rise/Fall Time:

Control Range:

Output Voltage:

Load:

Linearity:

Aging:

.200

(5.08)

ree

dF S

Le oH ant

R pli

1MHz to 200MHz

±10ppm to ±100ppm

See Table 1

-55°C to 120°C

3.3V ± 0.3V

1.65V ± 1.65V

Designed to meet today's

100mA Max @ 200MHz

requirements for

HCMOS

economical solutions.

40/60% Max @ 50% Vdd

45/55% Max

4ns Typ, 10ns Max

See Table 2

(50ppm Min, 150ppm Max Std.)

**Custom Designs Available

"0" = 10% Vdd Max

"1" = 90% Vdd Min

15pF Max

± 10% Max

<3ppm 1st/yr, 1ppm every year thereafter

CVXO-030S

.200

(5.08)

Voltage Controlled

Crystal Oscillator

CVXO-030

.260

(6.60)

.600

(15.24)

.520

(13.21) .450

(11.43)

.820

(20.83)

.750

(19.05)

CRYSTEK

Part Number

Frequency

Date Code

.300

(7.62)

.300

(7.62)

.260

(6.60)

.520

(13.21)

.450

(11.43)

.520

(13.21)

.450

(11.43)

CRYSTEK

P/N

Frequency

.300

(7.62)

Dimensions inches (mm)

All dimensions are Max unless otherwise specified.

OUT

pin 8

or 14

pin 1

pin 5

or 8

O/P Load

incl Probe Cl

Crystek Part Number Guide 8 pin

CVXO-030S A A Y - 25 - 44.768

Crystek VCXO

Model

Temp. Range: (see table 1)

Control Range: (see table 2)

Symmetry: (Blank = 40/60, Y=45/55)

Stability: (see table 1, Blank = 100ppm)

Frequency in MHz: 3 or 6 decimal places

Vdd

OUT

PWR

Supply

OSC.

Cont

GND

pin 4

or 7

CONTROL RANGE OPTIONS

Operating

Temperature

0°C to 50°C

-10°C to 60°C

0°C to 70°C

-10°C to 70°C

-20°C to 70°C

-30°C to 60°C

-40°C to 85°C

Freq. Stability

(± ppm)

100

Example:

CVXO-030SAAY-25-25.000 = 3.3V VCXO, 0/50°C,

±30ppm Max Pull, 45/55, 25ppm, 25.000 MHz

CVXO-030SED-19.660800 = 3.3V VCXO, -20/70,

±100ppm Min Pull, 40/60, 100ppm, 19.660800 MHz

20ppm Typ, 30ppm Max

30ppm Min

50ppm Min

100ppm Min

150ppm Min

200ppm Min

(STD) 50ppm Min, 150ppm Max

150ppm Min, 250ppm Max

200ppm Min, 300ppm Max

Table 2

Crystek Part Number Guide for 14 pin

CVXO-030 A A Y - 25 - 44.768

Crystek VCXO

Model

Temp. Range: (see table 1)

Control Range: (see table 2)

Symmetry: (Blank = 40/60, Y=45/55)

Stability: (see table 1, Blank = 100ppm)

Frequency in MHz: 3 or 6 decimal places

Table 1

Example:

CVXO-030AAY-25-25.000 = 3.3V VCXO, 0/50°C,

±30ppm Max Pull, 45/55, 25ppm, 25.000 MHz

CVXO-030ED-19.660800 = 3.3V VCXO, -20/70,

±100ppm Min Pull, 40/60, 100ppm, 19.660800 MHz

Specifications subject to change without notice.

TD-02078 Rev.C
