D
SUBMINIATURE
CONNECTOR
Right angle through-hole plug and socket
JH
SERIES
0
1

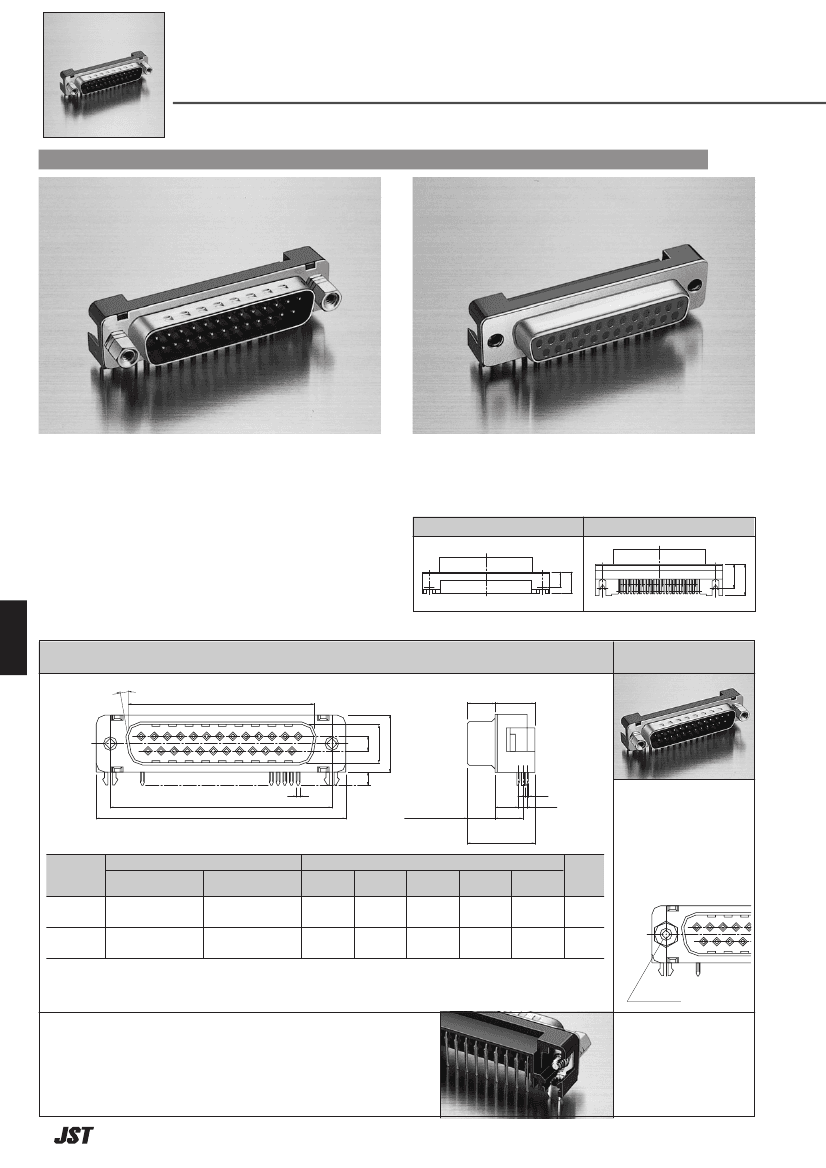

RIGHT ANGLE THROUGH-HOLE PLUG AND SOCKET
Right angle through-hole plug
(with hexagonal lock screw blocks)
Right angle through-hole socket (without lock screw blocks, but
with grounding adapters having a No.4-40UNC inch thread)
Features –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
• The depth is trimmed to 8.5mm, reducing the surface mounting area by
33% compared with our J series subminiature connectors.
• The weight of the JH series is 10% lighter than our J series.
• EJH series D subminiature connectors with noise filters are available.
JH series
J series
Right angle through-hole plug
10°
A
H
D
5.95
8.5
Type A
2.8
2.84
8.35
12.55
0.7
B
C
9-circuits：5.95
25-circuits：5.84
E
5.85
9-circuits：14.35
25-circuits：14.34
0.5
1.905
H: Height of the lock screw block (for Types A, B & J)
With hexagonal lock
screw blocks
(H: 6.3mm)
having a No.4-40UNC
inch thread
Q´ty /
box
100
Model No.
Circuits
Gold-plated
(flash) plug
JHEY-9P-1A**
JHBY-25P-1A**
Gold-plated
0.76micron
JHEY-9P-1A**14
JHBY-25P-1A**14
A
16.90
Dimensions (mm)
B
24.99
C
30.8
D
8.4
E
4.9
9
25
38.97
47.04
53.0
8.5
5.0
40
RoHS compliance
This product displays (LF)(SN) on a label.
Note: ** shows the location where a two-digit code (see the table below for codes) should be entered. For example, if a gold-
plated (flash) receptacle with hexagonal lock screw blocks having a No. 4-40UNC inch thread and with grounding adapters
having a spring lock device is required, specify the model number as JHEY-9P-1A3A.
No.4-40UNC
With grounding adapters
with a spring lock device
3A
1
9.62
12.7
D SUBMINIATURE CONNECTOR JH SERIES

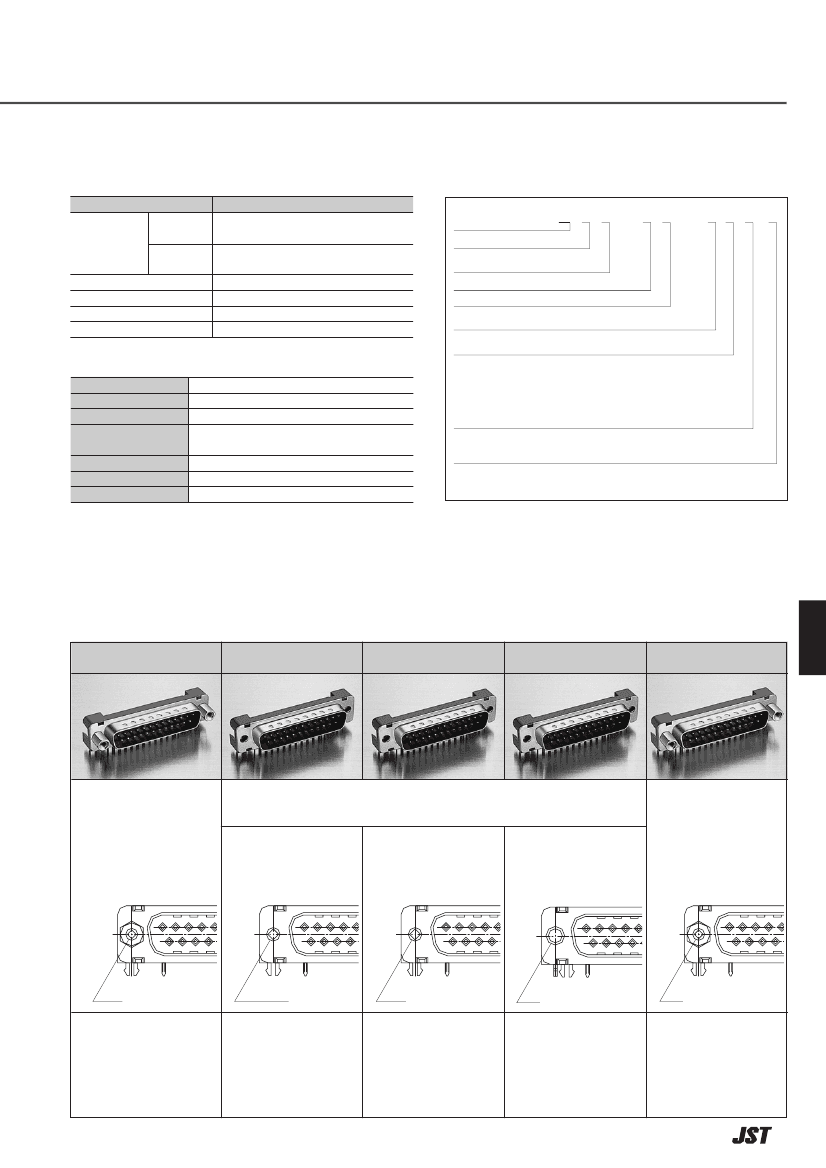

Specifications –––––––––––––––––––––––––––––––––––––––––––––––––––––
Materials
Part name
Plug
Contact
Socket
Insulator
Shell
Hexagonal lock screw block
Grounding adapter with spring lock device
Model number identification
Material and Finish
Brass, nickel-undercoated,
Mating part; gold-plated
Solder teil; tin-plated (reflow treatment)
Phosphor bronze, nickel-undercoated,
Mating part; gold-plated
Solder teil; tin-plated (reflow treatment)
Glass-filled PBT, UL94V-0, black
Steel, copper-undercoated, nickel-plated
Steel, copper-undercoated, nickel-plated
Brass, nickel-undercoated, tin/copper alloy-plated
• Series name
• Shell size: E, B
• Wire connection type:
Y ... Right angle through-hole type
• Number of circuits: 9.25
• Connector type: P ... Plug, S ... Socket
• Connector construction/dimensions:
Standard of the JH series right angle through-hole type
• Types of grounding adapter:
3 ... With grounding adapters having a spring lock device
• Type of lock screw block:
A ... With hexagonal lock screw blocks having a No. 4-40UNC inch thread
B ... With hexagonal lock screw blocks having an M2.6 thread
F ... Without lock screw blocks, but with grounding adapters having a No.4-40UNC inch thread
G ... Without lock screw blocks, but with grounding adapters having an M2.6 thread
H ... Without lock screw blocks, but with grounding adapters having an M3 thread
J ... With hexagonal lock screw blocks having an M3 thread
• Finish of mating part
Blank ... Gold-plated (flash)
13 ... 0.4micron gold-plated
12 ... 0.2micron gold-plated
14 ... 0.76micron gold-plated
JH B Y
-
25 P
-
1A 3 F
14
Characteristics
Current rating
Voltage rating
Temperature range
Contact resistance
Insulation resistance
Withstanding voltage
Applicable PC board thickness
3A AC, DC
250V AC, DC
-
40˚C to
+
85˚C (including temperature rise in applying electrical current)
Initial value/15mΩ max.
After environmental testing/30mΩ max.
5,000MΩ min.
1,000V AC/minute
1.6mm
Note: Contact JST for special plating requirements.
Note: Contact JST for details.
Standards ––––––––––––––––––––––––––––––––––––––––––––––––––––––––
0
Recognized E60389
1
Certified LR20812

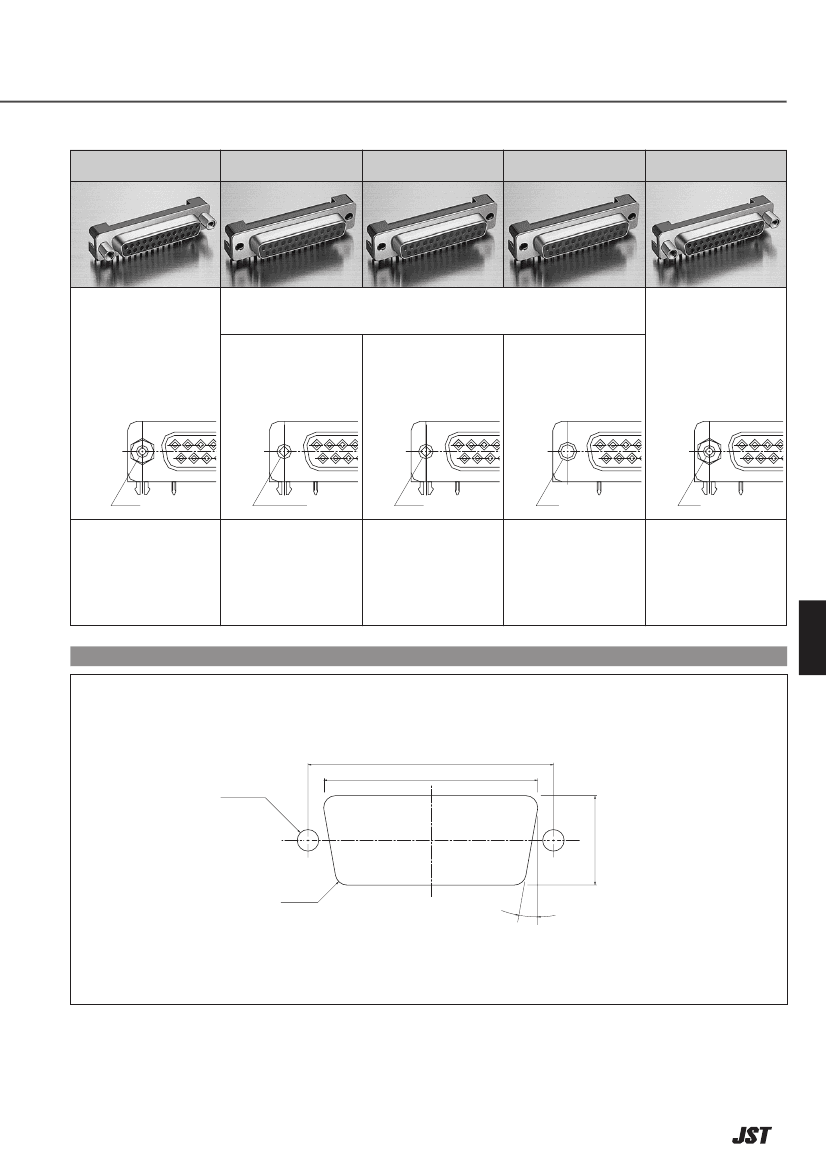

Type F
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Type B
Type G
Type H
Type J
With hexagonal lock
screw blocks
(H: 6.3mm)
having an M2.6 thread
Without lock screw blocks

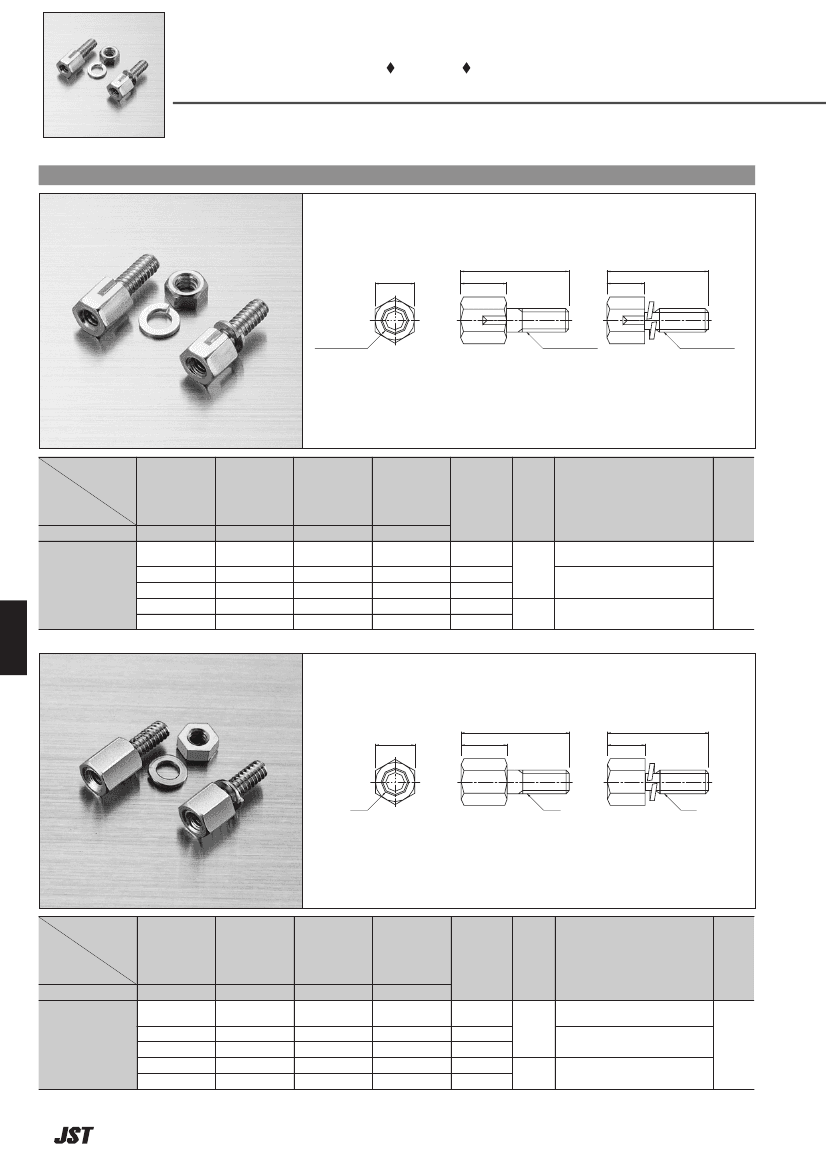

F, G, H: Grounding adapters have a thread (*1) for securing separately-
purchased lock screw blocks (*2)
*1: No.4-40UNC inch
thread
*2: Model number
HFS-4S-( )1W(M)
*1: M2.6 thread
*2: Model number
HFS-2.6S-( )1W(M)
*1: M3 thread
*2: Model number
HFS-3S-( )1W(M)
With hexagonal lock
screw blocks
(H: 6.3mm)
having an M3 thread
M2.6
No.4-40UNC
M2.6
M3
M3
3B
3F
3G
3H
3J
2
D SUBMINIATURE CONNECTOR JH SERIES

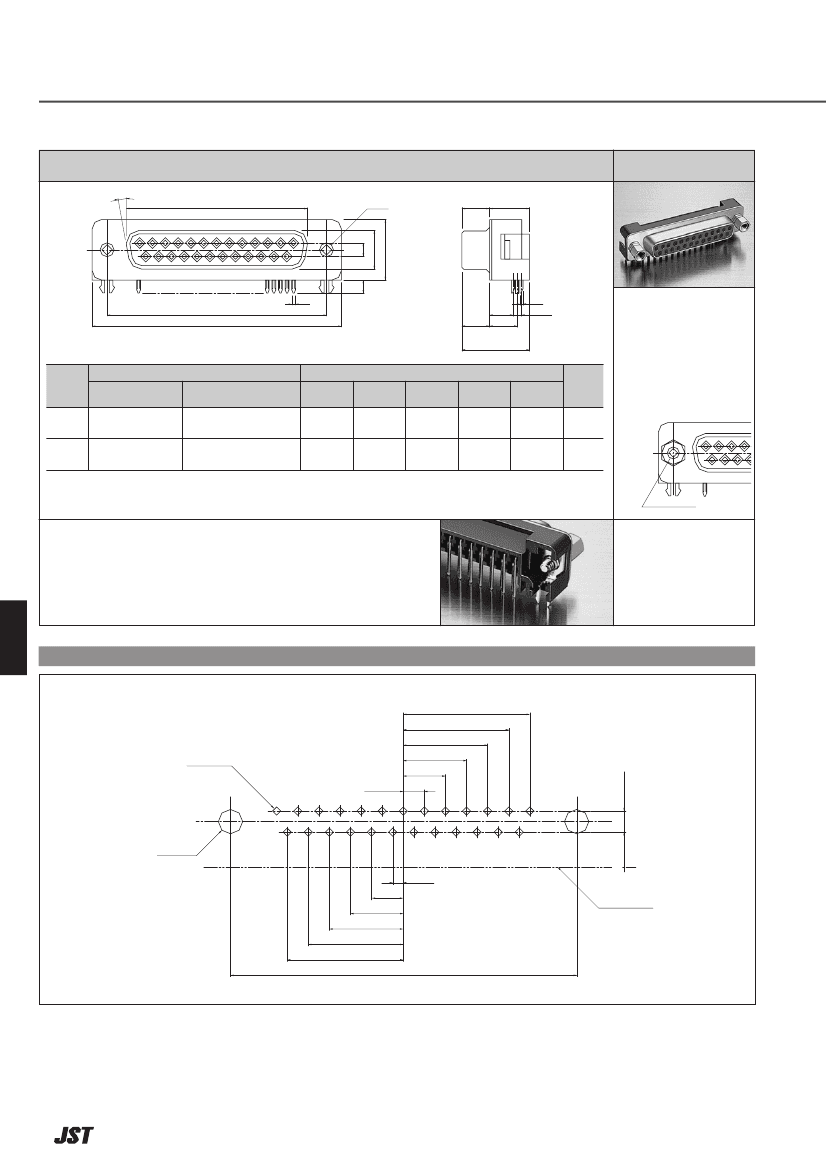

Right angle through-hole socket
10°
A
φ
3.10
Type A
H
D
2.8
2.84
7.9
12.55
0.7
B
C
6.18
E
5.85
0.5
1.905
9-circuits：14.58
25-circuits：14.68
H: Height of the lock screw block (for Types A, B & J)
With hexagonal lock
screw blocks
(H: 6.3mm)
having a No.4-40UNC
inch thread
Q´ty /
box
100
Model No.
Circuits
Gold-plated (flash)
socket
JHEY-9S-1A**
JHBY-25S-1A**
Gold-plated [0.76micron]
socket
JHEY-9S-1A**14
JHBY-25S-1A**14
A
16.34
38.38
Dimensions (mm)
B
24.99
47.04
C
30.8
53.0
D
8.4
8.5
E
4.9
5.0
9
25
40
RoHS compliance
This product displays (LF)(SN) on a label.
Note: ** shows the location where a two-digit code (see the table below for codes) should be entered. For example, if a 9-circuit
gold-plated (flash) socket with hexagonal lock screw blocks having a No. 4-40UNC inch thread and with grounding
adapters having a spring lock device is required, specify the model number as JHEY-9S-1A3A.
No.4-40UNC
With grounding adapters
with a spring lock device
3A
PC board layout (viewed from component side)
16.56
±0.05
13.82
±0.05
11.05
±0.05
0.1
25-φ1.0
＋ 0
8.28
±0.05
1.905
±0.05
PC board edge
5.0max.
1.4
±0.05
4.14
±0.05
6.91
±0.05
9.68
±0.05
12.42
±0.05
15.19
±0.05
47.04
±0.5
5.54
±0.05
2.77
±0.05
2-φ3.2
±0.1
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method.
The dimensions above should serve as a guideline. Contact JST for details.
